CARBURETOR ASSY (KZ1000-B3)

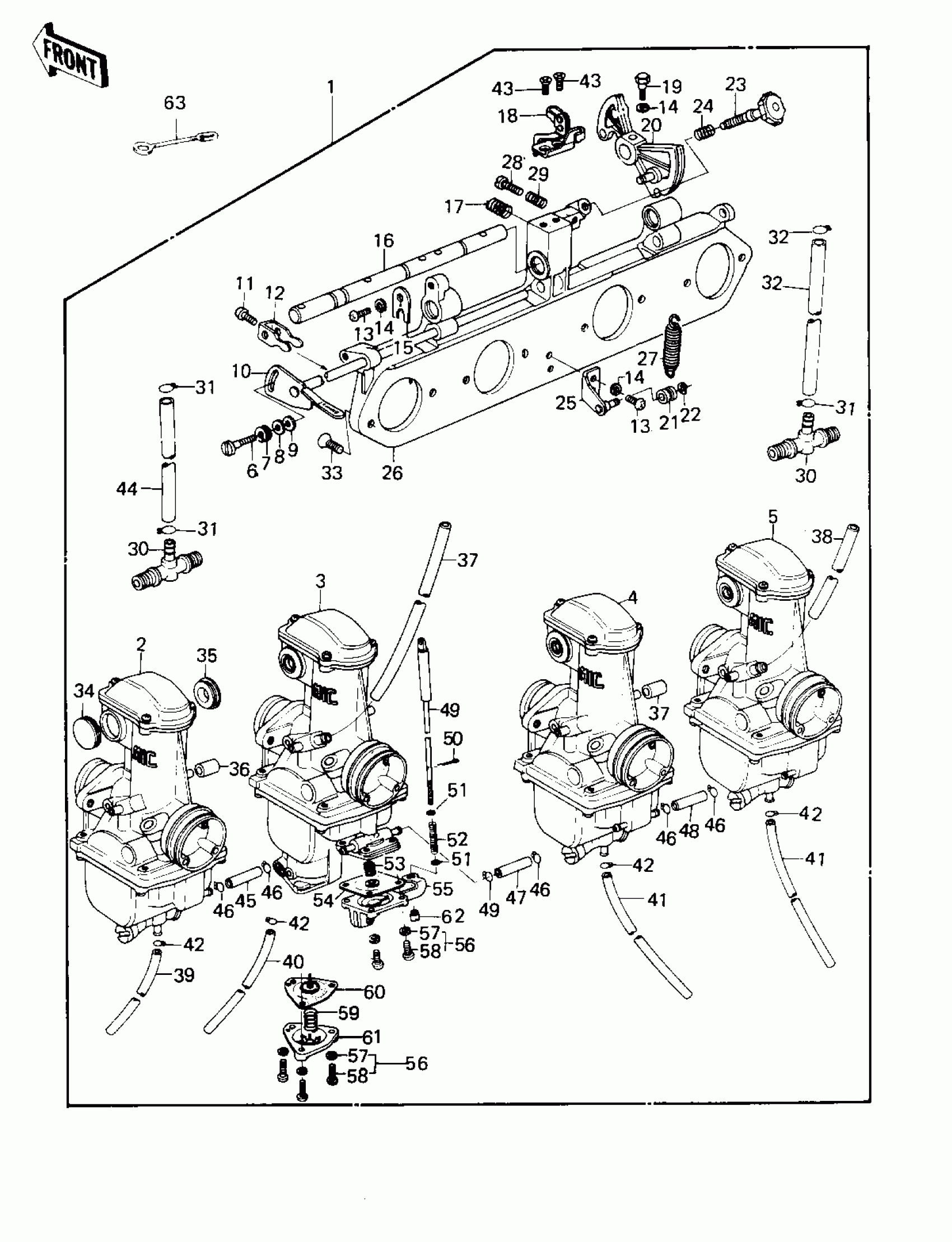

Kawasaki KZ1000 LTD CARBURETOR ASSY (KZ1000-B3) Diagram
#
1
CARBURETOR ASSY
16001-1089
$1,138.03
2
CARBURETOR,L.H,OUT
16001-1127
$433.21
3 & 53
CARBURETOR,L.H,INSIDE
16001-1128
$414.00
4
CARBURETOR,R.H,INSIDE
16001-1129
$433.21
5
CARBURETOR,R.H,OUT
16001-1130
$433.21
6
SCREW
16046-005
Unavailable
7
SPRING,F
16040-009
Unavailable
8
WASHER PLAIN 5MM
410B0500
$0.46
9
WASHER,PLAIN,NYLON
16039-019
Unavailable
10
SHAFT,STARTER PLUNGE
16041-021
$54.54
11
SCREW,PAN HEAD,5X7
16046-007
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
13
SCREW-PAN-CROS
220B0514
$4.04
14
WASHER SPRING 5MM
461F0500
$0.69
15
PLATE,SHAFT STOPPER
16055-012
Unavailable
16
SHAFT,CARB CONNECTIO
16041-017
Unavailable
17
SPRING,CABLE PULLY
16040-022
Unavailable
18
BRACKET,THROTTLE CAB
16077-017
$59.26
19
BOLT,HEX HEAD,5X14
16067-006
Unavailable
20
PULLEY,THROTTLE CABLE
13236-1014
Unavailable
21
RING
16073-016
Unavailable
22
CIRCLIP 3MM
482K3000
$1.78
23
SCREW,THROTTLE STOP
16021-1010
$32.19
24
SPRING,THROTTLE STOP
16022-017
Unavailable
25
BRACKET,THROTTLE CABL
16077-016
$15.67
26
HOLDER,CARBURETOR
16065-049
$114.50
27
SPRING,THROTTLE PULL
92081-1028
Unavailable
28
SCREW
16021-032
$6.77
29
SPRING,THROTTLE ADJST
16022-010
Unavailable
30
JOINT,FUEL PIPE
16046-002
$49.81
31
CLAMP,CARB CONECT HOS
92037-056
$6.60
32
HOSE,FUEL,6.5OX11.5O
92059-1026
Unavailable
33
SCREW,6X14
16033-029
Unavailable
33
SCREW-CSK-CROS,6X14
221B0614
Unavailable
34
CAP,RUBBER
16039-042
Unavailable
35
GROMMET,CARBURETOR
92071-104
Unavailable
36
HOSE,6X11.5X16
92059-141
$17.97
37
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
38
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
39
HOSE,FUEL OVERFLOW
92059-147
Unavailable
40
HOSE,FUEL OVERFLOW
92059-134
Unavailable
41
HOSE,FUEL OVERFLOW
92059-134
Unavailable
42
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
43
SCREW CNTSNK HD 5X10
221B0510A
$3.67
44
HOSE,6.50X11.50X100
92059-1059
$35.79
45
TUBE,3.5X7.5X47.5
92059-1072
$14.00
46
CLAMP,TUBE
92037-1124
$6.11
47
TUBE,3.5X7.5X64.5
92059-1071
$33.46
48
TUBE,3.5X7.5X47.5
92059-1072
$14.00
49 & 5
ROD ASSY,PUMP
46102-1007
Unavailable
50
COTTER PIN,1.0X6
550D1006
$3.19
51
WASHER,PUMP ROD
92022-1138
Unavailable
52
SPRING,PUMP ROD
92081-1138
Unavailable
53
SPRING,PUMP DIAPHRAGM
92081-1139
Unavailable
54
DIAPHRAGM,PUMP
43028-1012
Unavailable
55
COVER ASSY,PUMP
14025-1139
Unavailable
56
SCREW-PAN-WS-CROS
223B0414
$1.52
57
WASHER SPRING 4MM
461F0400
Unavailable
58
SCREW-PAN-CROS
220B0414
$4.28
59
SPRING,SENSOR DIAPHRA
92081-1137
$2.63
60
DIAPHRAGM,SENSOR
43028-1010
$147.36
61
COVER,SENSOR
14025-1121
Unavailable
62
NUT,PUMP ROD
92015-1075
Unavailable
63
CLAMP,OVER FLOW PIPE
92037-134
$11.50
