CARBURETOR ASSY (KZ1000-B2)

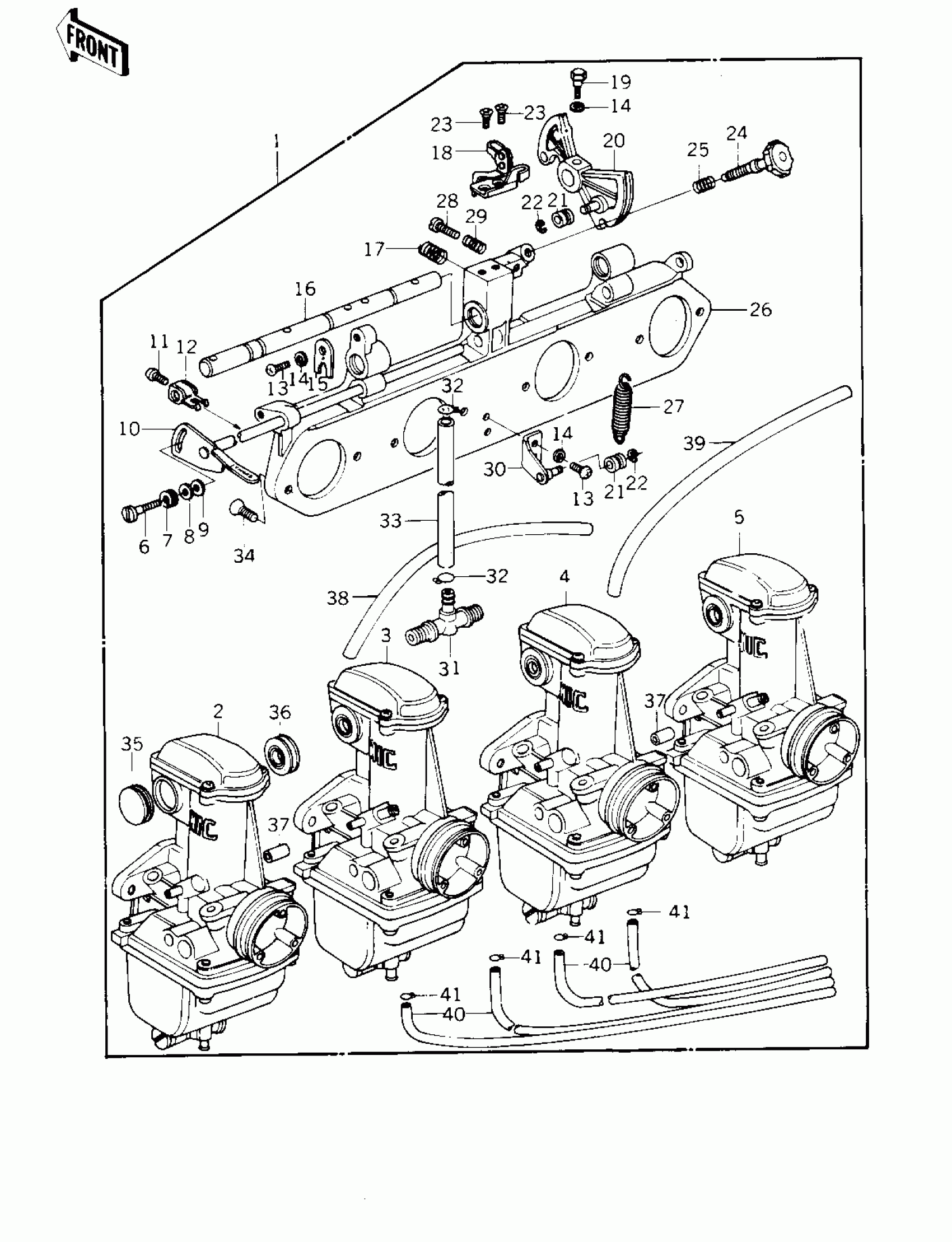

Kawasaki KZ1000 LTD CARBURETOR ASSY (KZ1000-B2) Diagram
#
1
CARBURETOR,ASSY
16001-1017
$1,175.93
2
CARBURETOR,L.H OUTSID
16001-1034
$343.11
3
CARBURETOR,L.H INSIDE
16001-1035
$349.30
4
CARBURETOR,R.H INSIDE
16001-1036
$343.11
5
CARBURETOR,L.H OUTSID
16001-1037
$349.30
6
SCREW
16046-005
Unavailable
7
SPRING,F
16040-009
Unavailable
8
WASHER PLAIN 5MM
410B0500
$0.46
9
WASHER,PLAIN,NYLON
16039-019
Unavailable
10
SHAFT,STARTER PLUNGE
16041-021
$54.54
11
SCREW,PAN HEAD,5X7
16046-007
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
13
SCREW-PAN-CROS
220B0514
$4.04
14
WASHER SPRING 5MM
461F0500
$0.69
15
PLATE,SHAFT STOPPER
16055-012
Unavailable
16
SHAFT,CARB CONNECTIO
16041-017
Unavailable
17
SPRING,CABLE PULLY
16040-022
Unavailable
18
BRACKET,THROTTLE CAB
16077-017
$59.26
19
BOLT,HEX HEAD,5X14
16067-006
Unavailable
20
PULLEY,THROTTLE CABLE
16068-015
$66.67
21
RING
16073-016
Unavailable
22
CIRCLIP 3MM
482K3000
$1.78
23
SCREW CNTSNK HD 5X10
221B0510A
$3.67
24
SCREW,THROTTLE STOP
16021-1010
$32.19
25
SPRING,THROTTLE STOP
16022-017
Unavailable
26
HOLDER,CARBURETOR
16065-049
$114.50
27
SPRING,THROTTLE PULL
92081-1028
Unavailable
28
SCREW
16021-032
$6.77
29
SPRING,THROTTLE ADJST
16022-010
Unavailable
30
BRACKET,THROTTLE CABL
16077-016
$15.67
31
JOINT,FUEL PIPE
16046-002
$49.81
32
CLAMP,CARB CONECT HOS
92037-056
$6.60
33
HOSE,FUEL
92059-144
$97.88
34
SCREW,6X14
16033-029
Unavailable
35
CAP,RUBBER
16039-042
Unavailable
36
GROMMET,CARBURETOR
92071-104
Unavailable
37
HOSE,6X11.5X16
92059-141
$17.97
38
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
39
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
40
HOSE,FUEL OVERFLOW
92059-147
Unavailable
41
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
