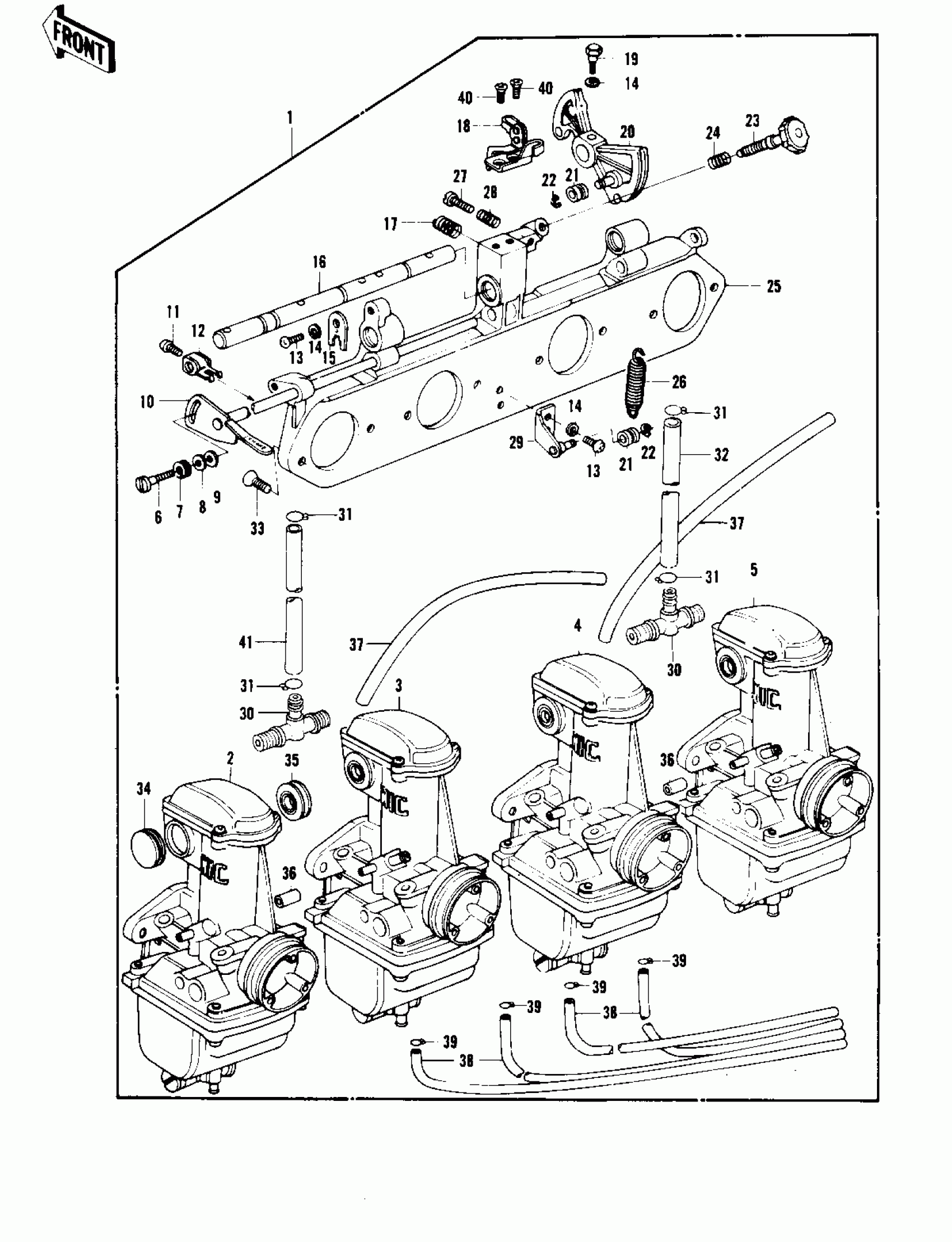

Kawasaki KZ1000 LTD CARBURETOR ASSY (KZ1000-B1) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1055

$1,146.15

2

CARBURETOR,L.H,OUTSI

16001-1075

$434.13

3

CARBURETOR,L.H INSID

16001-1076

$433.32

4

CARBURETOR,R.H INN

16001-1095

$488.37

5

CARBURETOR,R.H OUTSI

16001-1078

$433.32

6

SCREW

16046-005

Unavailable

7

SPRING,F

16040-009

Unavailable

8

WASHER PLAIN 5MM

410B0500

$0.46

9

WASHER,PLAIN,NYLON

16039-019

Unavailable

10

SHAFT,STARTER PLUNGE

16041-021

$54.54

11

SCREW,PAN HEAD,5X7

16046-007

Unavailable

12

LEVER,STARTER PLUNGE

13168-1026

Unavailable

13

SCREW-PAN-CROS

220B0514

$4.04

14

WASHER SPRING 5MM

461F0500

$0.69

15

PLATE,SHAFT STOPPER

16055-012

Unavailable

16

SHAFT,CARB CONNECTIO

16041-017

Unavailable

17

SPRING,CABLE PULLY

16040-022

Unavailable

18

BRACKET,THROTTLE CAB

16077-017

$59.26

19

BOLT,HEX HEAD,5X14

16067-006

Unavailable

20

PULLEY,THROTTLE CABLE

16068-015

$66.67

21

RING

16073-016

Unavailable

22

CIRCLIP 3MM

482K3000

$1.78

23

SCREW,THROTTLE STOP

16021-1010

$32.19

24

SPRING,THROTTLE STOP

16022-017

Unavailable

25

HOLDER,CARBURETOR

16065-049

$114.50

26

SPRING,THROTTLE PULL

92081-1028

Unavailable

27

SCREW

16021-032

$6.77

28

SPRING,THROTTLE ADJST

16022-010

Unavailable

29

BRACKET,THROTTLE CABL

16077-016

$15.67

30

JOINT,FUEL PIPE

16046-002

$49.81

31

CLAMP,CARB CONECT HOS

92037-056

$6.60

32

HOSE,FUEL

92059-144

$97.88

33

CAP,RUBBER

16039-042

Unavailable

35

GROMMET,CARBURETOR

92071-104

Unavailable

36

HOSE,6X11.5X16

92059-141

$17.97

37

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

38

HOSE,FUEL OVERFLOW

92059-147

Unavailable

39

CLAMP,OVERFLOW HOSE

92037-173

Unavailable

40

SCREW CNTSNK HD 5X10

221B0510A

$3.67

41

HOSE,6.50X11.50X100

92059-1059

$35.79
