CAMSHAFTS/VALVES ('77-'78 B1/B2)

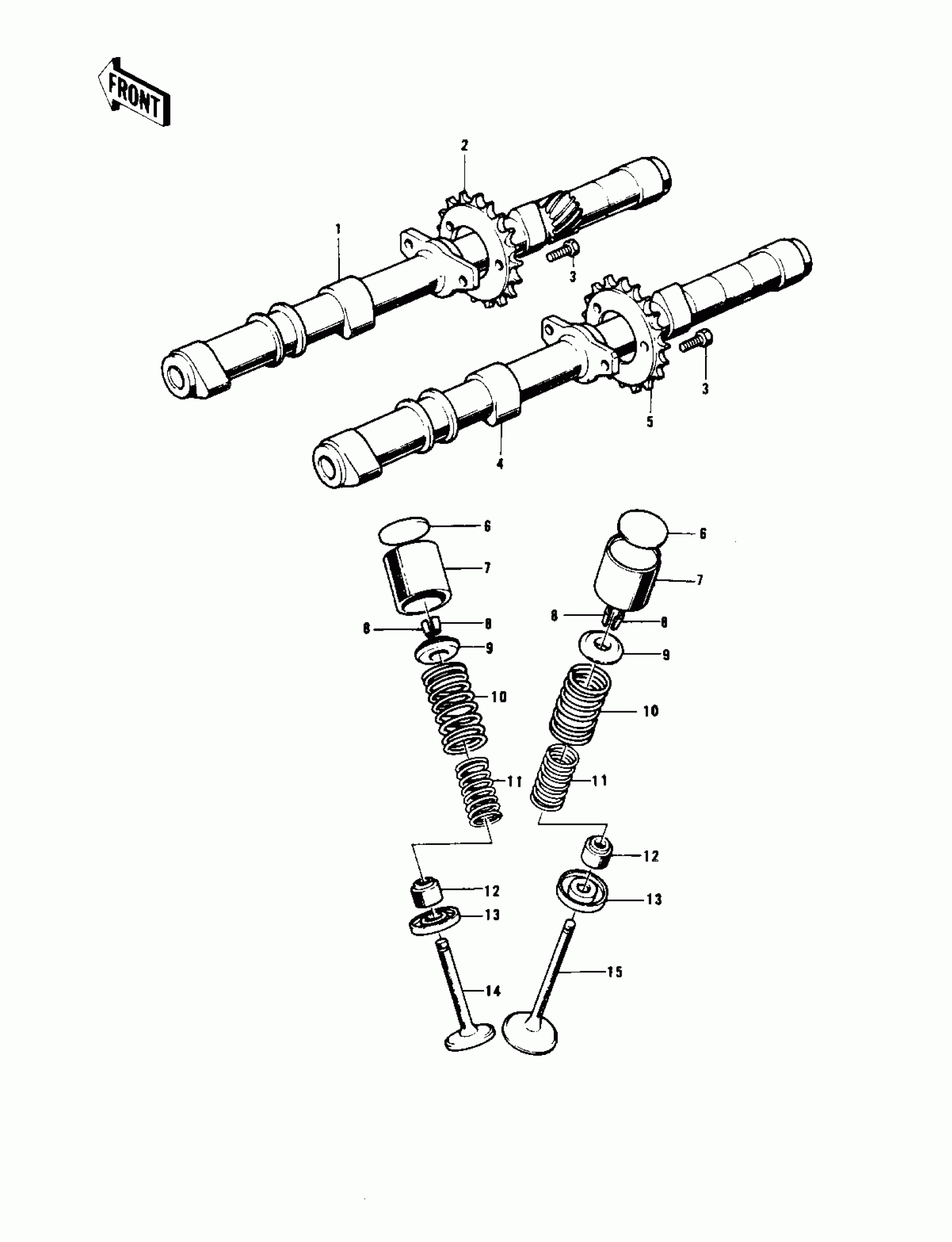

Kawasaki KZ1000 LTD CAMSHAFTS/VALVES ('77-'78 B1/B2) Diagram
#
1
CAMSHAFT,EXHAUST
12044-015
Unavailable
2
SPROCKET,CAM SHAFT EX
12046-002
Unavailable
3
BOLT,FLANGED,6X11
92003-208
$4.31
4
CAMSHAFT,INLET
12044-014
Unavailable
5
SPROCKET,CAM SHAFT IN
12046-001
Unavailable
6
SHIM,T=2.00
12037-001
Unavailable
6
SHIM,T=2.05
12037-002
Unavailable
6
SHIM,T=2.10
12037-003
Unavailable
6
SHIM,T=2.15
12037-004
Unavailable
6
SHIM,T=2.20
12037-005
Unavailable
6
SHIM,T=2.25
12037-006
Unavailable
6
SHIM,T=2.30
12037-007
Unavailable
6
SHIM,T=2.35
12037-008
Unavailable
6
SHIM,T=2.40
12037-009
Unavailable
6
SHIM,T=2.45
12037-010
Unavailable
6
SHIM,T=2.50
12037-011
Unavailable
6
SHIM,T=2.55
12037-012
Unavailable
6
SHIM,T=2.60
12037-013
Unavailable
6
SHIM,T=2.65
12037-014
Unavailable
6
SHIM,T=2.70
12037-015
Unavailable
6
SHIM,T=2.75
12037-016
Unavailable
6
SHIM,T=2.80
12037-017
Unavailable
6
SHIM,T=2.85
12037-018
Unavailable
6
SHIM,T=2.90
12037-019
Unavailable
6
SHIM,T=2.95
12037-020
Unavailable
6
SHIM,T=3.00
12037-021
Unavailable
6
SHIM,T=3.05
12037-022
Unavailable
6
SHIM,T=3.10
12037-023
Unavailable
6
SHIM,T=3.15
12037-024
Unavailable
6
SHIM,T=3.20
12037-025
Unavailable
6
TAPPET
12032-005
Unavailable
6
COLLET,RETAINER
12011-004
$5.46
6
RETAINER-VALVE SPRING
12009-005
$13.08
6
SPRING-ENGINE VALVE,OUTER
12007-012
$25.90
6
SPRING-ENGINE VALVE,INNER
12007-011
Unavailable
6
SEAL-OIL,RV37129.5
92049-016
$18.35
6
SEAT-SPRING,VALVE
16007-1024
$6.51
6
VALVE,EXHAUST
12005-1009
$160.29
6
VALVE,INTAKE
12004-1010
$110.39
