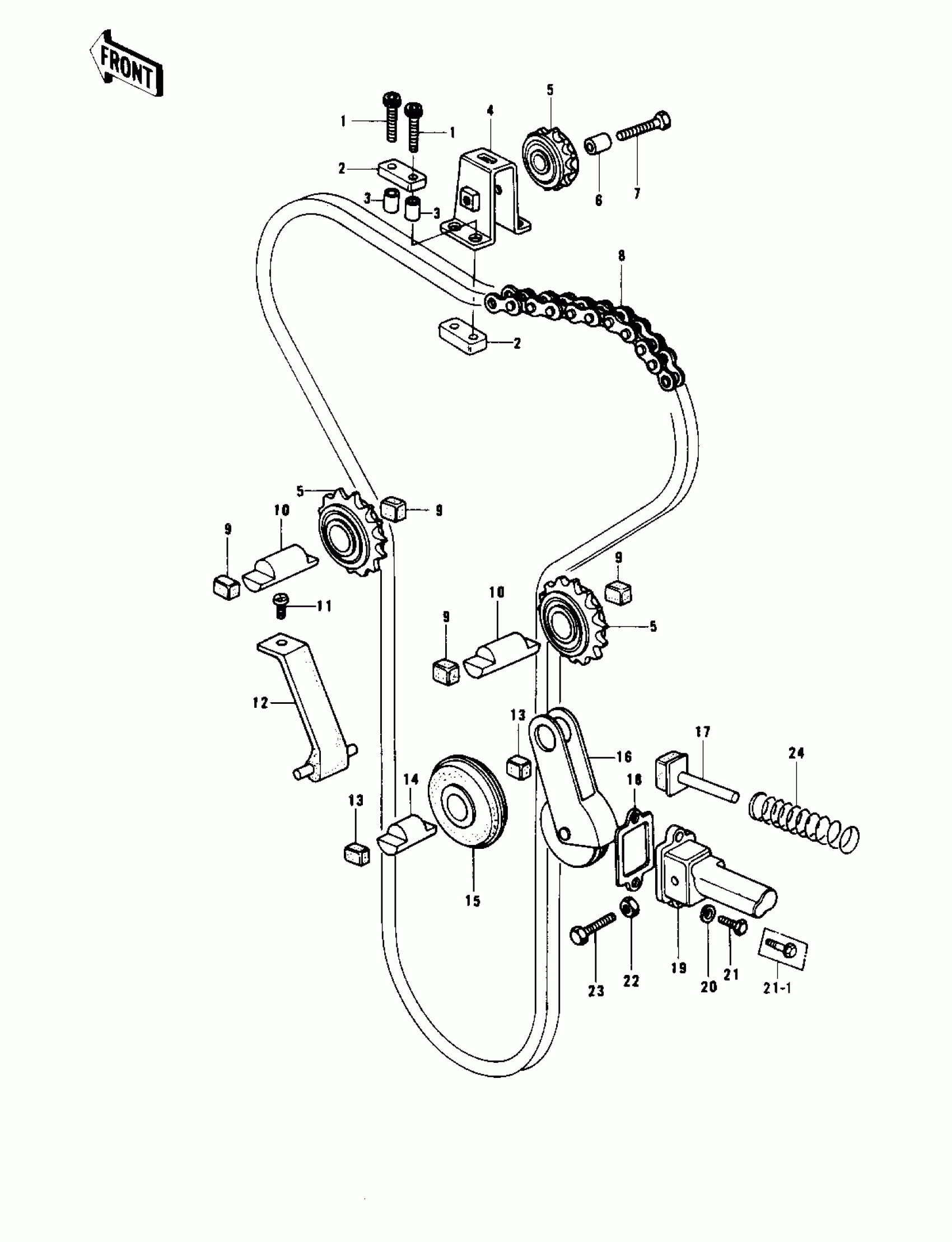

Kawasaki KZ1000 LTD CAM CHAIN/TENSIONER ('77-'78 B1/B2) Diagram

#

Description
Price

1

BOLT,ALLEN,6X32

120Q0632

Unavailable

2

DAMPER RUBBER

92075-289

Unavailable

3

COLLAR,6.2X8.1X15

92027-1079

$3.96

4

IDLER ASSY,CAM CHAIN

12053-1016

$323.46

5

IDLER ASSY

12057-002

$323.46

6

COLLAR,IDLER

92027-261

Unavailable

7

BOLT,FLANGED,6X25

130G0625

$1.17

8

CHAIN,CAM SHAFT

21070-003

$479.96

9

DAMPER,IDLER SHAFT

92075-232

$5.72

10

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$32.94

11

SCREW PAN HEAD 6X10

220B0610

$3.14

12

GUIDE,CAM CHAIN

12053-019

$48.05

13

DAMPER RUBBER

92075-123

$9.51

14

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$14.37

15

ROLLER,CAM CHAIN GUI

12055-002

$48.50

16

TENSIONER ASSY,CHAIN

12048-001

$142.80

17

PUSH ROD,CAM CHAIN

12054-001

Unavailable

18

GASKET,TENSIONER

11009-1980

$5.54

19

HOLDER,TENSIONER

12049-1003

Unavailable

20

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

21

BOLT-UPSET,6X20

112G0620

$2.12

21-1

BOLT-FLANGED,6X30

130G0630

$1.42

22

NUT 6MM

311B0600

$0.93

23

BOLT,TENSIONER ADJUS

92003-093

Unavailable

24

SPRING,TENSTIONER

92081-107

$16.71
