Partiron

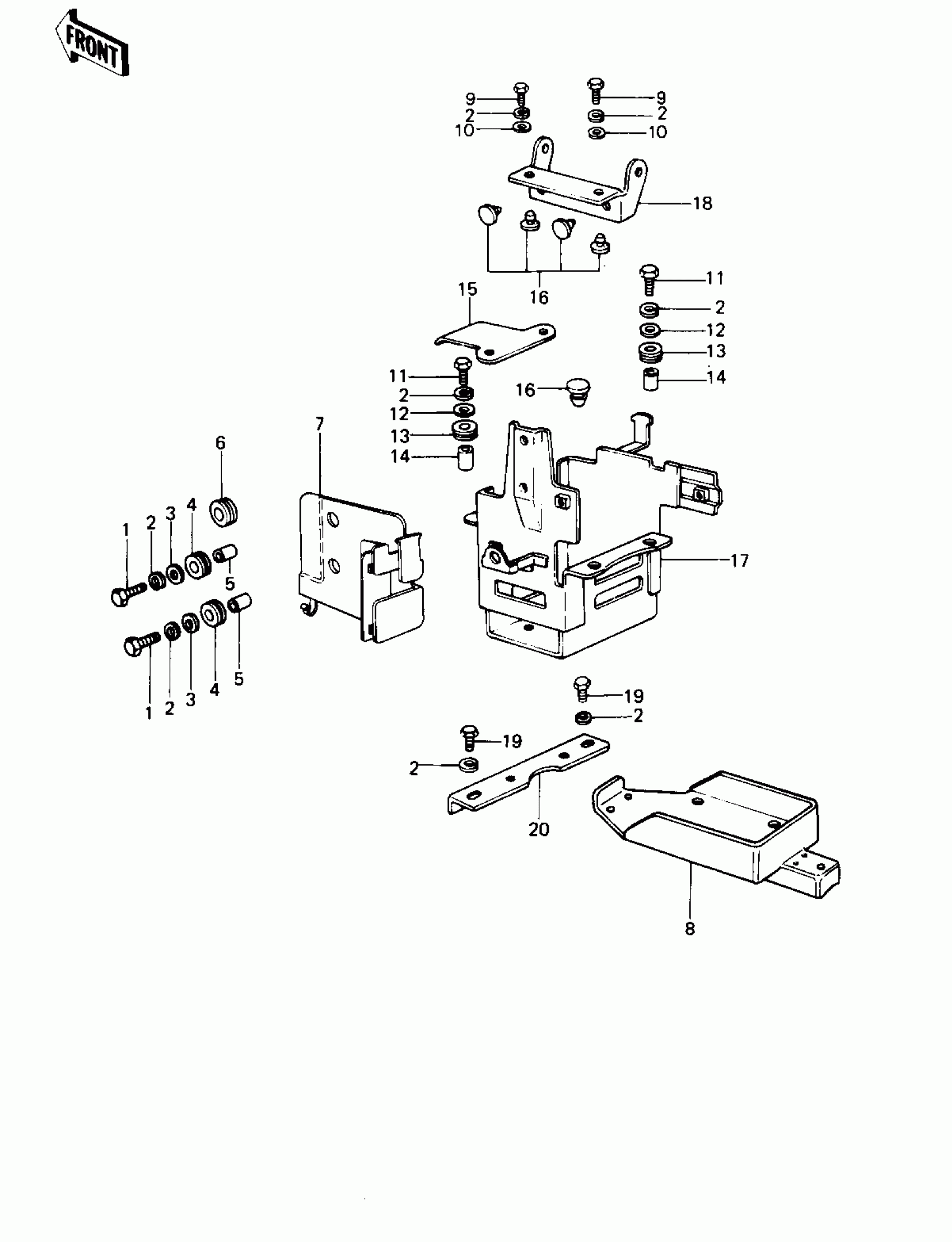

Kawasaki KZ1000 LTD BATTERY CASE/TOOL CASE (KZ1000-B3) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

WASHER,6.5X22X1.6

92022-237

$2.99

4

DAMPER RUBBER

92075-149

Unavailable

5

COLLAR

92027-165

$5.42

6

DAMPER RUBBER

92075-051

$2.99

7

BRACKET,BASE

11034-1261

Unavailable

8

CASE,TOOL

32098-1001

$27.63

9

BOLT-UPSET,6X12

112G0612

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

BOLT-UPSET

112G0630

Unavailable

12

WASHER,6.5X16X2

92022-1565

$2.99

13

DAMPER RUBBER,BTT CA

92075-146

$3.14

14

COLLAR,6.8X10X14.5

92027-156

$3.81

15

STAY,AIR CLEANER

32105-007

$14.95

16

DAMPER,RUBBER

92075-078

$3.35

17

CASE,BATTERY

32097-044

$49.59

18

BAND,BATTERY

32100-100

$24.78

19

BOLT-UPSET,6X16

112G0616

Unavailable

20

PLATE

32113-004

$9.86
