Description

Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

WASHER SPRING 6MM

461F0600

$0.69

3

WASHER,6.5X22X1.6

92022-237

$3.92

4

DAMPER RUBBER

92075-149

$11.03

5

COLLAR

92027-165

$5.96

6

DAMPER RUBBER

92075-051

$3.92

7

BRACKET,BASE

32129-013

$27.49

8

DAMPER

92075-161

$4.69

9

WASHER PLAIN 8MM

410B0800

$0.93

10

BOLT,HEAX HEAD,6X14

92001-115

$9.81

11

BOLT-UPSET

112G0630

$1.36

12

WASHER,6.5X16X2

92022-1565

$3.92

13

DAMPER RUBBER,BTT CA

92075-146

$4.03

14

COLLAR,6.8X10X14.5

92027-156

$5.00

15

STAY,AIR CLEANER

32105-007

$15.95

16

DAMPER,RUBBER

92075-078

$4.39

17

CASE,BATTERY

32097-044

$49.35

18

BAND,BATTERY

32100-100

$26.41

19

BOLT HEX HEAD 6X16

110B0616

$1.10

20

PLATE

32113-004

$10.40

21

CASE,TOOL

32098-1001

$29.95

22

BOLT-UPSET,6X12

112G0612

$1.45

23

WASHER PLAIN 6MM

411B0600

$2.84

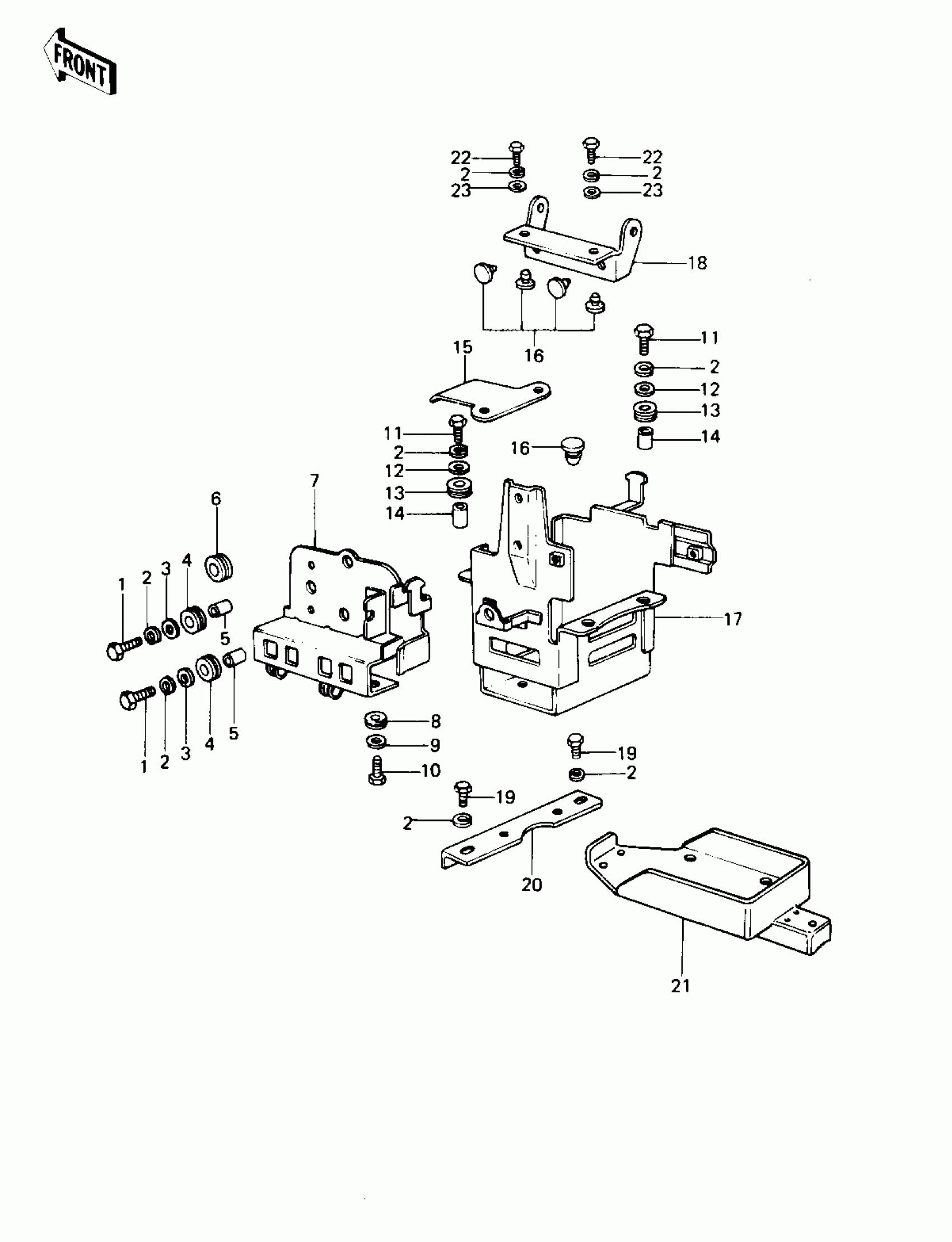

Kawasaki KZ1000 LTD BATTERY CASE/TOOL CASE ('77-'78 B1/B2) Diagram

BOLT-UPSET,6X20

WASHER SPRING 6MM

WASHER,6.5X22X1.6

DAMPER RUBBER

COLLAR

DAMPER RUBBER

BRACKET,BASE

DAMPER

WASHER PLAIN 8MM

BOLT,HEAX HEAD,6X14

BOLT-UPSET

WASHER,6.5X16X2

DAMPER RUBBER,BTT CA

COLLAR,6.8X10X14.5

STAY,AIR CLEANER

DAMPER,RUBBER

CASE,BATTERY

BAND,BATTERY

BOLT HEX HEAD 6X16

PLATE

CASE,TOOL

BOLT-UPSET,6X12

WASHER PLAIN 6MM
