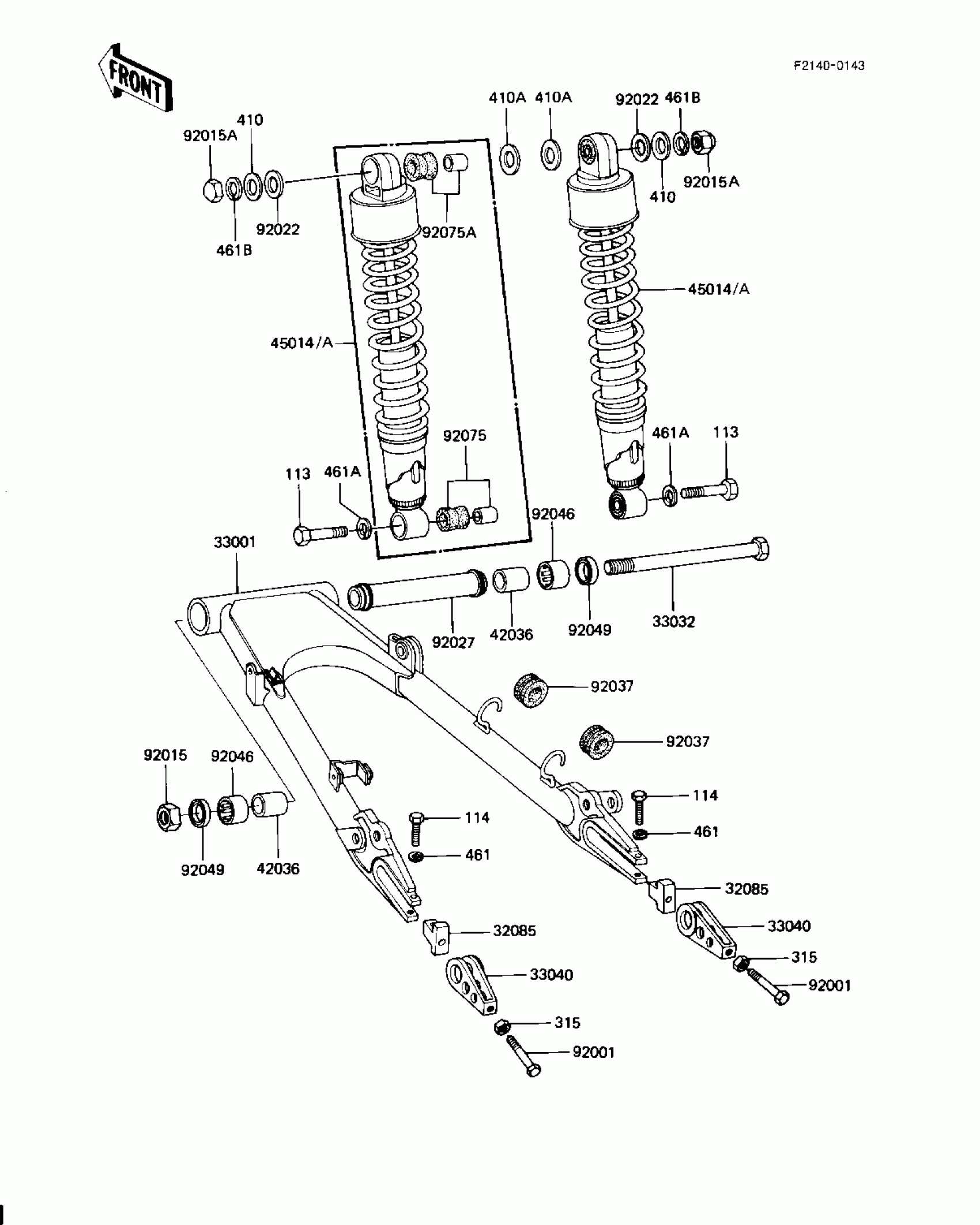

Kawasaki KZ1000-J3 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
32085
STOPPER,CHAIN ADJUSTER
33044-001
$40.02
33001
ARM-COMP-SWING
33001-1071
$387.96
33032
SHAFT-SWING ARM
33032-036
$64.39
33040
ADJUSTER-CHAIN
33040-066
$30.91
42036
SLEEVE,SWING ARM
42036-1040
$28.97
45014A
SHOCKABSORBER,RR (Canada)
45014-1209
Unavailable
92001
BOLT,10X50
92001-143
$19.74
92015
NUT-SELF LOCKING
92019-012
$25.70
92015A
NUT,CAP,12MM
92020-014
$9.45
92022
WASHER,12.4X28X2.3
92022-1239
$3.86
92027
COLLAR,SWING ARM
92027-1561
$76.24
92037
GROMMET,HOSE CLAMP
43064-007
$5.52
92046
BEARING-NEEDLE,BHTM2530-1
92046-1035
$26.30
92049
SEAL-OIL,MH25334
92049-1060
$8.86
92075
DAMPER,SHOCKABSORBER,LWR
45017-019
$19.66
92075A
DAMPER,SHOCKABSORBER
92075-1141
$14.90
113
BOLT HEX HEAD 10X35
113N1035
$9.14
114
BOLT,8X40
115G0840
$6.00
315
NUT-HEX-FINE,10MM
315B1000
$0.58
410
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
410A
WASHER-PLAIN-SMALL,14MM
410B1400
$2.01
461
WASHER SPRING 8MM
461F0800
$0.40
461A
WASHER SPRING 10MM
461F1000
$0.67
461B
WASHER-SPRING,12MM
461F1200
$0.96
