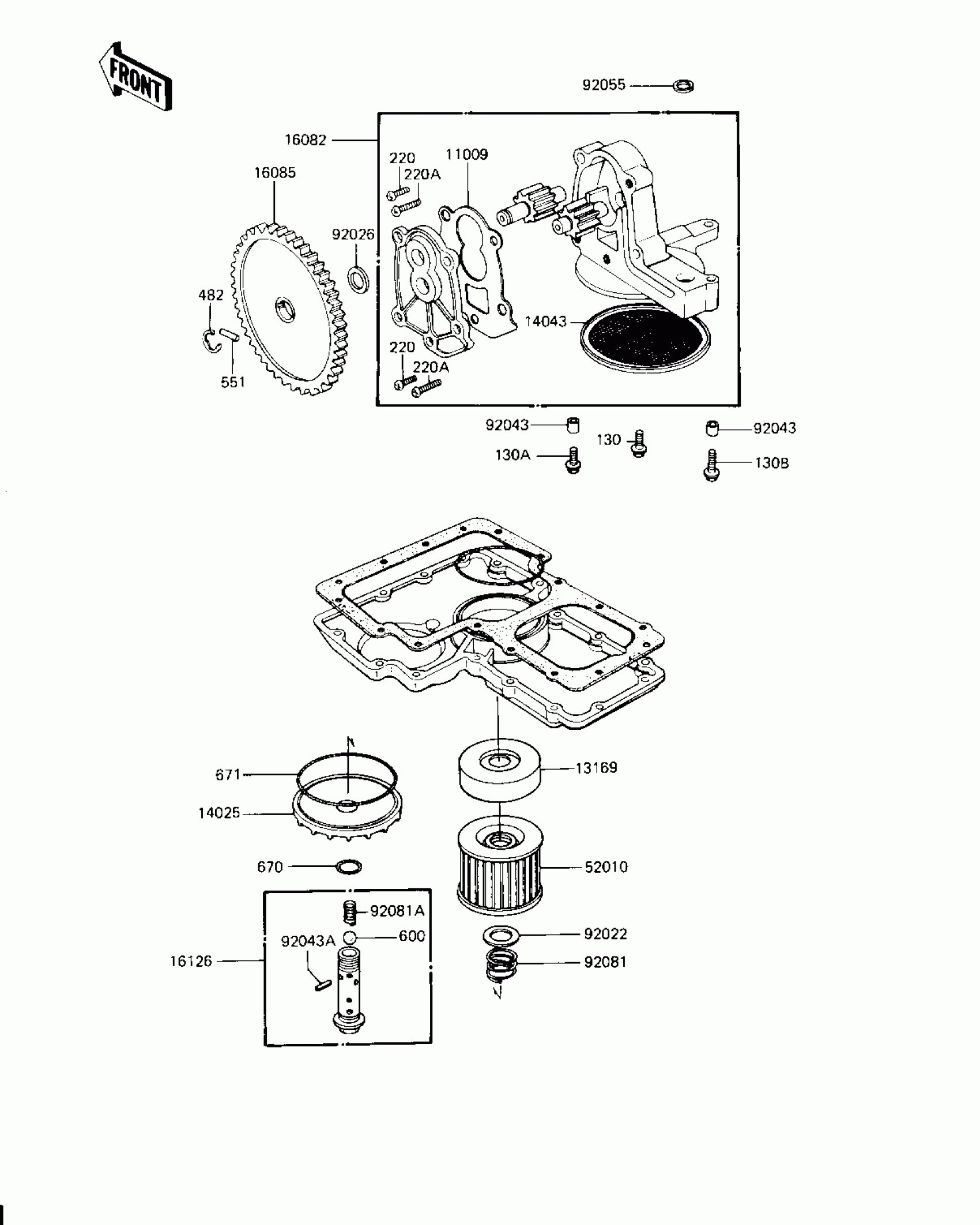

Kawasaki KZ1000-J3 OIL PUMP/OIL FILTER Diagram

#

Description
Price

11009

GASKET,OIL PUMP

11009-1029

Unavailable

13169

PLATE,OIL FILTER

13169-1313

$10.25

14025

COVER,OIL FILTER

16101-004

$39.50

14043

FILTER,OIL PUMP

16111-004

$45.22

16082

PUMP-ASSY-OIL

16082-5001

$722.58

16085

GEAR,OIL PUMP 49T

16085-019

$103.54

16126

VALVE,OIL FILTER

16126-1108

$37.32

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92022

WASHER,20.5X30X1

92022-1012

$3.32

92026

WASHER,LOCK,16MM

92026-080

$4.17

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92043A

PIN,SPRING,2X20

92043-111

$5.46

92055

RING-O,OD=18

92055-048

$3.66

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

130

BOLT,FLANGED,6X25

130G0625

Unavailable

130A

BOLT,FLANGED,6X25

130G0625

Unavailable

130B

BOLT-FLANGED,6X45

130G0645

Unavailable

220

SCREW PAN HEAD 6X18

220B0618

$2.79

220A

SCREW PAN HEAD 6X28

220B0628

Unavailable

482

CIRCLIP,7MM

482K7000

Unavailable

551

PIN,DOWEL,3X14

551A0314

$0.66

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54
