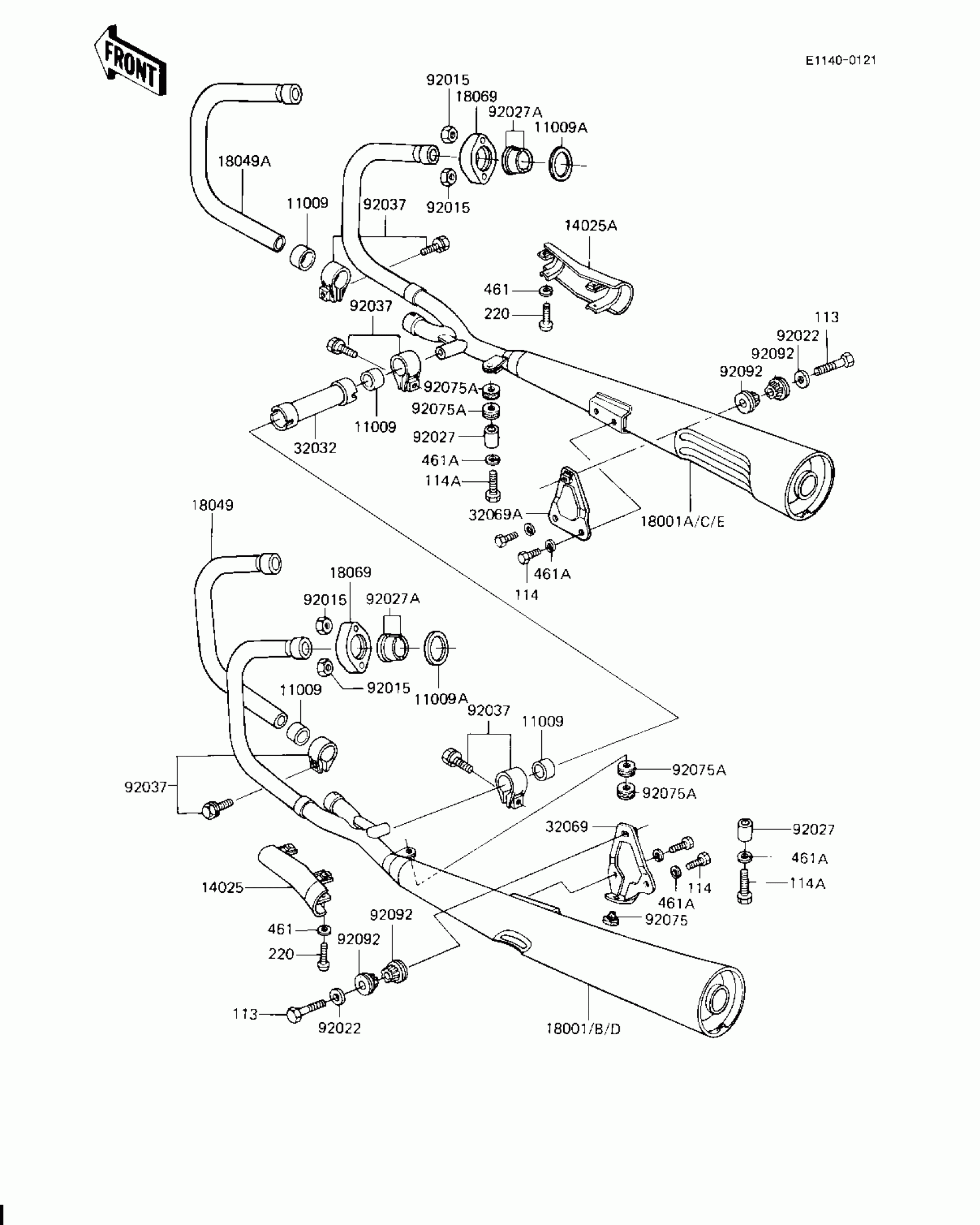

Kawasaki KZ1000-J3 MUFFLERS Diagram
#
Description
Price
11009
GASKET,MANIFOLD EXHAUST
11060-1068
$28.82
11009A
GASKET,EXHAUST PIPE
11009-1906
$11.06
14025
COVER,MUFFLER,LH
14025-1261
Unavailable
14025A
COVER,MUFFLER,RH
14025-1262
Unavailable
18001D
18001-1392 (Canada)
18001-1348
Unavailable
18001E
18001-1393 (Canada)
18001-1349
Unavailable
18049
PIPE-EXHAUST,#2
18049-1188
$193.23
18049A
PIPE-EXHAUST,#3
18049-1189
$193.23
18069
HOLDER-EXHAUST PIPE
18069-1015
$37.87
32032
PIPE,MUFFLER CONNECTING
32032-1676
$32.29
32069
BRACKET-MUFFLER,LH
32069-1066
Unavailable
32069A
BRACKET-MUFFLER,RH
32069-1067
Unavailable
92015
NUT,8MM
92015-1143
$0.65
92022
WASHER
92022-289
$16.33
92027
COLLAR
92027-1064
$13.60
92027A
COLLAR,EXHAUST PIPE
92027-1300
$7.58
92037
CLAMP,MUFFLER
92037-1258
$15.89
92075
DAMPER
92075-015
$5.00
92075A
DAMPER RUBBER
92075-1042
Unavailable
92092
BUSHING-RUBBER,MUFFLER
92092-1013
$17.44
113
BOLT-SMALL-FINE,10X55
113N1055
$9.62
114
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
114A
BOLT-SMALL-UPSET
115G0835
$4.54
220
SCREW PAN HEAD 6X45
220B0645
$1.71
461
WASHER SPRING 6MM
461F0600
$0.69
461A
WASHER SPRING 8MM
461F0800
$0.40
