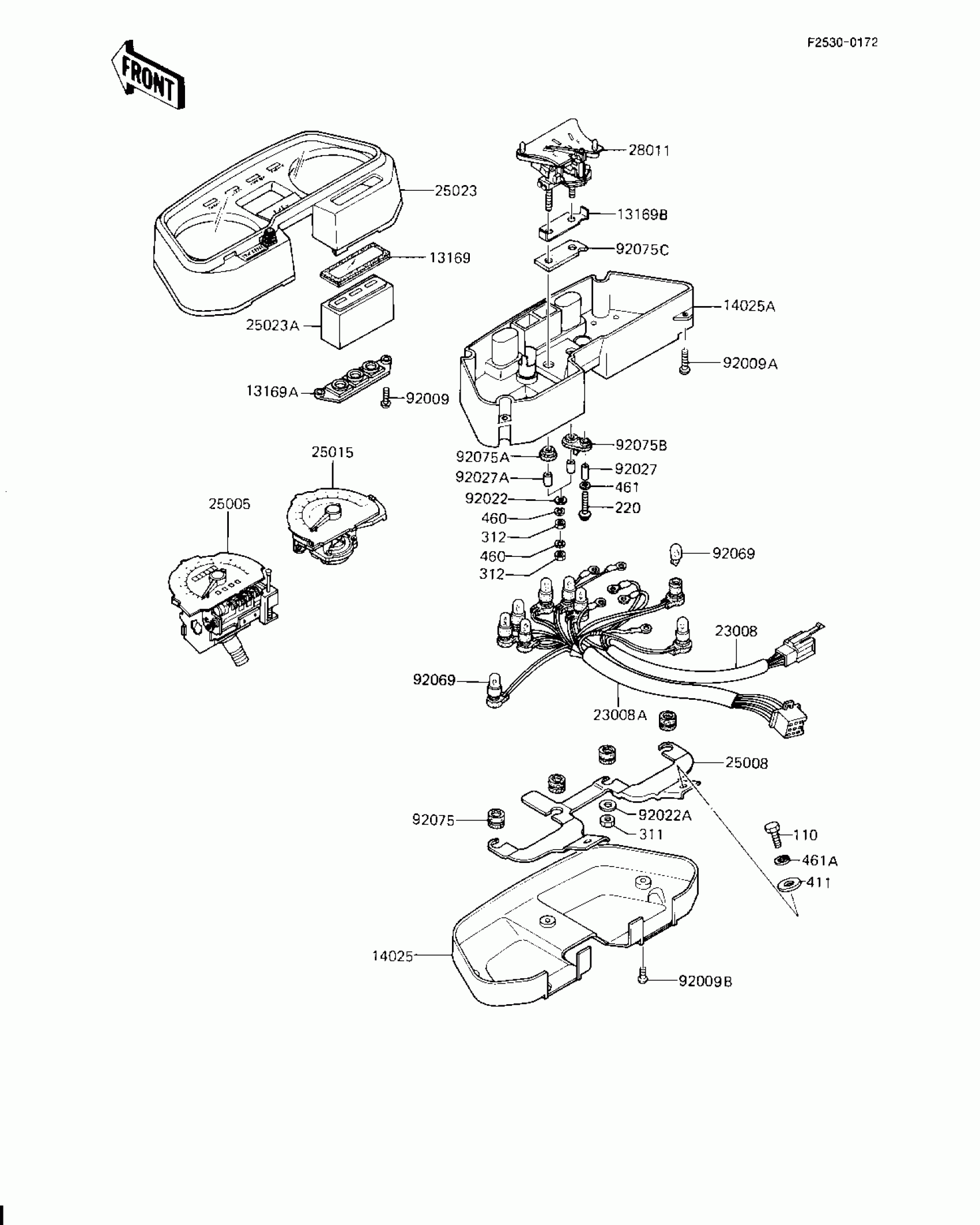

Kawasaki KZ1000-J3 METERS (KZ1000-J3) (CANADA) Diagram
#
Description
Price
13169
PLATE,PILOT BOX
13169-1508
Unavailable
13169A
PLATE,BULB SOCKET
13169-1556
Unavailable
13169B
PLATE,FUEL METER
13169-1593
Unavailable
14025
COVER,METER,LWR
14025-1473
Unavailable
14025A
COVER,METER UNIT
14025-1600
Unavailable
23008
SOCKET-ASSY,FUEL&OIL
23008-1178
$42.10
23008A
SOCKET-ASSY,METER
23008-1181
$90.27
25005
SPEEDOMETER,KPH (Canada)
25005-1180
Unavailable
25008
BRACKET-METER
25008-1058
$82.70
25015
TACHOMETER,X1000RPM
25015-1141
$382.23
25023
COVER-METER CASE,UPP
25023-1056
Unavailable
25023A
COVER-METER CASE.PIL
25023-1051
$37.71
28011
METER,FUEL
28011-1032
$67.50
92009
SCREW,TAPPING,4X14,YELLOW
92009-1140
$4.60
92009A
SCREW,TAPPING,4X20
92009-1141
$3.51
92009B
SCREW,TAPPING,4X12,BLACK
92009-1142
$4.13
92022
WASHER,4.5X10X0.8
92022-1394
$3.92
92022A
WASHER,5.2X16X1.2
92022-263
$1.66
92027
COLLAR,5.5X11
92027-1563
$3.26
92027A
COLLAR,6X8.5
92027-1564
$4.37
92069
BULB,12V 3.4W,T10
92069-1007
$5.00
92075
DAMPER,METER BRACKET
92075-1385
$5.11
92075A
DAMPER,FUEL METER
92075-1453
$3.83
92075B
DAMPER,FUEL METER
92075-1454
$3.84
92075C
DAMPER,FUEL METER
92075-1455
$5.06
110
BOLT-UPSET 6X14
112B0614
Unavailable
220
UNAVAILABLE IN PRICE BOOK
220B03164
Unavailable
311
NUT-HEX
311B0500
$0.47
312
NUT-HEX
312B0400
$0.53
411
WASHER PLAIN 6MM
411B0600
$2.84
460
WASHER SPRING 4MM
461F0400
Unavailable
461
WASHER SPRING 3MM
461F0300
$0.46
461A
WASHER SPRING 6MM
461F0600
$0.69
