Description

Price

11012

CAP,BULB,GREEN

11012-1172

Unavailable

11021

CASE-ASSY

11021-1011

Unavailable

14025

COVER,SPEEDOMETER

14025-1344

Unavailable

14025A

COVER,TACHOMETER

14025-1345

Unavailable

14025B

COVER,FUEL METER

14025-1347

Unavailable

23008

SOCKET-ASSY,SPEEDOMET

23008-1090

$96.86

23008A

SOCKET-ASSY,TACHOMETE

23008-1091

$88.74

23008B

SOCKET-ASSY,FUEL METE

23008-1092

$45.17

25005

SPEEDOMETER,MPH

25005-1106

$790.72

25005A

SPEEDOMETER,KPH (Canada)

25005-1107

Unavailable

25008

BRACKET-METER

25008-1034

Unavailable

25015

TACHOMETER

25015-1082

$517.30

28011

1011UNAVAILABLE IN PRICE BOOK

28011

Unavailable

28011A

METER,TOTAL & TRIP (Canada)

28011-1012

Unavailable

28011B

METER,FUEL

28011-1025

Unavailable

92001

BOLT,6X8

92001-1442

Unavailable

92001A

BOLT,HEX HEAD,6X14

92003-204

$3.86

92015

NUT-CAP,6MM,BLACK

322C0600

$2.76

92015A

NUT,CAP,4MM

92015-1144

Unavailable

92022

WASHER PLAIN

411F0600

$1.18

92022A

WASHER,6.5X26X1,BLACK

92022-1248

$6.56

92022B

WASHER,5.2X16X1.2

92022-263

$1.66

92022C

UNAVAILABLE IN PRICE BOOK

92029-064

Unavailable

92037

CLAMP

92037-1230

$13.75

92037A

CLAMP,HOSE

92037-1249

Unavailable

92041

PIN,COTER

92041-006

Unavailable

92069

BULB 12V 1.5W

92069-017

$4.92

92069A

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,TRIP METER

92075-1286

$9.58

92075A

DAMPER,TRIP METER

92075-1300

Unavailable

92075B

DAMPER,METER

92075-1315

Unavailable

92075C

DAMPER

92075-1316

Unavailable

92075D

DAMPER

92075-1317

$9.48

92075E

DAMPER,FUEL METER

92075-1318

Unavailable

92075E

DAMPER

92075-1319

Unavailable

114

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

130

BOLT-FLANGED,6X8

130B0608

$0.67

312

NUT-HEX

312B0300A

$2.76

410

WASHER PLAIN 8MM

410B0800

$0.93

461

WASHER SPRING

461B0800

$0.09

461A

WASHER SPRING

461B0800

$0.09

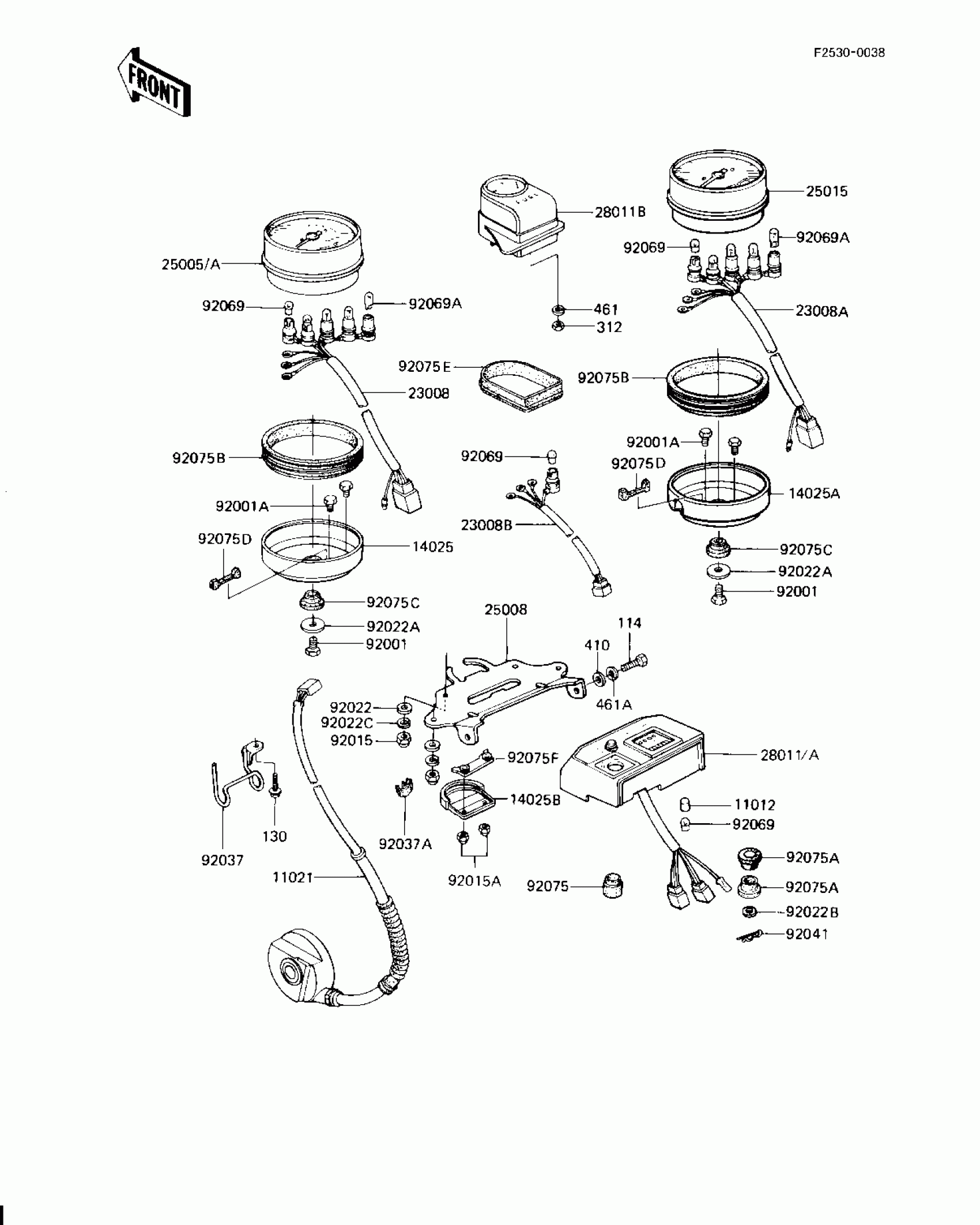

Kawasaki KZ1000-J3 METERS (KZ1000-J1/J2) Diagram

CAP,BULB,GREEN

CASE-ASSY

COVER,SPEEDOMETER

COVER,TACHOMETER

COVER,FUEL METER

SOCKET-ASSY,SPEEDOMET

SOCKET-ASSY,TACHOMETE

SOCKET-ASSY,FUEL METE

SPEEDOMETER,MPH

SPEEDOMETER,KPH (Canada)

BRACKET-METER

TACHOMETER

1011UNAVAILABLE IN PRICE BOOK

METER,TOTAL & TRIP (Canada)

METER,FUEL

BOLT,6X8

BOLT,HEX HEAD,6X14

NUT-CAP,6MM,BLACK

NUT,CAP,4MM

WASHER PLAIN

WASHER,6.5X26X1,BLACK

WASHER,5.2X16X1.2

UNAVAILABLE IN PRICE BOOK

CLAMP

CLAMP,HOSE

PIN,COTER

BULB 12V 1.5W

BULB,12V 3.4W,T10

DAMPER,TRIP METER

DAMPER,TRIP METER

DAMPER,METER

DAMPER

DAMPER

DAMPER,FUEL METER

DAMPER

BOLT-SMALL-UPSET,8X18

BOLT-FLANGED,6X8

NUT-HEX

WASHER PLAIN 8MM

WASHER SPRING

WASHER SPRING
