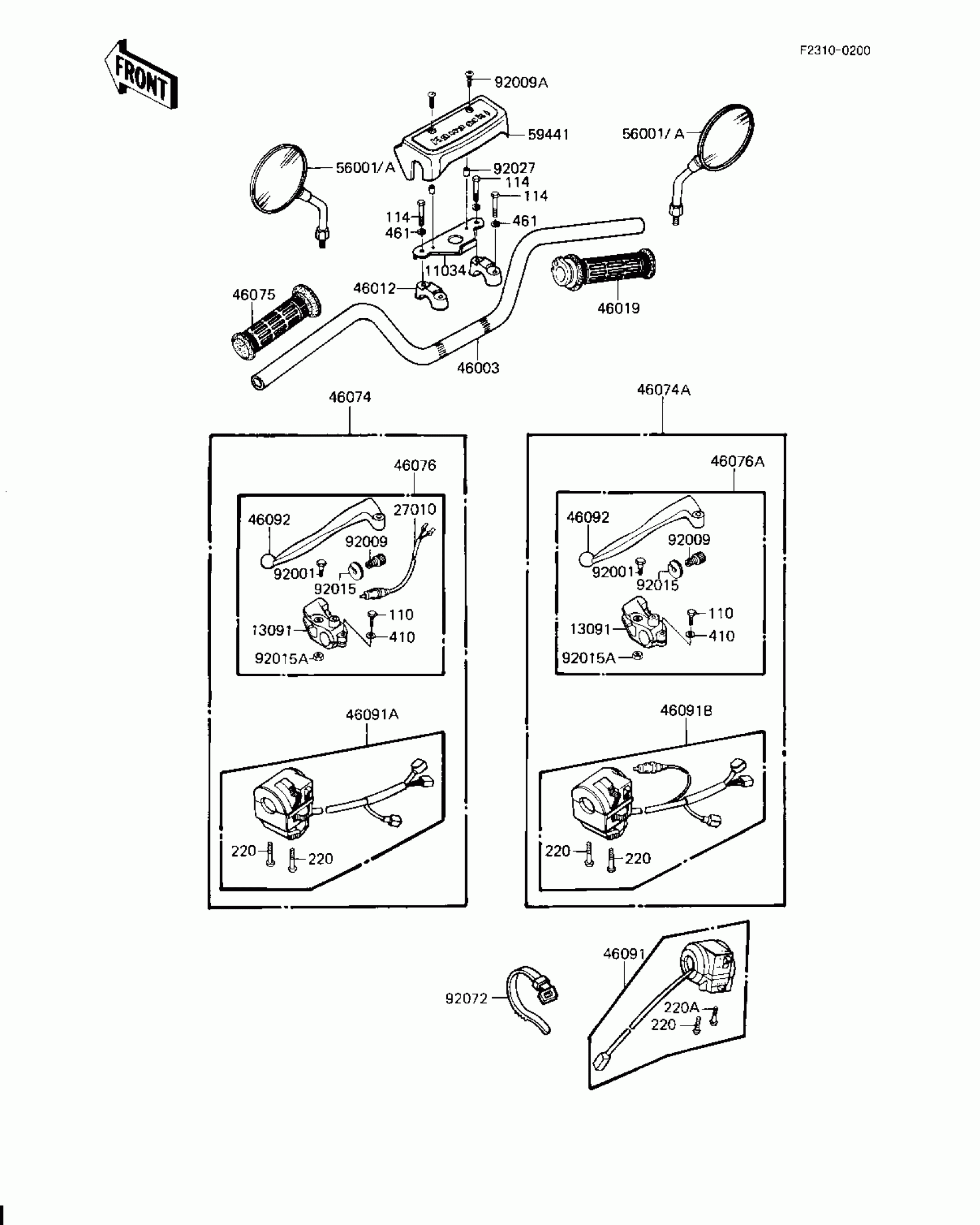

Kawasaki KZ1000-J3 HANDLEBAR (KZ1000-J1/J2) Diagram

#

Description
Price

11034

BRACKET,HANDLE COVER

11034-1899

Unavailable

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

$50.69

27010

SWITCH,CLUTCH

27010-1045

$39.19

46003

HANDLEBAR

46003-1068

$127.67

46012

HOLDER-HANDLE

46012-1011

$39.28

46019

GRIP-ASSY,THROTTLE

46019-1015

$51.06

46075

GRIP,LH

46075-1022

$16.96

46076

LEVER-ASSY-GRIP,LH

46076-1017

Unavailable

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-1019

$57.14

46091

HOUSING-ASSY-CNTRL,RH

46091-1155

Unavailable

46091A

HOUSING-ASSY-CNTRL,LH

46091-1180

Unavailable

46091B

HOUSING-ASSY-CNTRL,LH

46091-1180

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1005

$28.54

56001

MIRROR-ASSY

56001-1342

Unavailable

59441

COVER-HANDLE

59441-1001

$44.63

92001

BOLT,CLUTCH LEVER

92001-1075

$8.19

92009

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

92009A

SCREW,4X16

92009-1108

Unavailable

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

92015A

NUT,LOCK,6MM

92019-008

$4.26

92027

COLLAR,4.5X6.5X9.3

92027-1313

$8.98

92072

BAND,L=123

92072-030

$5.00

110

BOLT,6X22

110N0622

$3.23

114

BOLT-SMALL-UPSET

115G0835

$4.54

220

SCREW-PAN-CROS

220B0535

$3.70

220A

SCREW-PAN-CROS

220B0540

$3.41

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

461

WASHER SPRING

461B0800

$0.09
