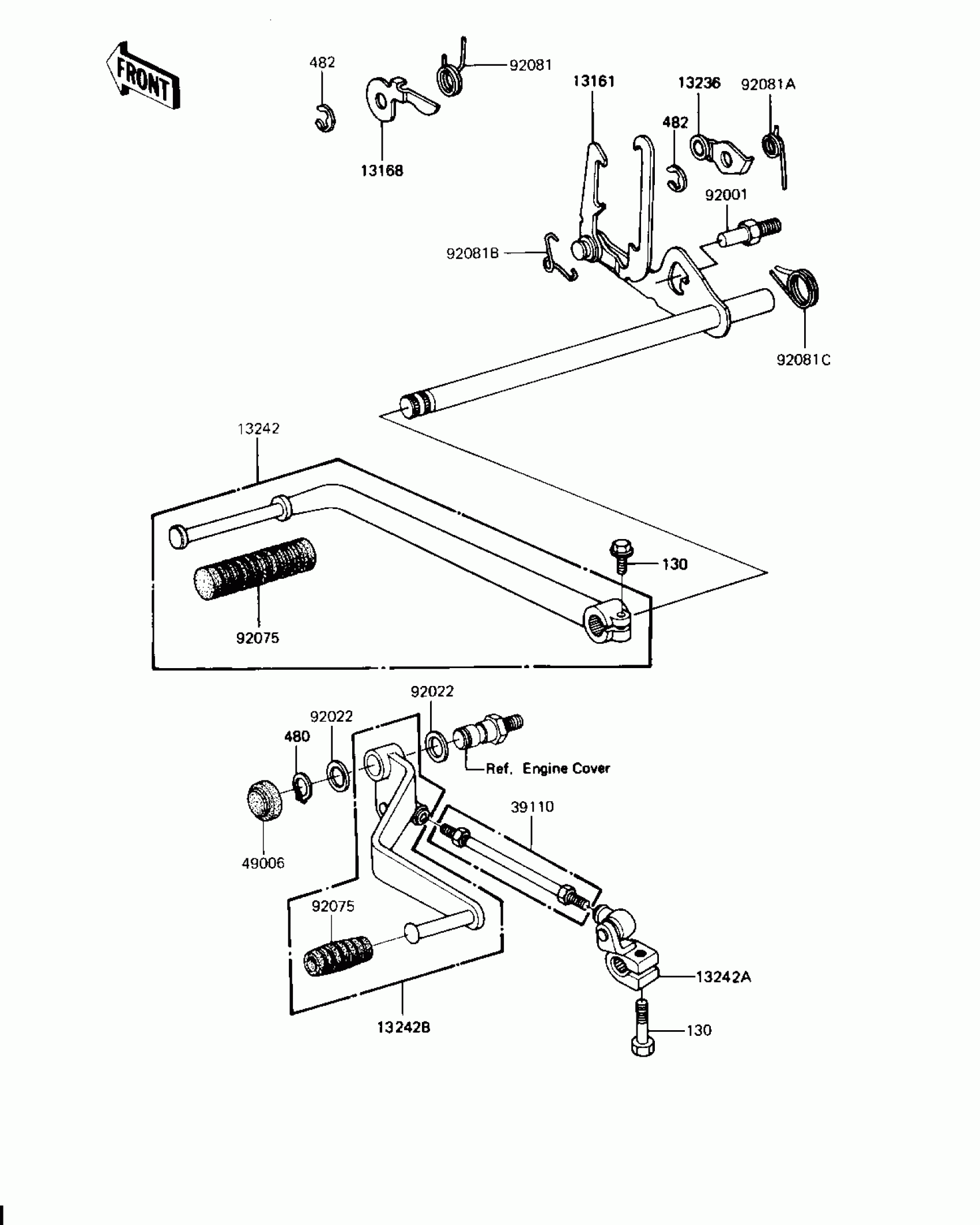

Kawasaki KZ1000-J3 GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1023

Unavailable

13168

LEVER,GEAR POSITIONING

13168-1074

$9.14

13236

LEVER-COMP,NEUTRAL POSITIONING

13236-1029

Unavailable

13242A

LEVER-ASSY-CHANGE,ROD

13242-1035

Unavailable

13242B

LEVER-ASSY-CHANGE,PDL

13242-1047

Unavailable

39110

ROD-ASSY-TIE

39110-1002

Unavailable

49006

BOOT,CHANGE LEVER

49006-1061

Unavailable

92001

BOLT,RETURN SPRING

92001-1401

$4.17

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92081

SPRING,POSITIONING LEVER

92081-1284

Unavailable

92081A

SPRING,NEUTRAL POSITIONING

92081-1285

Unavailable

92081B

SPRING

92083-018

$9.47

92081C

SPRING,CHG PEDL RTRN

92083-028

Unavailable

130

BOLT-FLANGED,6X20

130P0620

$1.22

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65
