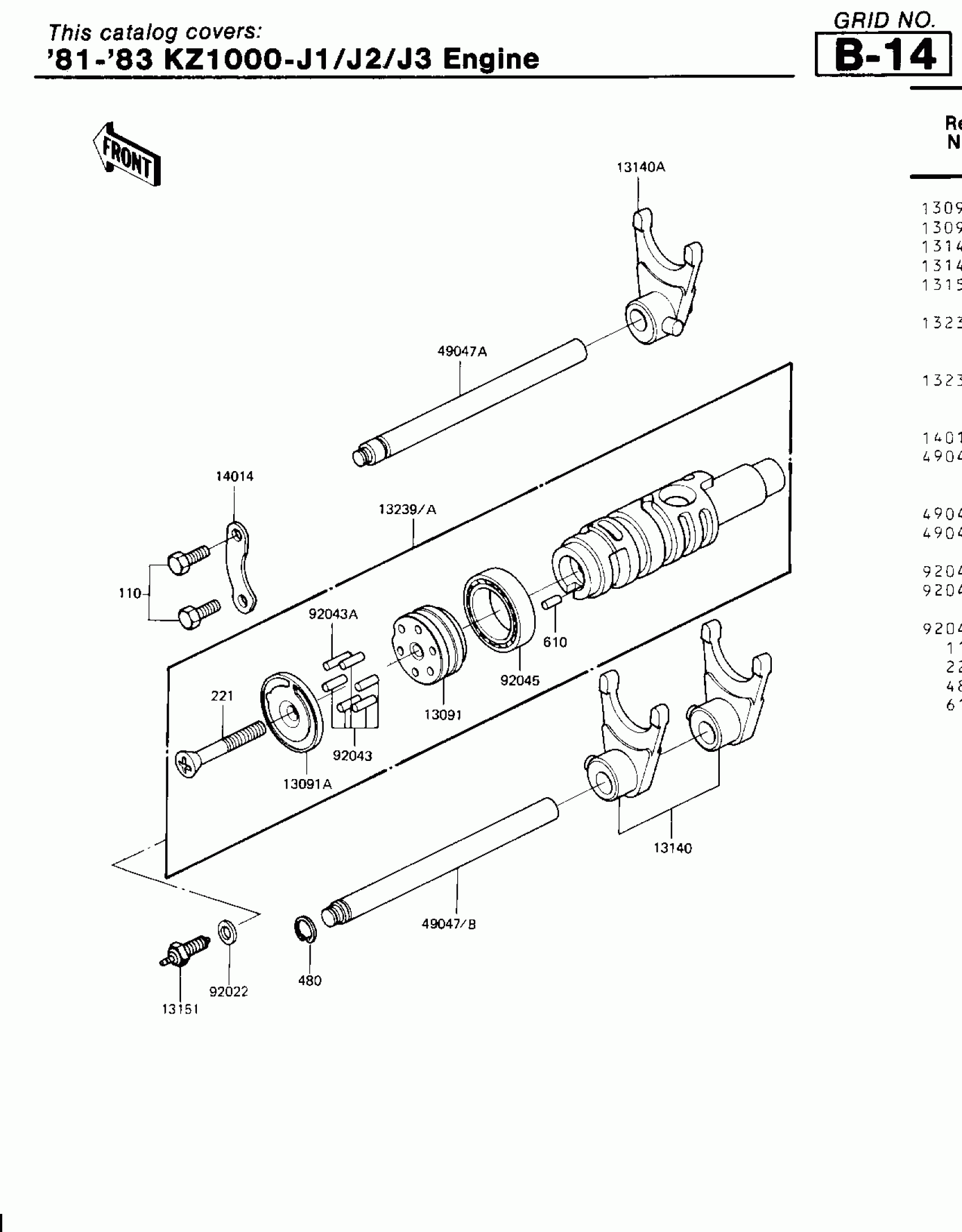

Kawasaki KZ1000-J3 GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,CHANGE DRUM PIN

13091-1087

$51.53

13091A

HOLDER

13091-1086

Unavailable

13140

FORK-SHIFT

13140-1045

Unavailable

13140A

FORK-SHIFT

13140-1046

Unavailable

13151

SWITCH-COMP

13151-5003

Unavailable

13239A

DRUM-ASSY-CHANGE

13239-1107

$253.70

14014

PLATE-POSITION

14014-1015

$7.83

49047A

ROD-SHIFT

49047-1014

$39.65

49047B

ROD-SHIFT

49047-1019

$39.65

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,6806

92045-1035

$45.82

110

BOLT-UPSET,6X16

112G0616

$1.10

221

SCREW-CSK-CROS,6X45

221B0645

$4.12

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

610

ROLLER,4X10

610A0410

$4.31
