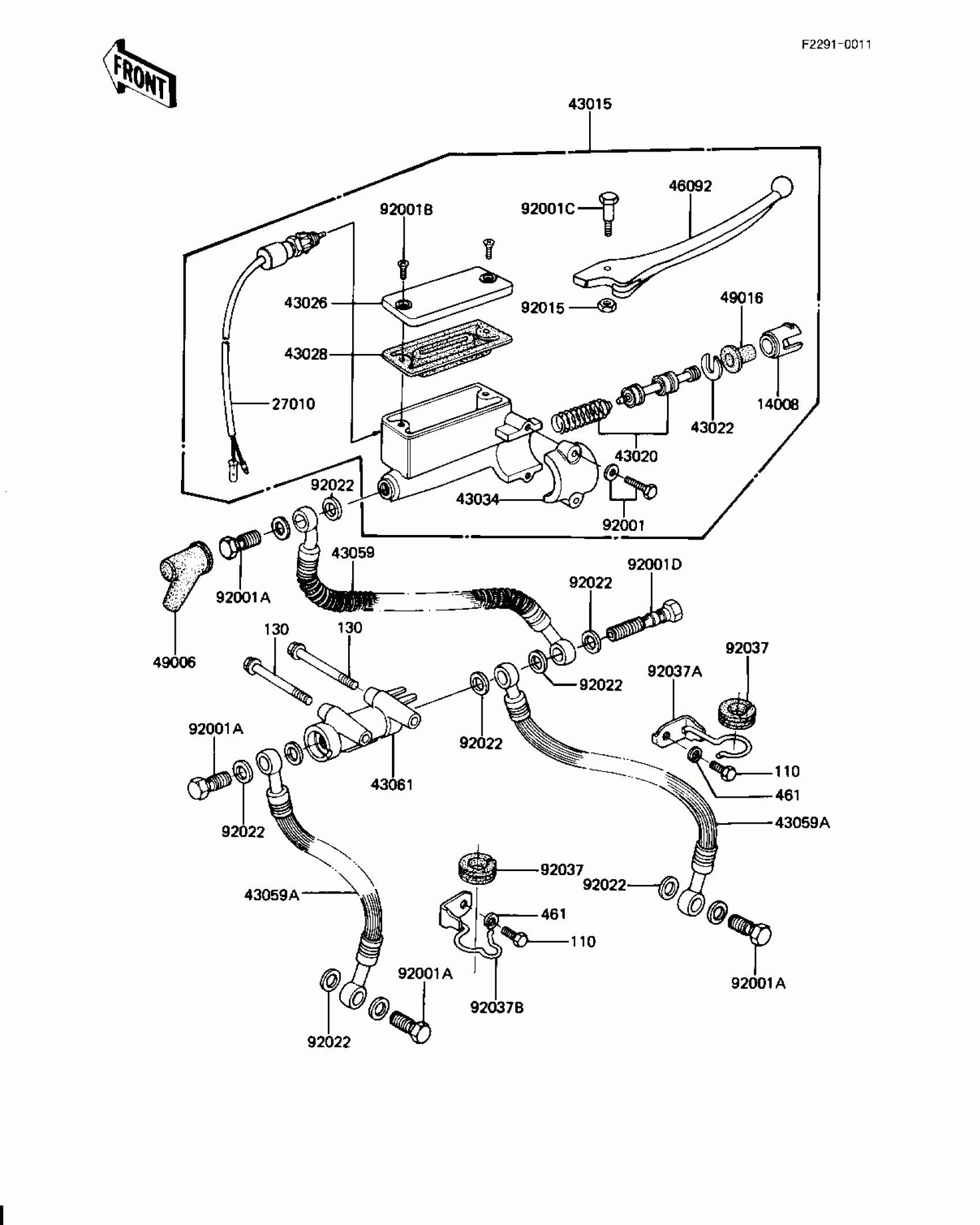

Kawasaki KZ1000-J3 FRONT MASTER CYLINDER (KZ1000-J1/J2) Diagram

Description

Price

14008

LINER,PISTON

14008-1007

Unavailable

27010

SWITCH,BRAKE

27010-1028

$33.48

43015

CYLINDER ASSY,FRONT

43015-1032

Unavailable

43020

PISTON-COMP-BRAKE

43020-1023

$95.02

43022

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

43026

CAP-BRAKE

43026-1006

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

43059

HOSE-BRAKE,L=440

43059-1092

$73.69

43059A

HOSE-BRAKE,FR,L=550

43059-1198

Unavailable

43061

JOINT-BRAKE

43061-1004

$72.14

46092

LEVER,FRONT BRAKE

46092-1004

Unavailable

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

92001

BOLT,6X25,W/WASHER

43033-003

Unavailable

92001A

BOLT,OIL,L=23

92002-1888

$5.48

92001B

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

92001C

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

92001D

BOLT,OIL,L=37

92002-1909

$11.83

92015

NUT 6MM

312B0600

$0.72

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

GROMMET,HOSE CLAMP

43064-006

$4.31

92037A

CLAMP,BRAKE HOSE,RH

92037-1217

$13.79

92037B

CLAMP,BRAKE HOSE,LH

92037-1231

Unavailable

110

BOLT-UPSET,6X12

112G0612

$1.45

130

BOLT,FLANGED,6X65

130G0665

$1.42

461

WASHER SPRING 6MM

461F0600

$0.69
