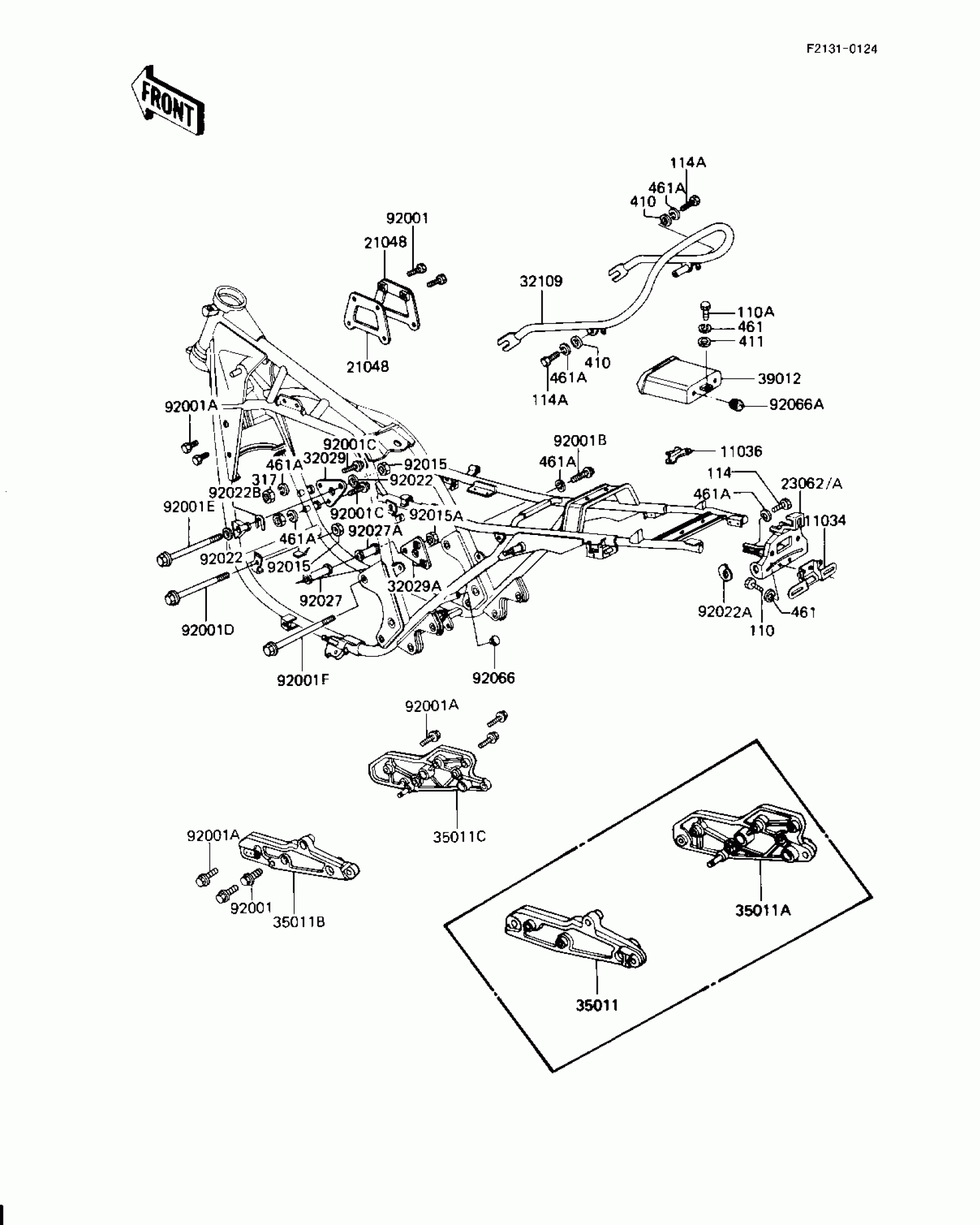

Kawasaki KZ1000-J3 FRAME FITTINGS Diagram
#
Description
Price
11034
BRACKET
11034-1922
Unavailable
11036
BRACKET-A,STORAGE
11036-1070
Unavailable
21048
PLATE-COIL
21048-1001
$20.77
23062A
BRACKET-COMP,TL LAMP
23062-1032
Unavailable
32029
BRACKET-ENGINE,FR,UPP
32029-1142
$19.74
32029A
BRACKET-ENGINE,RR
32029-1143
$22.48
32109
GRIP-FRAM
32109-1028
Unavailable
35011B
STAY,MUFFLER,LH (Canada)
35011-1088
Unavailable
35011C
STAY,MUFFLER,RH (Canada)
35011-1089
Unavailable
39012
CASE-STORAGE
39012-1014
Unavailable
92001
BOLT,6X10
92001-137
$6.52
92001A
BOLT,FLANGED,8X35
92001-1577
Unavailable
92001B
BOLT
92001-1578
$8.19
92001C
BOLT-FLANGE
92001-1582
Unavailable
92001D
BOLT
92001-1585
$24.03
92001E
BOLT,FLANGED,10X320,BLACK
92001-1624
$34.51
92001F
BOLT,FLANGED,8X85
92001-1596
Unavailable
92015
NUT,10MM
92015-1429
$6.88
92015A
NUT-LOCK,12MM
92019-009
$7.29
92022
WASHER,10.5X22X4.5
92022-1022
$5.24
92022B
WASHER,U FORMED
92022-1259
$7.98
92027
COLLAR,FR AXLE,L=27
92027-1318
$18.73
92027A
COLLAR,STEP
92027-1314
$11.05
92066
PLUG,FRAME END,12X13
92066-1034
$4.65
92066A
PLUG,11X3.2
92074-038
$7.22
110
BOLT-UPSET,6X12
112G0612
$1.45
110A
BOLT-UPSET,6X16
112G0616
$1.10
114
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
114A
BOLT HEX HEAD 8X70
114B0870
$4.46
317
NUT-HEX-SMALL,8MM
317B0800
$0.67
417
WASHER PLAIN 8MM
410B0800
$0.93
411
WASHER PLAIN 6MM
411B0600
$2.84
461
UNAVAILABLE IN PRICE BOOK
46180600
Unavailable
461A
WASHER SPRING
461B0800
$0.09
