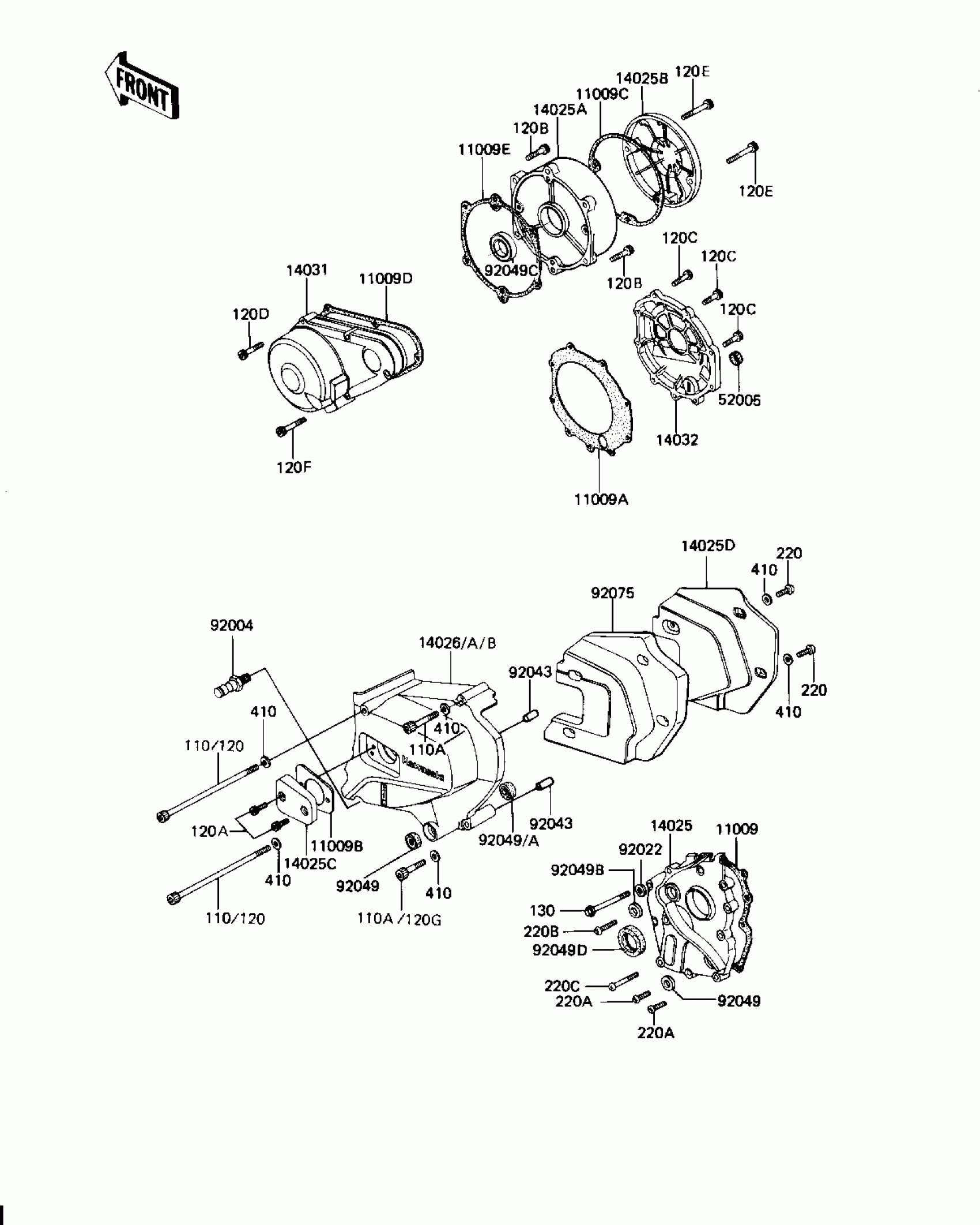

Kawasaki KZ1000-J3 ENGINE COVERS Diagram
#
11009
GASKET,TRANSMISSION COVER
11060-1069
$17.75
11009A
GASKET,CLUTCH COVER
11060-1070
Unavailable
110098
GASKET,CLUTCH ADJUSTING COVER
11060-1073
$5.80
11009C
GASKET,PULSING COIL COVER
11060-1072
$13.25
11009D
GASKET,GENERATOR COVER
11060-1075
Unavailable
11009E
GASKET,RH ENGINE COVER
11060-1071
Unavailable
14025
COVER,TRANSMISSION
14025-1240
$136.22
14025A
COVER,ENGINE,RH
14025-1243
Unavailable
14025B
COVER,PULSING COIL
14025-1614
Unavailable
14025C
COVER,CLUTCH ADJUSTIN
14025-1249
Unavailable
14025D
COVER,SOUND ARRESTER
14025-1252
Unavailable
14026B
COVER-CHAIN (Canada)
14026-1064
Unavailable
14031
COVER-GENERATOR
14031-1056
Unavailable
14032
COVER-CLUTCH
14032-1047
Unavailable
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92004
STUD,CHANGE PEDAL PIV
92004-1034
Unavailable
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL,SB12205
92049-004
$9.58
92049A
SEAL-OIL,CLUTCH RELEASE
92049-1003
$10.89
92049B
SEAL-OIL,SD-8187
92049-1017
$9.89
92049C
SEAL-OIL,SC32487
92049-1033
$18.83
92049D
SEAL-OIL,AE2343F0
92049-1070
$16.56
92075
DAMPER,SOUND
92075-1269
Unavailable
120
BOLT-SOCKET,6X125
120P06125
$10.54
120A
BOLT-SOCKET,6X14
120P0614
$3.82
120B
BOLT,SOCKET,6X22
120P0622
$1.92
120C
BOLT-SOCKET,6X25
120P0625
$1.92
120D
BOLT-SOCKET,6X30
120P0630
$5.59
120E
BOLT-SOCKET,6X35
120P0635
$1.92
120F
BOLT,SOCKET,6X40
120P0640
Unavailable
120G
BOLT-SOCKET,6X70
120P0670
Unavailable
130
BOLT-FLANGED,6X55
130G0655
$4.65
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
220A
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
220B
SCREW PAN HEAD 6X28
220B0628
$3.41
220C
SCREW PAN HEAD 6X40
220B0640
Unavailable
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
