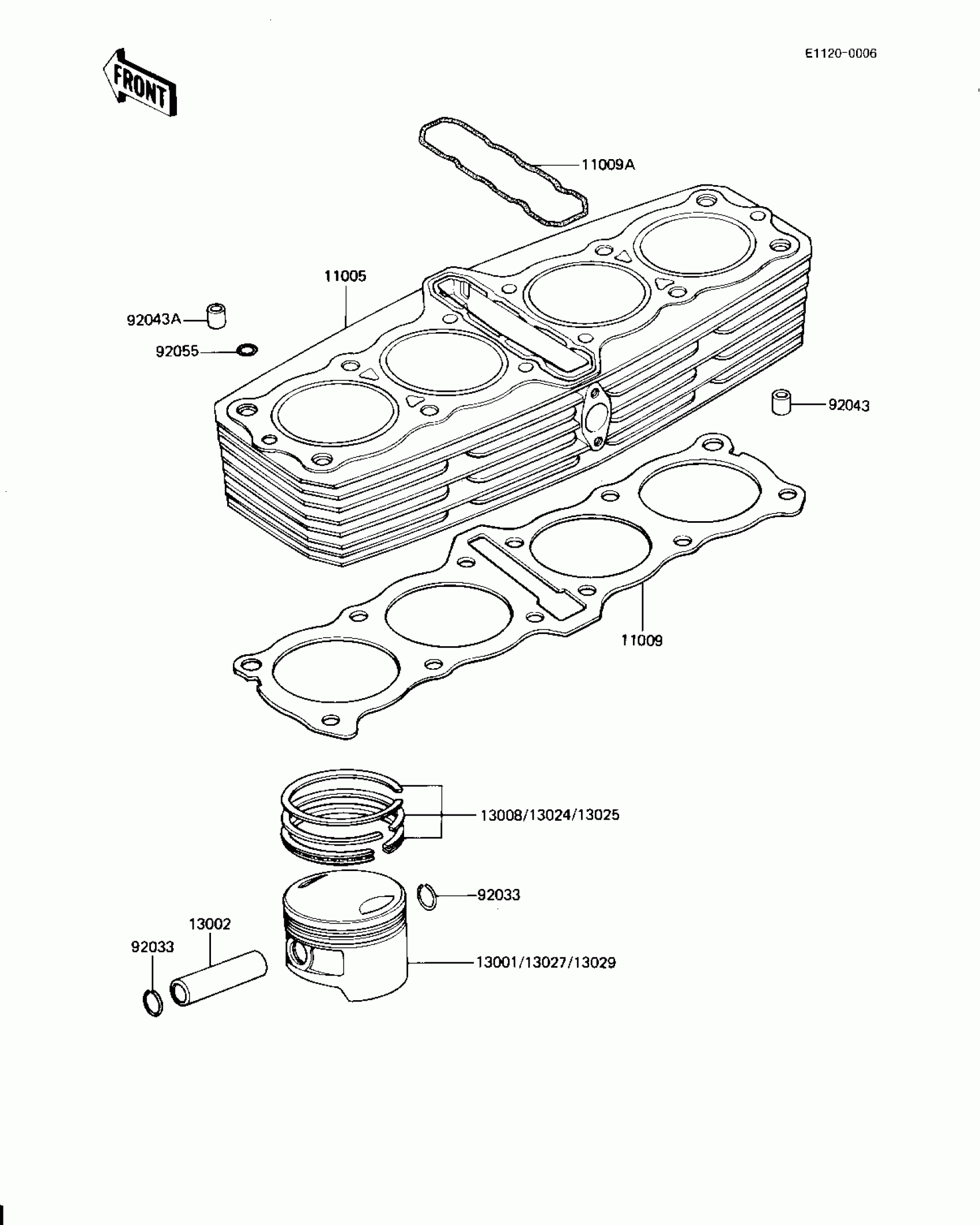

Kawasaki KZ1000-J3 CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE,BLACK

11005-1323

Unavailable

11009

GASKET,CYLINDER BASE

11060-1067

Unavailable

11009A

GASKET,CYLINDER

11009-1208

$82.08

13001

PISTON-ENGINE,STD

13001-1119

Unavailable

13002

PIN-PISTON

13002-1013

$6.66

13008

RING-SET-PISTON

13008-5035

$128.27

13024

RING SET,1.10 O/S

13024-5018

Unavailable

13025

RING SET,050 0/S

13025-5018

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1056

$122.94

13029

PISTON-ENGINE L,O/S 0.50

13029-1058

$122.94

92033

RING-SNAP

92033-1054

$2.47

92043

PIN,11X14X12.3

92043-1266

$1.08

92043A

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,OD=18.5

92055-1148

$14.23
