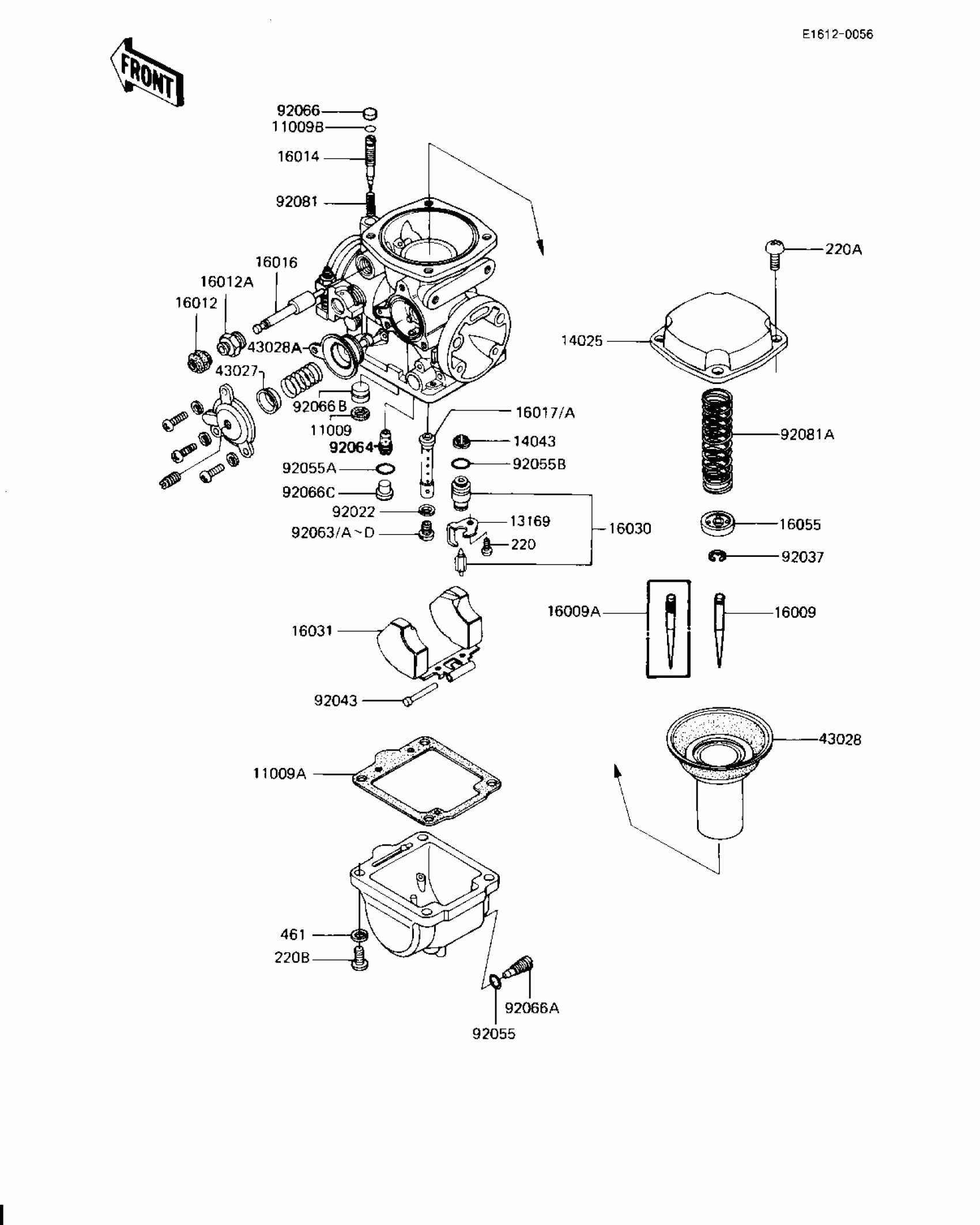

Kawasaki KZ1000-J3 CARBURETOR PARTS (KZ1000-J1/J2) Diagram
#
11009
GASKET,CARB. PLUG
11009-1240
Unavailable
11009A
GASKET,FLOAT CHAMBER
11009-1241
Unavailable
11009B
GASKET,"O"RING
16038-022
$6.89
13169
PLATE,FLOAT VALVE
13169-1482
$7.22
14025
TOP-CHAMBER,MIXING
14025-1359
Unavailable
14043
FILTER,FLOAT VALVE
14043-1010
$14.86
16009
NEEDLE-JET
16009-1083
$29.00
16009A
NEEDLE-JET (Canada)
16009-1084
Unavailable
16012
CAP-STARTER PLUNGER,RUBBER
16012-1010
$25.51
16012A
CAP-STARTER PLUNGER
16012-1011
$16.53
16014
SCREW-PILOT AIR
16014-1014
$27.54
16016
PLUNGER
16016-1019
$47.66
16017
JET-NEEDLE
16017-1084
$24.15
16017A
JET-NEEDLE (Canada)
16017-1085
Unavailable
16030
VALVE-FLOAT,2.5
16030-1016
$58.86
16031
FLOAT
16031-1013
$64.88
16055
PLATE,NEEDLE
16055-010
$12.37
43027
RETAINER,DPHRGM SPRNG
43027-1004
$11.17
43028
DIAPHRAGM,VALVE
43028-1025
Unavailable
43028A
DIAPHRAGM,COASTING RICHER
43028-1026
$141.07
92022
WASHER,MAIN JET
16034-001
$4.31
92037
CLAMP,E-TYPE
16008-014
$9.64
92043
PIN,FLOAT
16032-008
$6.57
92055
RING-O
92055-044
$10.38
92055A
"O" RING,CHECK VALVE
92055-1059
$11.60
92055B
RING-O
92055-1105
$5.00
92063
JET-MAIN,#A127.5
92063-1100
$14.10
92063A
JET-MAIN,#A122.5
92063-1101
$14.10
92063B
JET-MAIN,#A125
92063-1102
$14.10
92063C
JET-MAIN,#A130
92063-1103
$14.10
92063D
JET-MAIN,#A132.5
92063-1104
$14.10
92064
JET-PILOT,#A37.5
92064-1036
$19.96
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92066A
PLUG,DRAIN
92066-1064
$12.37
92066B
PLUG,CARBURETOR
92066-1086
Unavailable
92066C
PLUG,CARBURETOR
92066-1086
Unavailable
92081
SPRING,PILOT SCREW
16022-016
$9.10
92081A
SPRING,DIAPHRAGM VALVE
92081-1363
$26.16
220
SCREW PAN HEAD 4X6
220B0406
$1.67
220A
SCREW PAN HEAD 5X10
220B0510
$0.69
220B
SCREW-PAN-CROS
220B0514
$4.04
461
WASHER SPRING 5MM
461F0500
$0.69
