Description

Price

13168

LEVER,CHOKE

13168-1091

Unavailable

16001

CARBURETOR

16001-1356

$1,252.23

16001A

CARBURETOR (Canada)

16001-1357

Unavailable

16001B

CARBURETOR,LH,OUTSIDE

16001-1428

$438.41

16001C

CARBURETOR,LH,INSIDE

16001-1429

$438.41

16001D

CARBURETOR,RH,INSIDE

16001-1430

$438.41

16001E

CARBURETOR,RH,OUTSIDE

16001-1431

$438.41

16001F

CARBURETOR,LH,OUTSIDE (Canada)

16001-1432

Unavailable

16001G

CARBURETOR,LH,INSIDE (Canada)

16001-1433

Unavailable

16001H

CARBURETOR,RH,INSIDE (Canada)

16001-1434

Unavailable

16001I

CARBURETOR,RH,OUTSIDE (Canada)

16001-1435

Unavailable

16021

SCREW-THROTTLE STOP

16021-1035

$31.25

16041

SHAFT-CARBURETOR,CHOKE

16041-1024

$51.67

16065

HOLDER-CARBURETOR,LWR

16065-1043

$87.88

16065A

HOLDER-CARBURETOR,UPP

16065-1044

$59.44

39031

CAP-END

39031-1009

Unavailable

39184

BRACKET-ASSY,THROTTLE

39184-1006

Unavailable

39184A

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

$37.90

92001

BOLT,ADJUSTING

92001-1447

Unavailable

92005

FITTING,FUEL,I-TYPE

92005-1035

Unavailable

92005A

FITTING,FUEL,T-TYPE

92005-1036

$68.40

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

Unavailable

92022

WASHER,LOCK

92022-1191

$4.41

92022A

WASHER,SPRING

92022-1255

$5.12

92028

BUSHING

92028-1071

Unavailable

92033

RING-SNAP,E-TYPE

92033-1066

$5.08

92037

CLAMP,TUBE

92037-1184

$1.09

92037A

CLAMP,BREATHER TUBE

92037-174

$1.42

92045

BALL,STEEL,1/8"

600A0400

$1.66

92059

TUBE,7.5X12.5X250

92059-1187

$45.42

92059A

TUBE,5X9X150

92059-1188

$19.00

92081

SPRING,SHAFT STOP

92081-1260

$5.08

92081A

SPRING,CHOKE SHAFT

92081-1364

$5.08

92081B

SPRING,THROTTLE STOP SCREW

92081-1377

$4.51

92093

OIL SEAL

92093-1027

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

220B

SCREW-PAN-CROS

220B0514

Unavailable

220C

SCREW-PAN-CROS,6X14

220B0614

$1.14

315

NUT,8 M/M

315G0800

$2.56

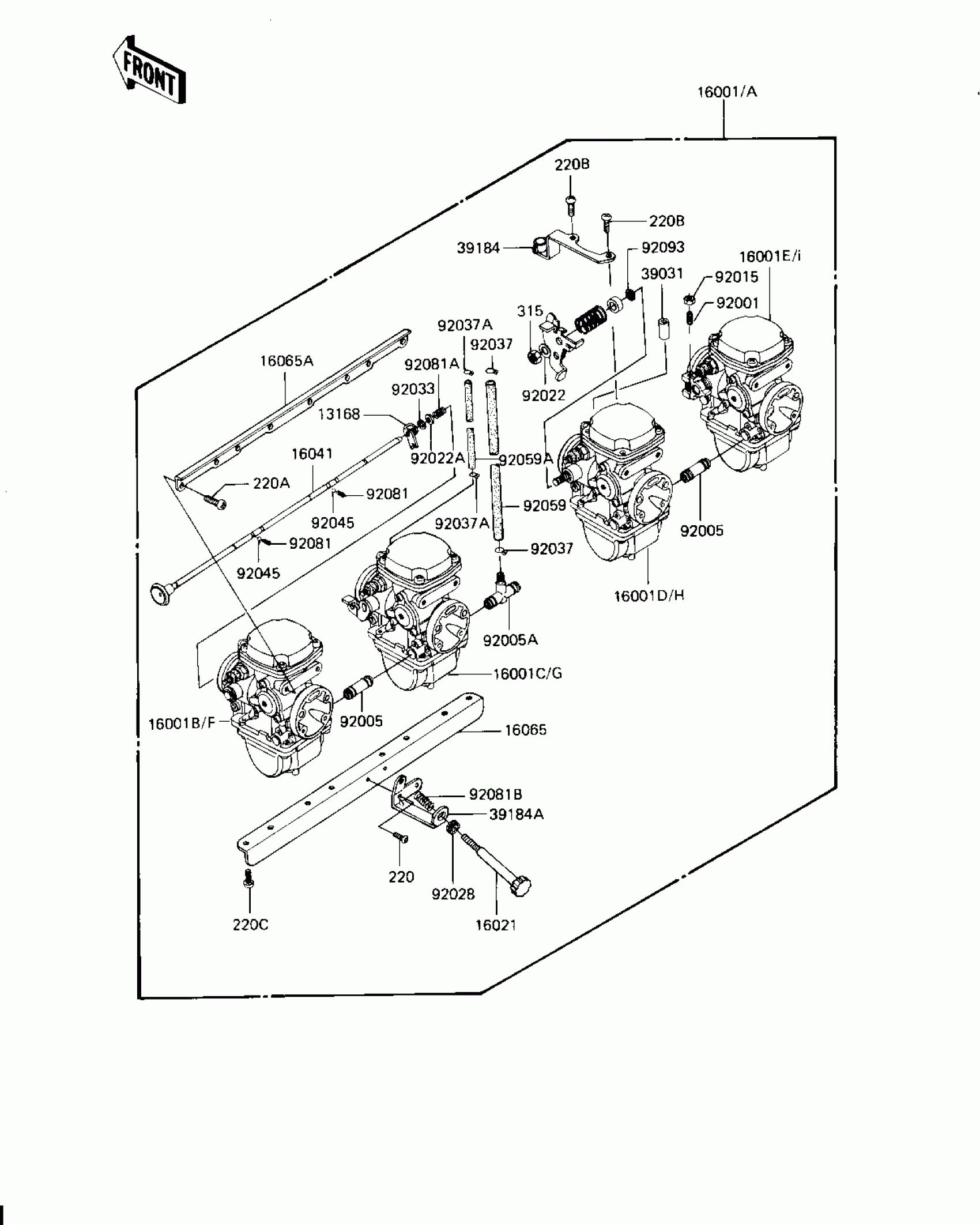

Kawasaki KZ1000-J3 CARBURETOR ASSY (KZ1000-J1/J2) Diagram

LEVER,CHOKE

CARBURETOR

CARBURETOR (Canada)

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

CARBURETOR,LH,OUTSIDE (Canada)

CARBURETOR,LH,INSIDE (Canada)

CARBURETOR,RH,INSIDE (Canada)

CARBURETOR,RH,OUTSIDE (Canada)

SCREW-THROTTLE STOP

SHAFT-CARBURETOR,CHOKE

HOLDER-CARBURETOR,LWR

HOLDER-CARBURETOR,UPP

CAP-END

BRACKET-ASSY,THROTTLE

BRACKET-ASSY,IDLING ADJUSTER

BOLT,ADJUSTING

FITTING,FUEL,I-TYPE

FITTING,FUEL,T-TYPE

NUT,THROTTLE VALVE ADJUSTING

WASHER,LOCK

WASHER,SPRING

BUSHING

RING-SNAP,E-TYPE

CLAMP,TUBE

CLAMP,BREATHER TUBE

BALL,STEEL,1/8"

TUBE,7.5X12.5X250

TUBE,5X9X150

SPRING,SHAFT STOP

SPRING,CHOKE SHAFT

SPRING,THROTTLE STOP SCREW

OIL SEAL

SCREW PAN HEAD 5X8

SCREW PAN HEAD 5X10

SCREW-PAN-CROS

SCREW-PAN-CROS,6X14

NUT,8 M/M
