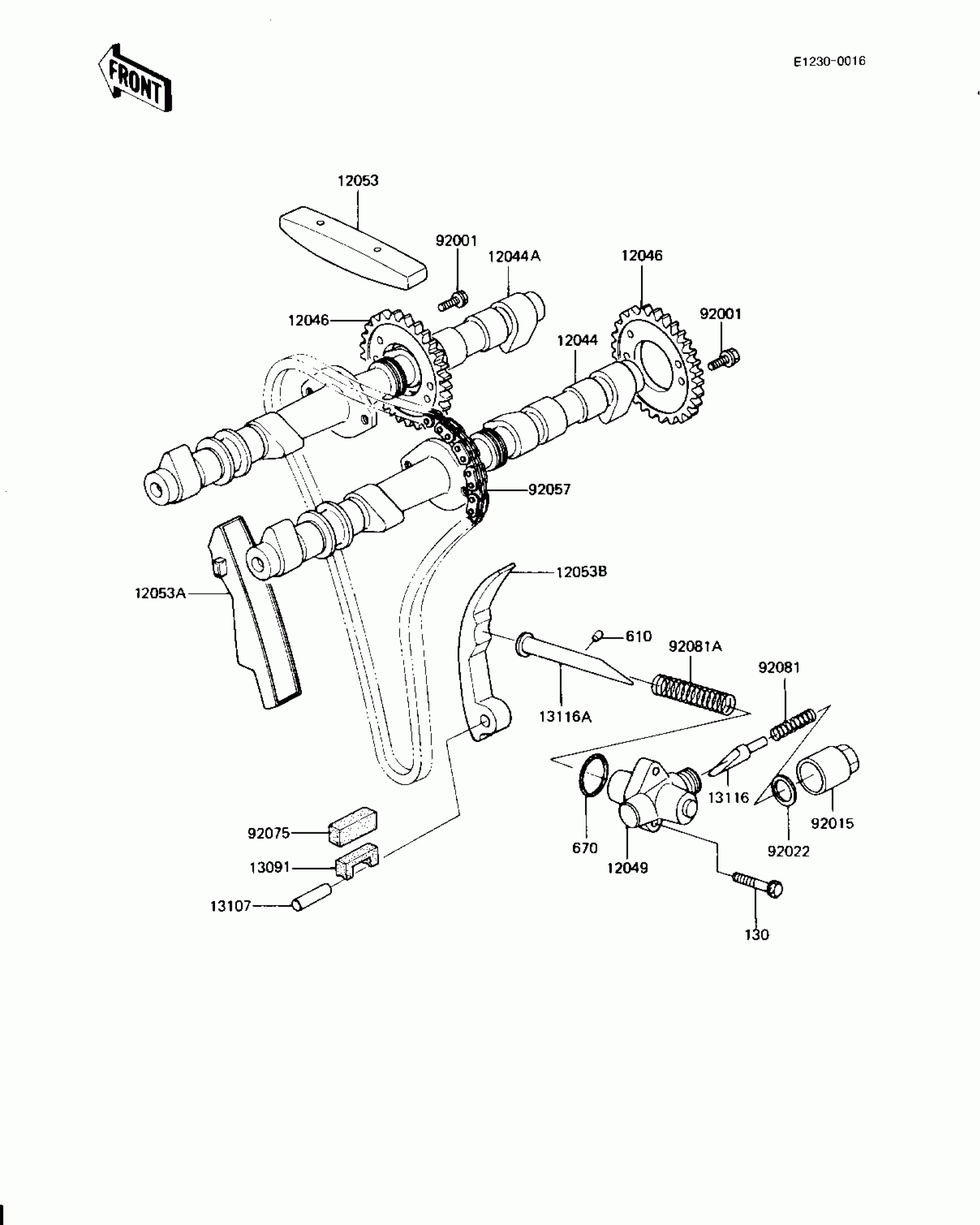

Kawasaki KZ1000-J3 CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE,INLET

12044-1031

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUS

12044-1036

Unavailable

12046

SPROCKET,CAMSHAFT,42T

12046-1025

$72.96

12049

TENSIONER,CAM CHAIN

12049-1009

$54.23

12053A

GUIDE-CHAIN,CAM,FR

12053-1048

$66.00

12053B

GUIDE-CHAIN,CAM,RR

12053-1049

$66.00

13091

HOLDER,CAM CHAIN GUIDE

13091-1084

$7.90

13107

SHAFT,8X28

13107-1020

Unavailable

13116

ROD-PUSH,TENSIONER

13116-1012

$19.66

13116A

ROD-PUSH,TENSIONER

13116-1038

$42.64

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92015

NUT,CAP,18MM

92015-1100

$13.08

92022

WASHER,18.3X24X1.4

92022-1175

$4.39

92057

CHAIN,CAMSHAFT,75-010X152L

92057-1052

$146.10

92075

DAMPER,CAM CHAIN GUIDE

92075-1270

$10.35

92081

SPRING,TENSIONER

92081-1302

$5.54

92081A

SPRING,TENSIONER

92081-1380

$8.14

130

BOLT,FLANGED,6X25

130G0625

$1.17

610

ROLLER,4X8

610A0408

$4.31

670

O RING,22MM

670E2022

$10.32
