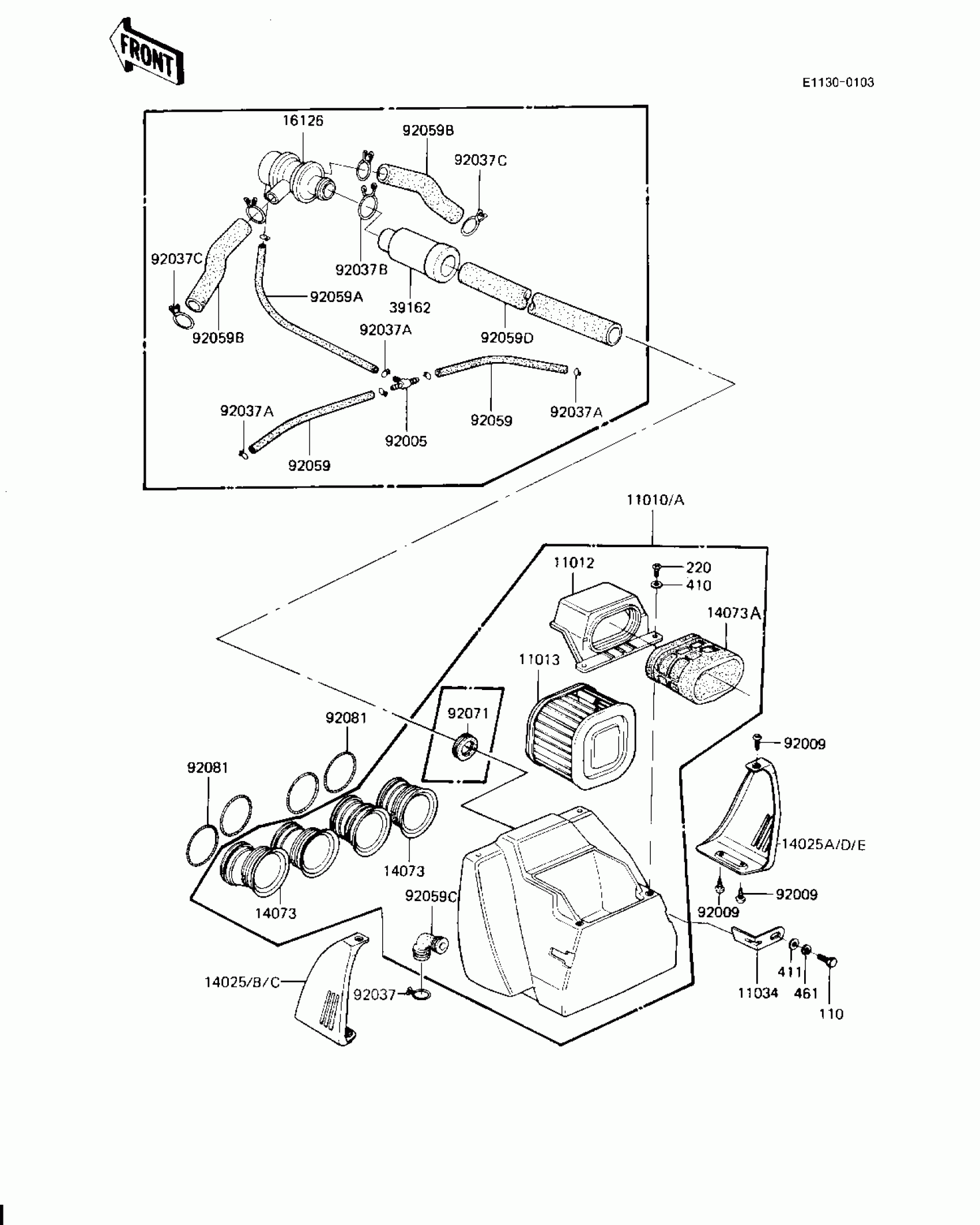

Kawasaki KZ1000-J3 AIR CLEANER Diagram

Description

Price

11010A

FILTER-ASSY-AIR (Canada)

11010-1112

Unavailable

11012

CAP,AIR FILTER

11012-1167

$36.70

11013

ELEMENT,AIR CLNR

11013-1037

$25.01

11034

BRACKET,AIR CLEANER

32070-038

$5.86

14025B

COVER,AIR FILTER,LH,B

14025-1507

Unavailable

14025D

COVER,AIR FILTER,RH,B

14025-1508

Unavailable

14073

DUCT,AIR FILTER,OUTLE

14073-1048

$24.59

14073A

DUCT,AIR FILTER,INTAK

14073-1049

$35.78

92009

SCREW,TAPPING,5X12,BL

92009-1138

$3.96

92037

CLAMP BREATHER PIPE

92037-028

Unavailable

92059C

TUBE,AIR FILTER

92059-1156

$16.50

92081

SPRING,COIL,BLACK

92081-1457

$11.40

110

BOLT-UPSET,6X12

112G0612

$1.45

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69
