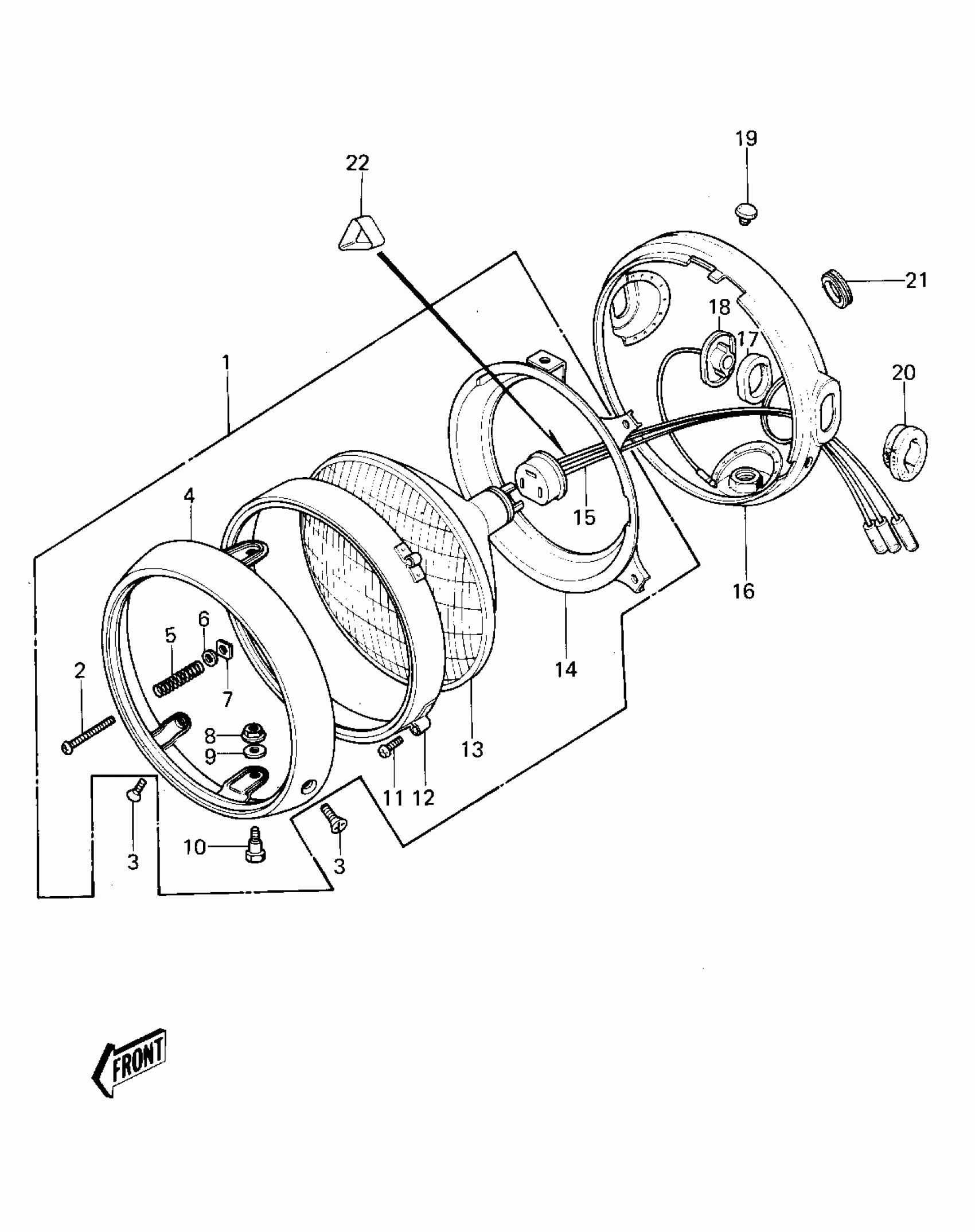

Kawasaki KZ1000 HEADLIGHT ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

LAMP UNIT,HEAD

23003-017

$409.20

1

LAMP UNIT,HEAD

23004-1009

Unavailable

2

SCREW,FOCUS ADJUSTING

23019-021

$4.17

3

SCREW,SPECIAL,5X14

23019-022

$1.54

4

RIM,HEAD LAMP

23006-038

Unavailable

5

SPRING,FOCUS ADJUSTING

23014-005

$3.19

6

WASHER,4.1X8X0.8

23021-004

Unavailable

7

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

8

NUT,5MM

23020-023

Unavailable

9

WASHER,PLAIN,5MM

23021-012

Unavailable

10

SCREW,PAN HEAD,5X12

23019-023

$4.78

11

SCREW-PAN-CROS,3X6

220B0306

Unavailable

11

SCREW-PAN-CROS

220B0312

Unavailable

12

RING,HEAD LAMP MOUNT

23072-001

$45.03

13

SEALD BEAM UNIT

23007-041

Unavailable

13

SEALED BEAM UNIT

23007-1006

Unavailable

14

RING,HEAD LAMP MOUNT

23074-001

$65.88

15

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

16

BODY-COMP-HEAD LAMP

23005-1015-21

$235.99

16

BODY-COMP-HEAD LAMP

23005-1015-21

$235.99

17

DAMPER RUBBER

23066-016

Unavailable

18

COLLAR

23076-005

$50.07

19

PLUG REAR FENDER RUB

92074-006

$5.93

20

DAMPER RUBBER

23066-015

Unavailable

21

GROMMET

92071-1008

Unavailable

22

DUST COVER,HEAD LAMP

49016-1009

Unavailable
