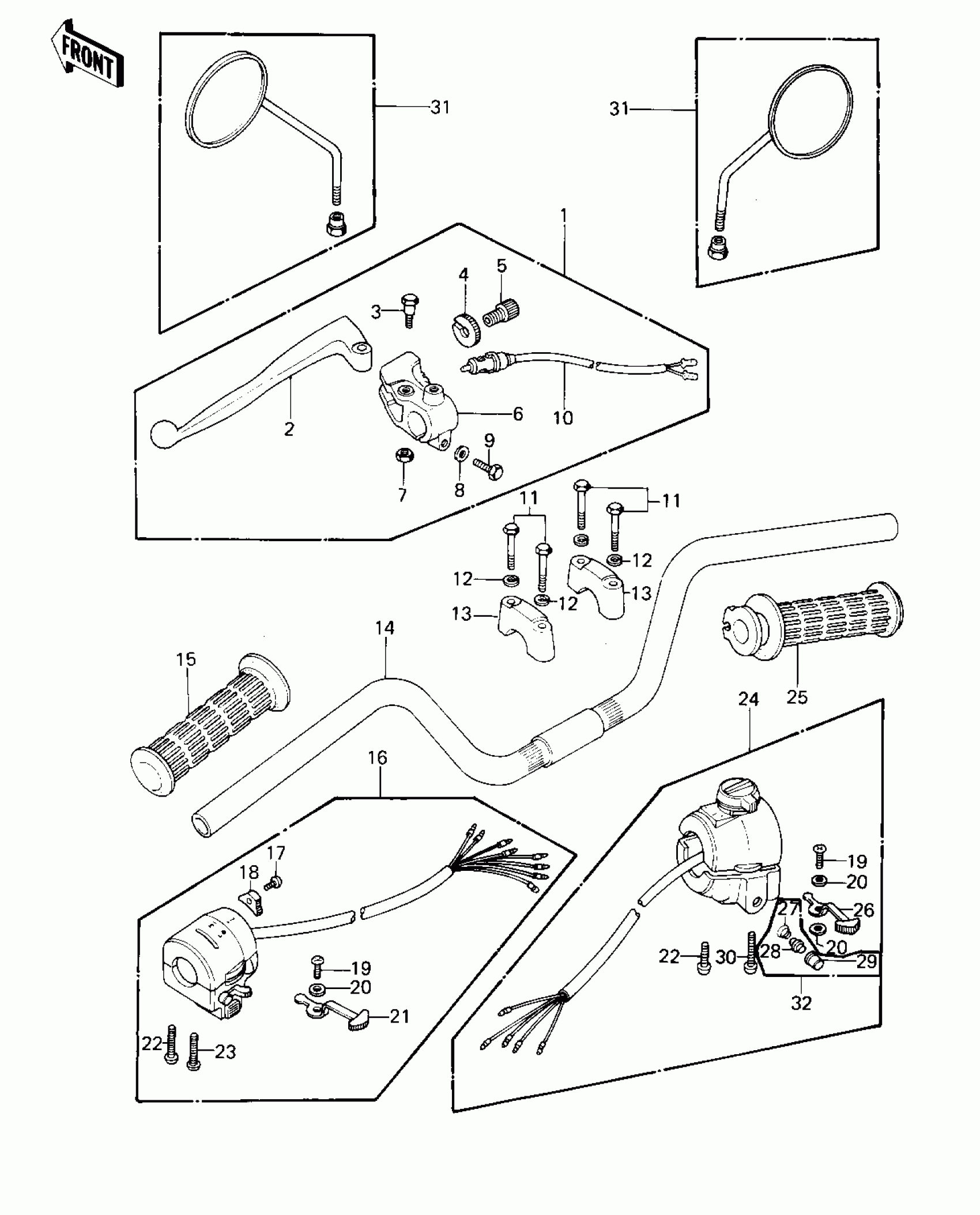

Kawasaki KZ1000 HANDLEBAR ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

LEVER ASSY,CLUTCH

46076-054

$104.73

2

LEVER-GRIP,CLUTCH

46092-023

$36.65

3

BOLT,HEX HEAD

92007-047

Unavailable

4

NUT,CABLE ADUST NUT

46056-007

Unavailable

5

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

6

HOLDER,CLUTCH LEVER

46094-019

$72.21

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

SWITCH,CLUTCH

27043-002

Unavailable

11

BOLT 8X38

92001-1405

$12.52

12

WASHER SPRING 8MM

461F0800

Unavailable

13

HOLDER-HANDLE,UPP

46012-008

$33.69

14

HANDLEBAR

46003-039

Unavailable

15

RUBBER,L.H GRIP

46075-028

$40.75

16

CASE ASSY,L.H

46091-055

Unavailable

17

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

18

KNOB,LIGHTING SW L.H

46044-013

$11.83

19

SCREW PAN HEAD 3X5

220B0305A

$0.54

20

WASHER

92095-010

Unavailable

21

KNOB,LIGHTING SW L.H

46043-005

Unavailable

22

SCREW PAN HEAD 5X30

220B0530

Unavailable

23

SCREW-PAN-CROS

220B0540

Unavailable

24

HOUSING ASSY,R.H. CO

46091-1031

Unavailable

24

HOUSING ASSY,R.H. CO

46091-1031

Unavailable

24

HOUSING ASSY,R.H.

46091-1038

Unavailable

24

HOUSING ASSY,R.H.

46091-1038

Unavailable

24

HOUSING ASSY,R.H.

46091-1038

Unavailable

25

UNAVAILABLE IN PRICE BOOK

46019-308

Unavailable

26

KNOB,LIGHTING SW R.H

46043-004

Unavailable

27

SWITCH,PUSH BUTTON

27010-1009

$7.01

28

SWITCH,PUSH BUTTON

27010-1009

$7.01

29

SWITCH,PUSH BUTTON

27010-1009

$7.01

30

SCREW-PAN-CROS

220B0540

Unavailable

31

REAR VIEW MIRROR

56001-1030

$112.90

32

SWITCH,PUSH BUTTON

27010-1009

$7.01
