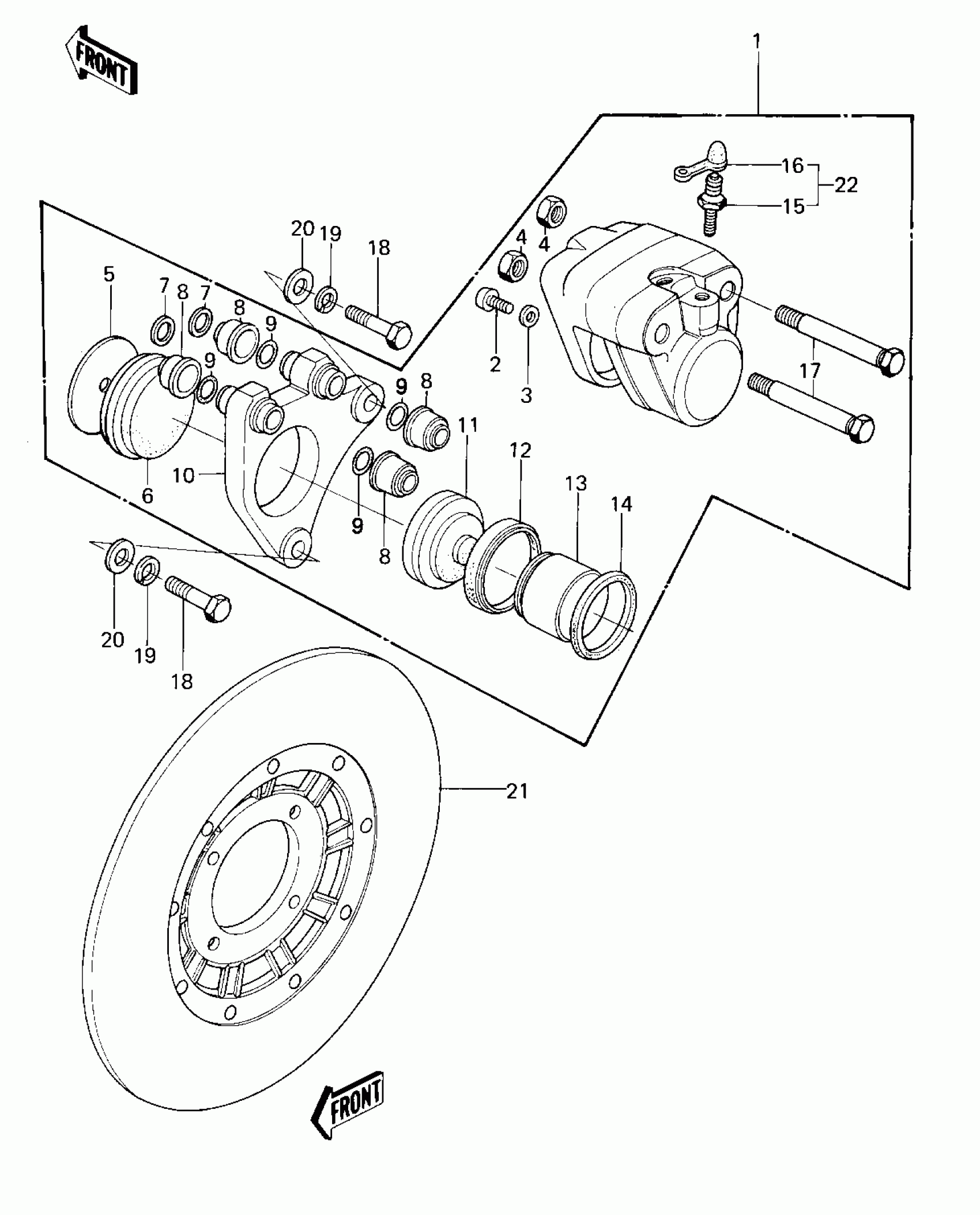

Kawasaki KZ1000 FRONT BRAKE ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

CALIPER ASSY,FRONT

43041-029

$287.57

1

CALIPER ASSY,FNT L.H

43041-1008

Unavailable

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

NUT-HEX-FINE,10MM

315B1000

Unavailable

5

SPACER

43040-004

Unavailable

6

PAD B

43050-1005

Unavailable

7

PLUG

43088-002

Unavailable

8

DUST SHILD,SHAFT

43052-005

Unavailable

9

"0" RING

43053-006

Unavailable

10

HOLDER,CALIPER

43044-008

$116.98

10

HOLDER,CALIPER

43044-009

$114.27

11

PAD A

43050-1004

Unavailable

12

DUST SEALD,RUBBER

43054-003

Unavailable

13

PISTON,FRONT CALIPER

43048-009

Unavailable

14

PACKING,PISTON SEAL

43049-002

$10.56

15

BREATHER

43056-003

$19.94

16

CAP-BREATHER

43057-003

$1.74

17

BOLT

43045-006

$42.74

18

BOLT

92007-032

$13.15

19

WASHER SPRING 10MM

461F1000

Unavailable

20

WASHER PLAIN 10MM

410B1000

Unavailable

21

DISC PLATE,FRONT

41080-005

$525.38

22

BLEEDER SET

43085-001

$19.94
