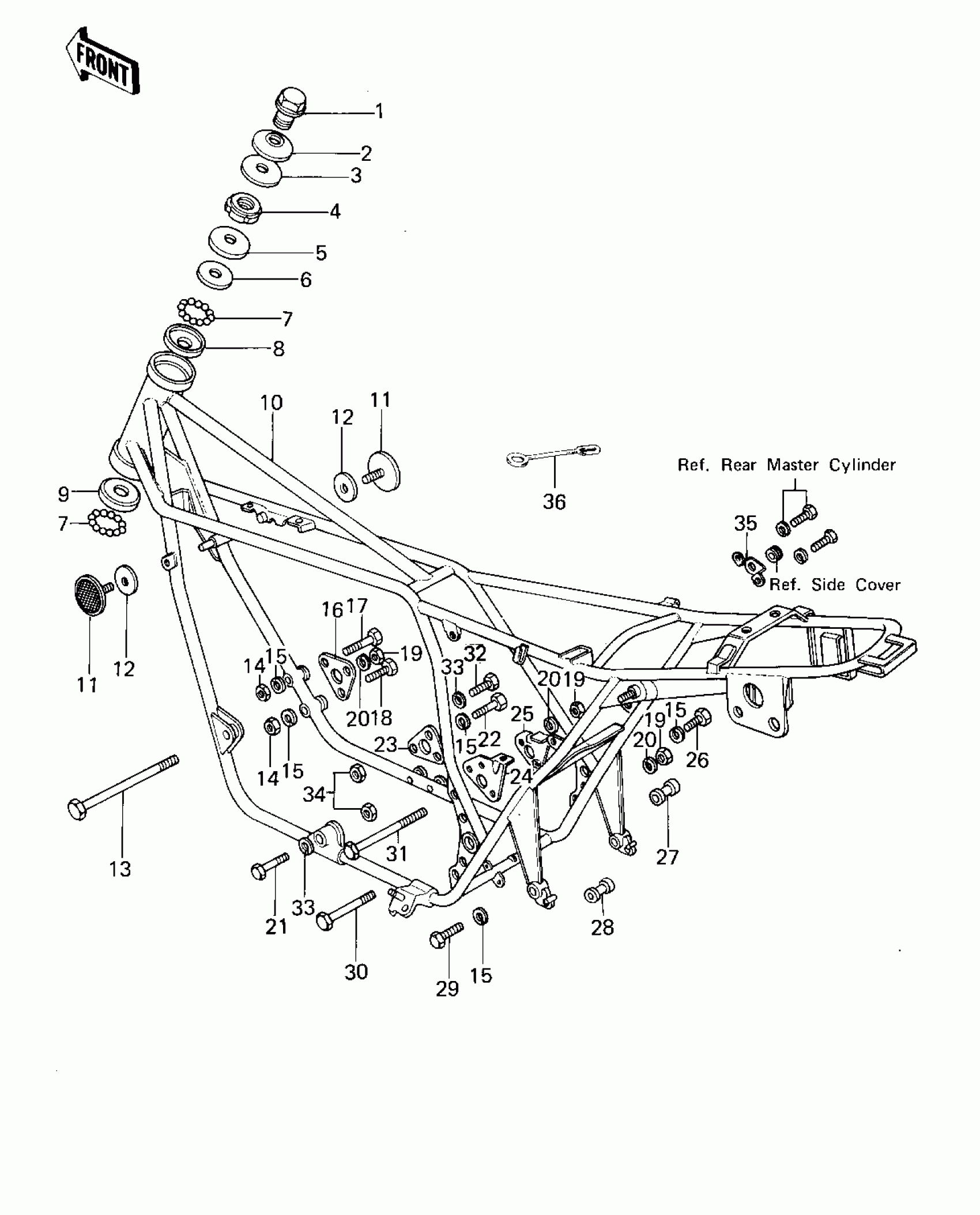

Kawasaki KZ1000 FRAME/FRAME FITTINGS ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

BOLT,16X25.5

92007-031

Unavailable

2

WASHER,16X41X4

92022-230

$11.42

3

WASHER,WAVE

46100-003

Unavailable

4

NUT,30MM

92090-007

$8.91

5

CAP, STEERING STEM

46098-010

$5.66

6

RACE,STEERING STEM BEARING

92047-011

$13.85

7

BALL-STEEL,1/4

600A0800

$0.59

8

RACE,STEERING STEM BEARING

92048-006

$8.83

9

RACE,STEERING STEM BEARING

92048-008

$12.16

10

FRAME

32002-1017

$1,352.44

10

FRAME

32002-1017

$1,352.44

11

REFLECTOR-REFLEX,FR

28012-016

$18.77

12

DAMPER,REFLECTOR

92094-011

$4.08

13

BOLT,ENGINE MOUNTING

92091-022

Unavailable

14

NUT,8MM

311B0800

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

PLATE,ENG MOUNT FRON

32030-025

Unavailable

17

BOLT,8X63

92001-1397

$3.91

18

BOLT,HEX HEAD,8X59

110G0859

Unavailable

19

UNAVAILABLE IN PRICE BOOK

92019021

Unavailable

20

WASHER SPRING 10MM

461F1000

Unavailable

21

BOLT,HEX HEAD,12X55

92001-1262

Unavailable

22

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

23

PLATE,ENG MOUNT LOWER

32030-026

$17.49

24

PLATE,REAR ENGINE,L.H

32030-066

Unavailable

25

UNAVAILABLE IN PRICE BOOK

32030-06

Unavailable

26

BOLT

92001-1578

$6.54

27

COLLAR,ENG MOUNTING

92027-160

Unavailable

28

COLLAR,ENG MOUNTING

92027-159

$26.86

29

BOLT,FLANGED,8X35

92001-1577

Unavailable

30

BOLT,ENGINE MOUNTING

92003-099

Unavailable

31

BOLT,ENGINE MOUNTING

92091-023

Unavailable

32

BOLT,HEX HEAD,12X70

92001-1265

Unavailable

33

WASHER-SPRING,12MM

461F1200

Unavailable

34

UNAVAILABLE IN PRICE BOOK

92016045

Unavailable

35

BRACKET,SIDE COV,R.H

32049-101

Unavailable

36

CLAMP,OVER FLOW PIPE

92037-134

$11.03
