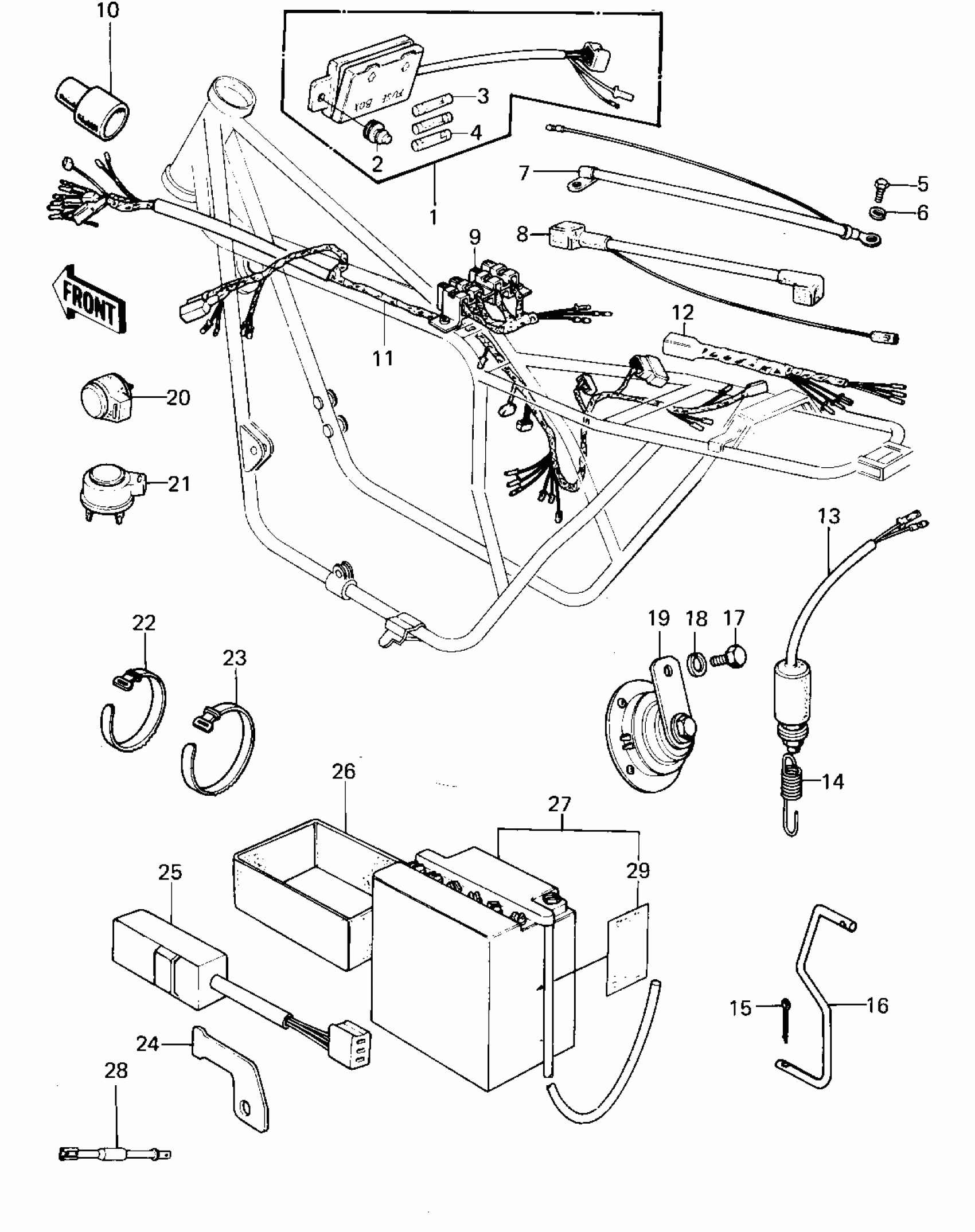

Kawasaki KZ1000 CHASSIS ELECTRICAL EQUIPMENT ('77-'78 A1 Diagram

#

Description
Price

1

FUSE-ASSY

26004-035

Unavailable

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE,10A,L=25

26006-003

$3.59

5

BOLT,6X10

92001-137

$5.66

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WIRE,BATTERY GROUND

26010-054

Unavailable

8

WIRE,STARTER LEAD

26010-053

$40.24

9

WIRING HARNESS,CENTE

26002-057

Unavailable

10

COVER WIRING HARNESS

26009-003

Unavailable

11

WIRING HARNESS,MAIN

26001-145

Unavailable

11

WIRING HARNESS,MAIN

26001-1035

$306.80

12

WIRING HARNESS,REAR

26002-031

Unavailable

13

SWITCH-BRAKE LAMP

27010-017

Unavailable

14

SPRING BRAKE LAMP SW

27011-009

Unavailable

15

PIN COTTER 1.6X10

550D1610

Unavailable

16

HOOK,BRK LAMP SW SPR

27012-010

Unavailable

17

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

18

WASHER SPRING 8MM

461F0800

Unavailable

19

HORN

27003-1006

Unavailable

19

HORN

27003-1006

Unavailable

20

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

21

RELAY,TURN SIGNAL

27002-016

Unavailable

22

BAND,L=123

92072-030

$3.81

22

BAND,L=123

92072-030

$3.81

23

BAND,L=186

92072-056

$3.81

23

BAND,L=186

92072-056

$3.81

24

BRACKET,OUTAGE SWITCH

32060-014

$12.03

25

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

26

CASE,BATTERY

32099-015

Unavailable

27

YUA BAT YB14L-A2

26012-1008

$84.21

27

YUA BAT YB14L-A2

26012-1008

$84.21

28

REGULATOR

21066-026

Unavailable

29

LABEL-WARNING,BATTERY

56040-1036

Unavailable
