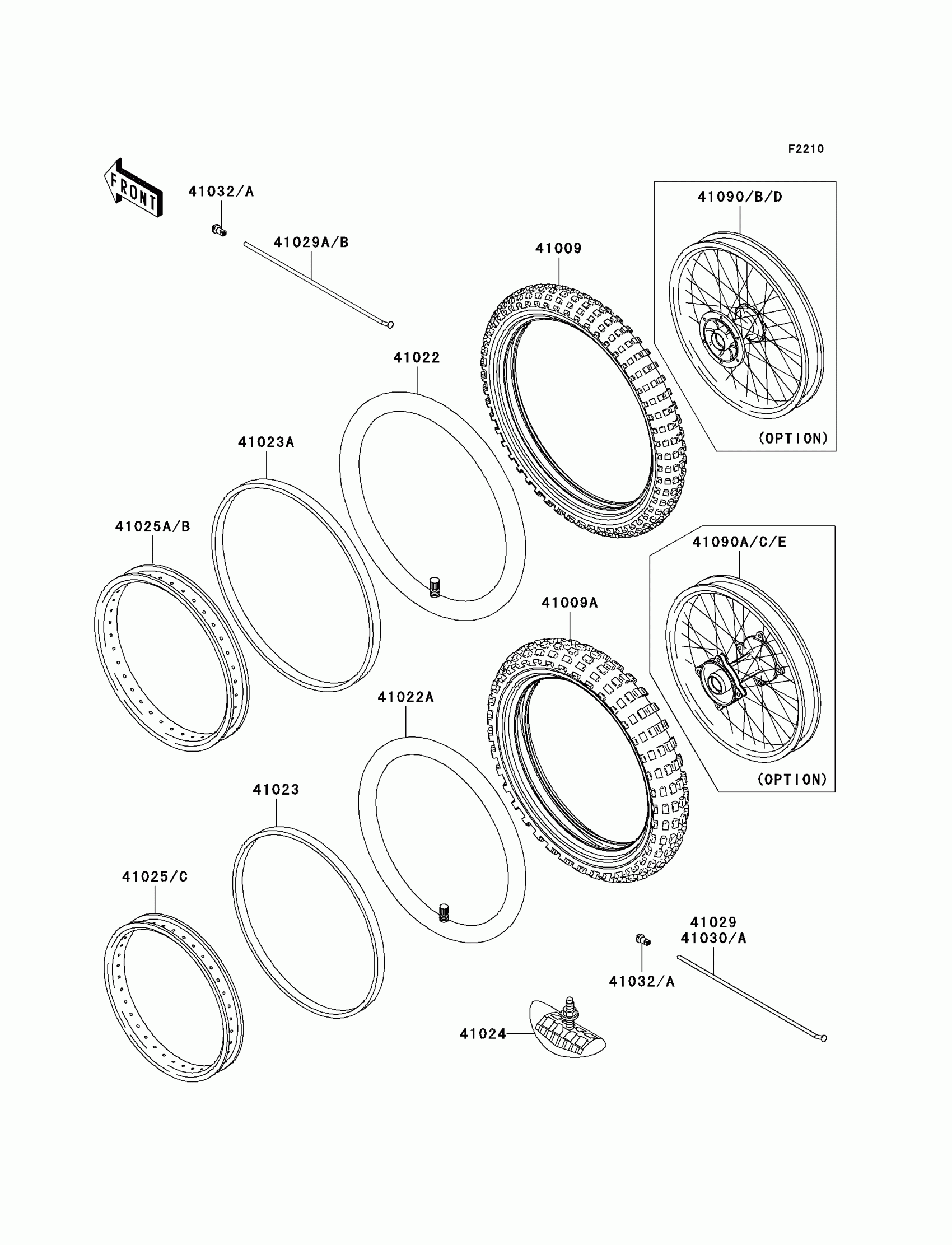

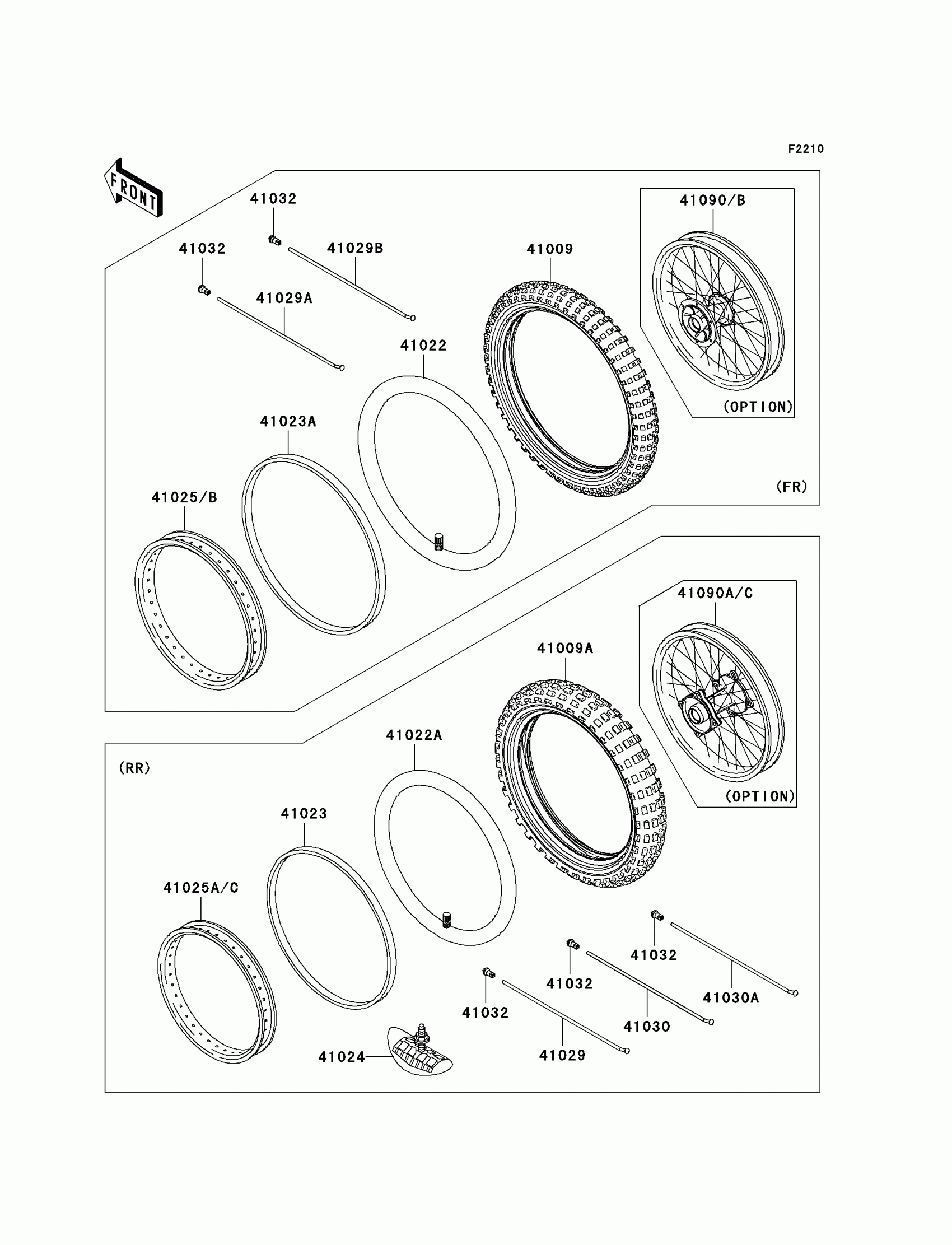

Kawasaki KX85 Wheels/Tires Diagram

TIRE,FR,70/100-17 40M,D756F(D)

41009-0113

$123.27

TIRE,RR,90/100-14 49M,D756(D)

41009-0114

$148.07

TUBE-TIRE,70/100-17(D)

41022-1124

$50.05

TUBE-TIRE,90/100-14(D)

41022-1125

$50.05

BAND-RIM,80/100-14(D)

41023-1068

$13.87

BAND-RIM,100/90-17(D)

41023-1082

$13.87

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$51.74

RIM,FR,1.40X17

41025-1443

$377.52

RIM,RR,1.60X14

41025-1444

$377.52

SPOKE-INNER,RR,157MMX170D

41029-1274

$3.69

SPOKE-INNER,FR,RH,187MMX166D

41029-1290

$3.69

SPOKE-INNER,FR,LH,183MMX166D

41029-1291

$3.69

SPOKE-OUTER,RR,RH,149MMX172D

41030-1150

$3.69

SPOKE-OUTER,RR,LH,153MMX172D

41030-1160

$3.69

NIPPLE-SPOKE,8X9X20(+),STEEL

41032-1077

$3.72

WHEEL,FR,1.40X17

41090-0006

$672.48

WHEEL,RR,1.60X14

41090-0007

$672.48
