Description

Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1261

$127.77

13128

SHAFT-TRANSMISSION OUTPUT

13128-0022

$128.87

13129

GEAR,OUTPUT LOW,33T

13129-1725

$85.64

13129A

GEAR,OUTPUT 6TH,22T

13129-1730

$85.64

13144

SPROCKET-OUTPUT,14T

13144-1022

$23.92

13144A

SPROCKET-OUTPUT,13T

13144-1023

Unavailable

13260

GEAR,INPUT 2ND,16T

13260-1014

$69.72

13260A

GEAR,INPUT 5TH,22T

13260-1950

$88.37

13260B

GEAR,INPUT 6TH,23T

13260-1951

$88.37

13262

GEAR,INPUT 3RD&4TH,18&20T

13262-0180

$127.23

13262A

GEAR,OUTPUT 5TH,24T

13262-0181

$89.50

13262B

GEAR,OUTPUT 2ND,30T

13262-0298

$91.31

13262C

GEAR,OUTPUT 3RD,27T

13262-0299

$91.31

13262D

GEAR,OUTPUT 4TH,25T

13262-0300

$91.31

92026

SPACER,18X23X0.50

92026-1602

$1.92

92033

RING-SNAP

92033-028

$8.79

92033A

RING-SNAP,18MM

92033-1079

$4.26

92055

RING-O,17.5X1.5

92055-022

$6.22

92152

COLLAR,20X25X12.9

92152-0195

$13.57

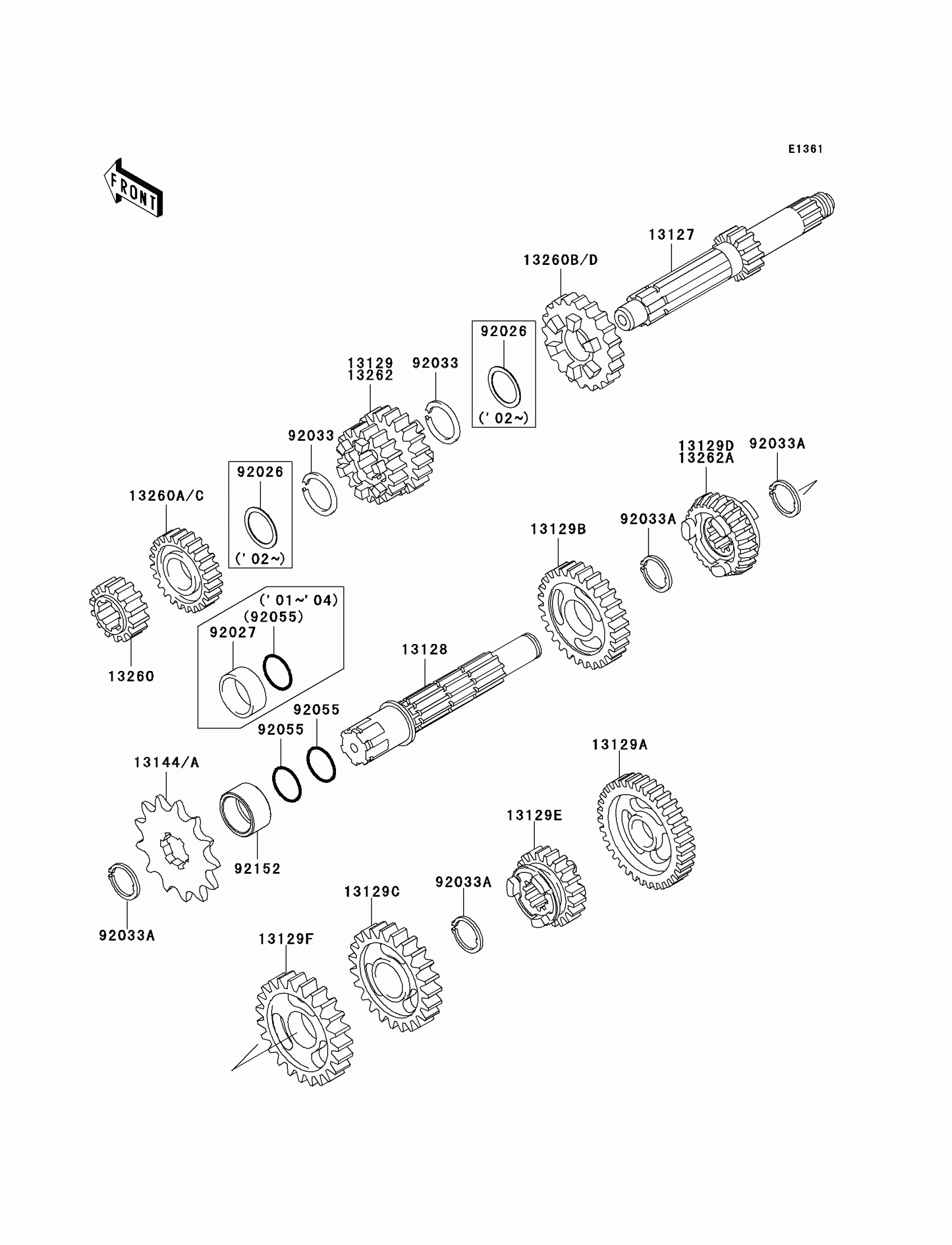

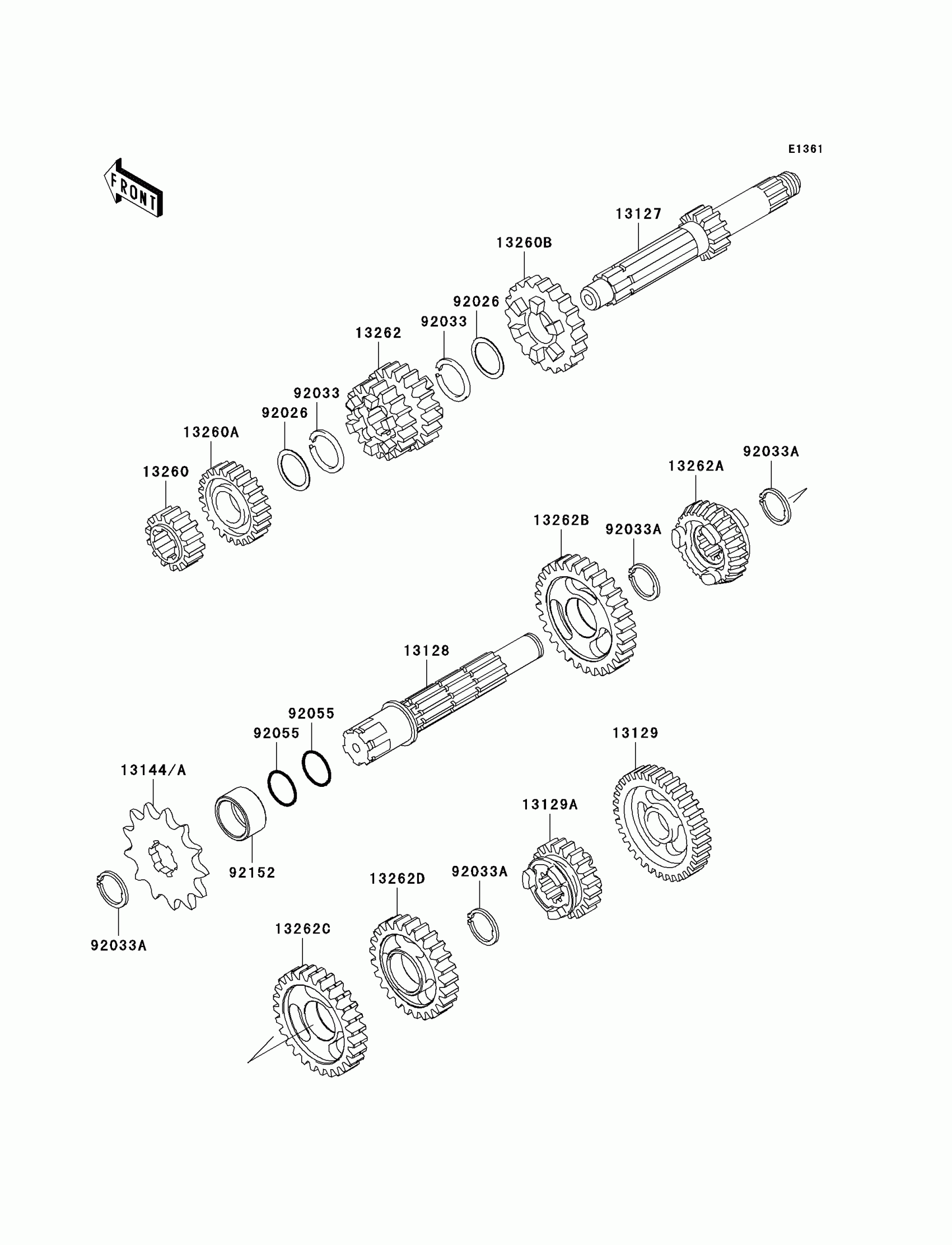

Kawasaki KX85 Transmission Diagram

SHAFT-TRANSMISSION INPUT,13T

SHAFT-TRANSMISSION OUTPUT

GEAR,OUTPUT LOW,33T

GEAR,OUTPUT 6TH,22T

SPROCKET-OUTPUT,14T

SPROCKET-OUTPUT,13T

GEAR,INPUT 2ND,16T

GEAR,INPUT 5TH,22T

GEAR,INPUT 6TH,23T

GEAR,INPUT 3RD&4TH,18&20T

GEAR,OUTPUT 5TH,24T

GEAR,OUTPUT 2ND,30T

GEAR,OUTPUT 3RD,27T

GEAR,OUTPUT 4TH,25T

SPACER,18X23X0.50

RING-SNAP

RING-SNAP,18MM

RING-O,17.5X1.5

COLLAR,20X25X12.9
