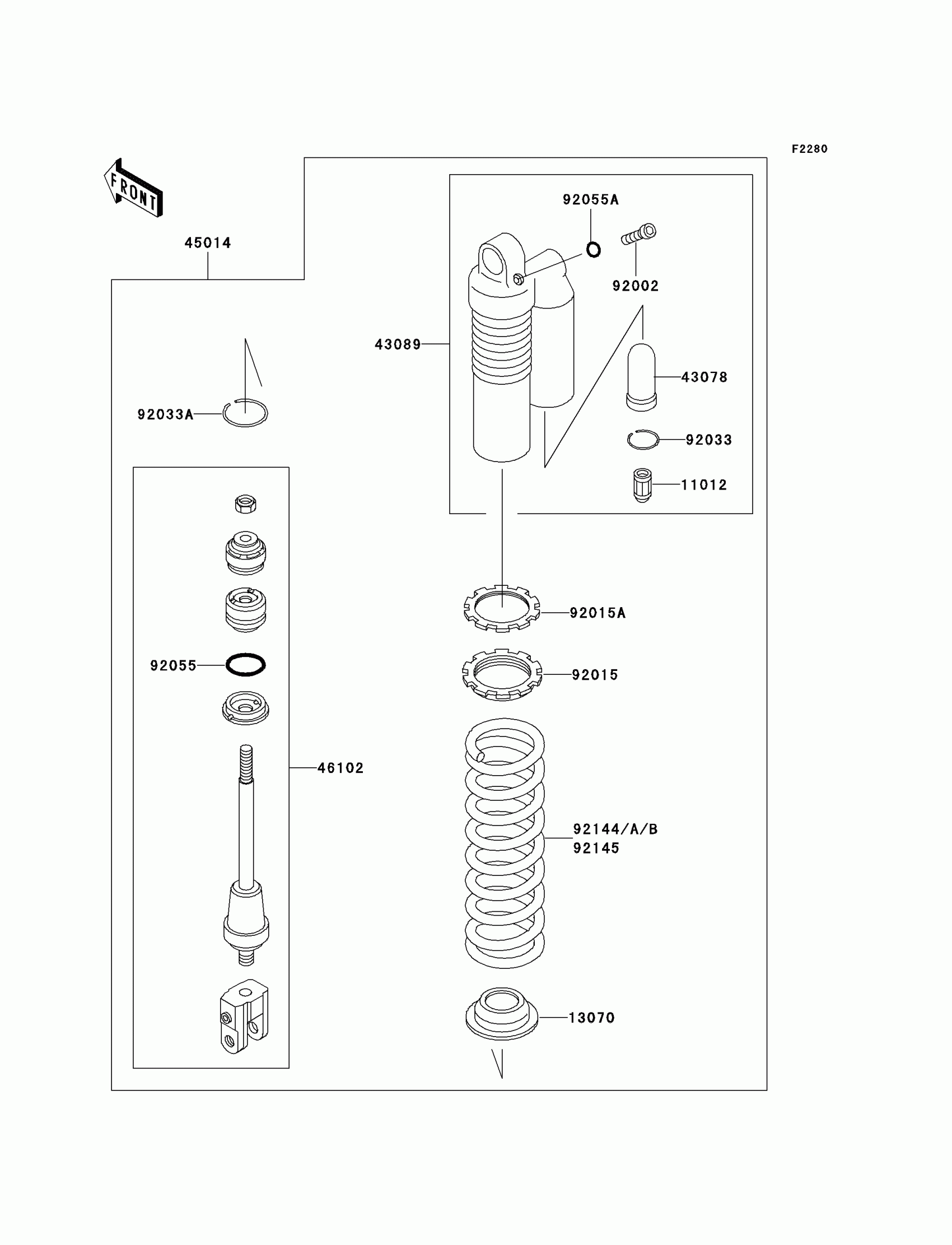

Kawasaki KX85 Shock Absorber(s) Diagram

CAP,VALVE AIR

11012-1391

$5.73

GUIDE,SPRING

13070-1233

$33.90

RESERVOIR,SHOCKABSORBER

43078-1112

$86.55

CYLINDER-SHOCKABSORBER,GOLD

43089-0008-829

$518.09

SHOCKABSORBER,SPG. BLACK

45014-5045

$966.63

ROD,SHOCKABSORBER

46102-1411

$692.48

BOLT,DRAIN

92002-1955

$11.16

NUT,SPRING ADJUST

92015-1679

$35.12

NUT,SPRING ADJUST LOCK

92015-1713

$35.12

RING-SNAP,REARSHOCK

92033-1091

$4.96

RING-SNAP,SHOCKABSORBER

92033-1211

$4.26

RING-O,ROD

92055-1334

$7.34

RING-O

92055-1383

$4.11

SPRING,SHOCK,K=45.1N/MM,BLACK

92144-1570-17D

$385.72

SPRING,SHOCK,K=49.0N/MM,BLACK

92144-1571-17D

$385.72

SPRING,SHOCK,K=47.0N/MM,BLACK

92144-1945-17D

$385.72

SPRING,SHOCK,K=43.1N/MM,BLACK

92145-1371-17D

$385.72
