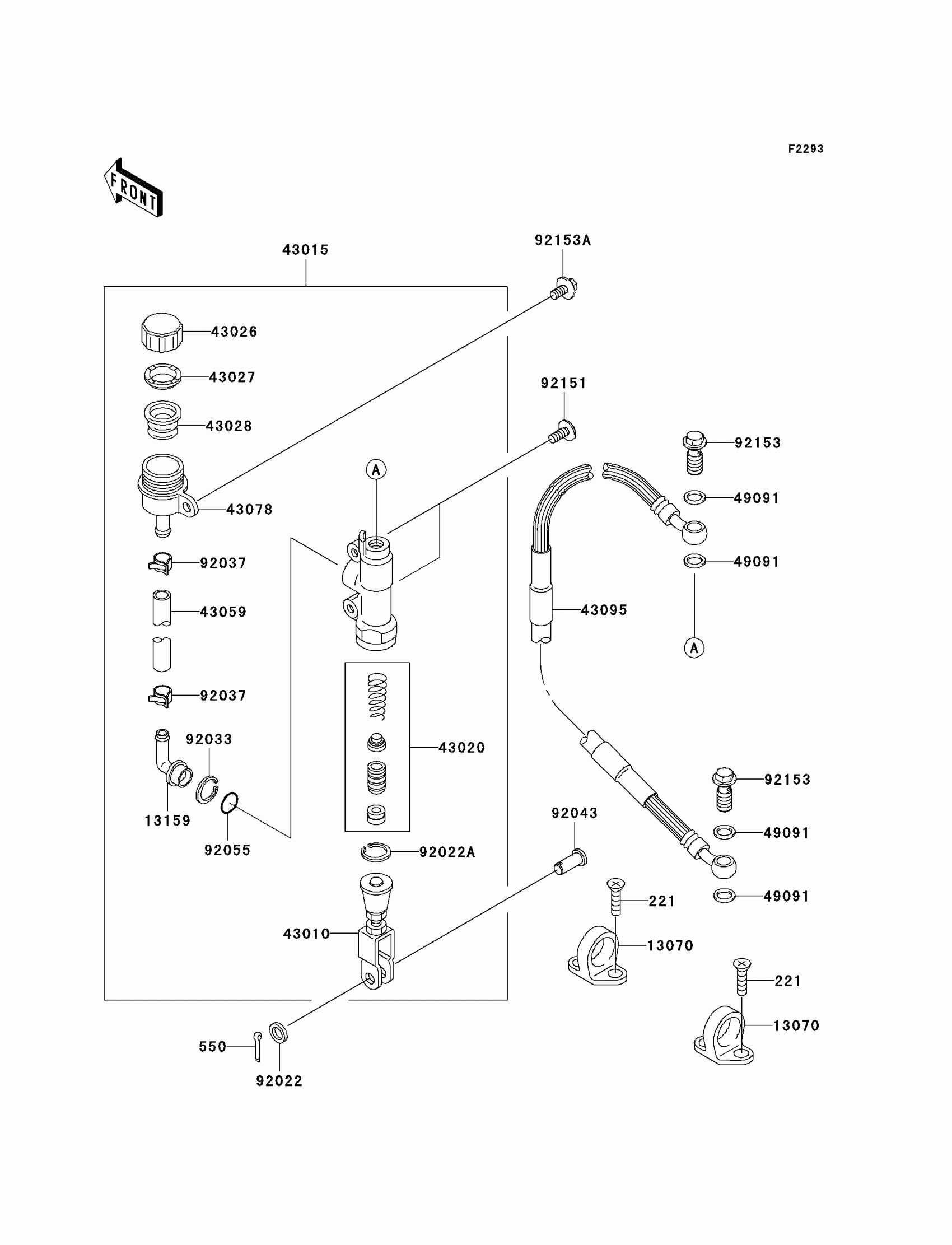

Kawasaki KX85 Rear Master Cylinder Diagram

#

Description
Price

221

SCREW-CSK-CROS,5X10

221B0510

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

13070

GUIDE,HOSE

13070-1144

$6.13

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1079

$37.68

43015

CYLINDER-ASSY-MASTER,RR

43015-1606

$216.33

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1058

$34.24

43027

PLATE-DIAPHRAGM

43027-1052

$3.88

43028

DIAPHRAGM

43028-1060

$16.34

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1670

$24.02

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1068

$28.80

43095

HOSE-BRAKE,RR,L=542

43095-1233

$87.30

92002

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,8.5X13X1

92022-1028

$2.99

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN

92043-0004

$8.49

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,6X14

92150-1340

$3.86

92172

SCREW,6X14

92172-0107

$1.81
