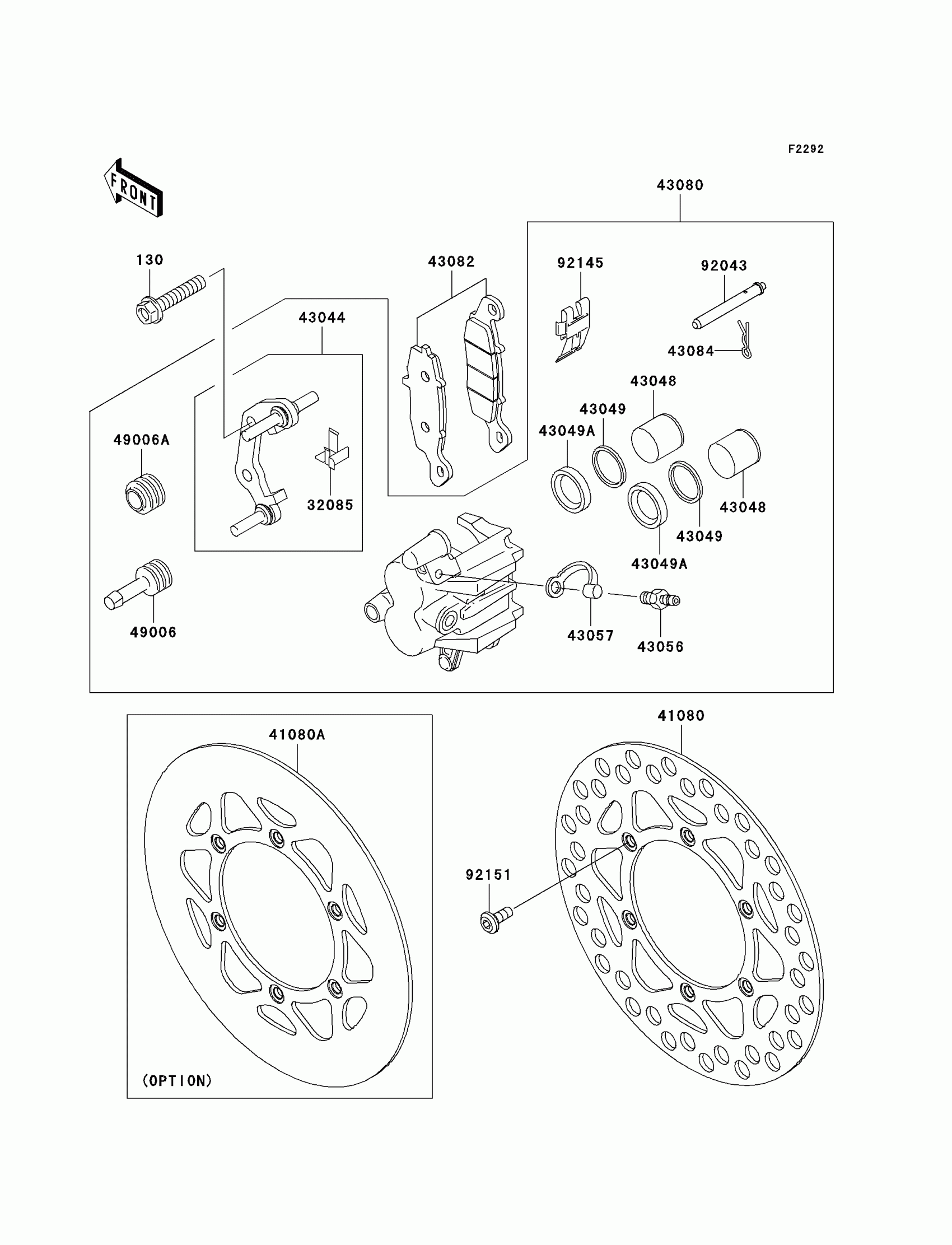

Kawasaki KX85 Front Brake Diagram

#

Description
Price

130

BOLT-FLANGED,8X40

130CA0840

$1.11

32085

STOPPER

32085-1437

$12.42

41080

DISC,FR

41080-0111

$204.51

41080A

DISC,FR

41080-0112

$224.18

43044

HOLDER-COMP-CALIPER,FR

43044-1119

$120.75

43048

PISTON-CALIPER

43048-1083

$51.26

43049

PACKING,PISTON

43049-1059

$6.48

43049A

PACKING,PISTON SEAL

43049-1090

$4.61

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH

43080-0008

$175.72

43082

PAD-ASSY-BRAKE

43082-1196

$47.28

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1055

$5.55

92043

PIN,PAD

92043-1356

$10.25

92145

SPRING,PAD

92145-1260

$14.58

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
