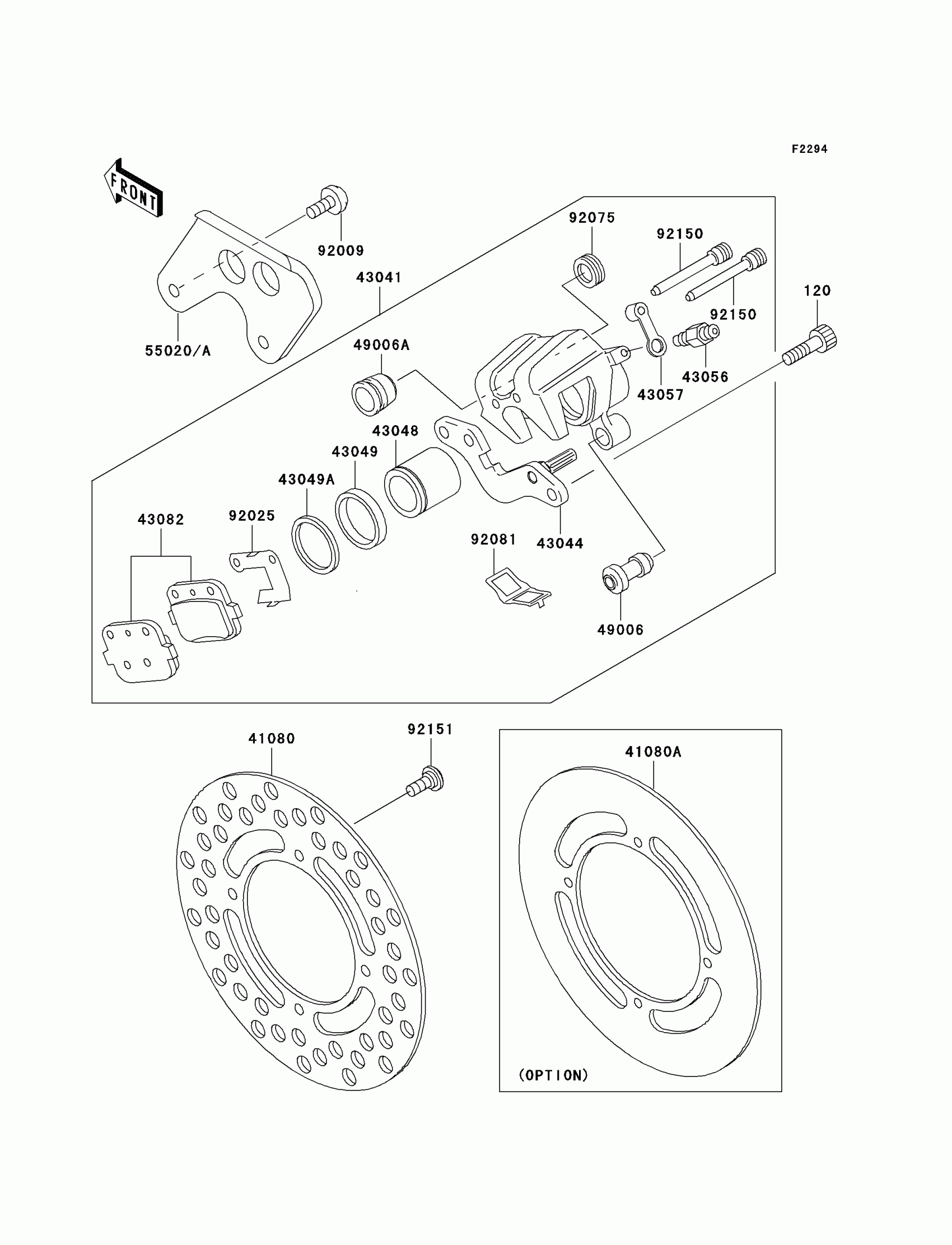

Kawasaki KX85 Rear Brake(A1-A3) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

41080

DISC,RR

41080-1492

$193.68

41080A

DISC,RR

41080-1493

$216.71

43041

CALIPER-XUB-ASSY,RR

43041-1815

$297.33

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-1064

$60.27

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE

43082-1205

$47.18

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1089

$5.64

55020

GUARD,CALIPER,WHITE

55020-1247-RZ

$22.44

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92025

SHIM,PAD

92025-1817

$9.02

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.54

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
