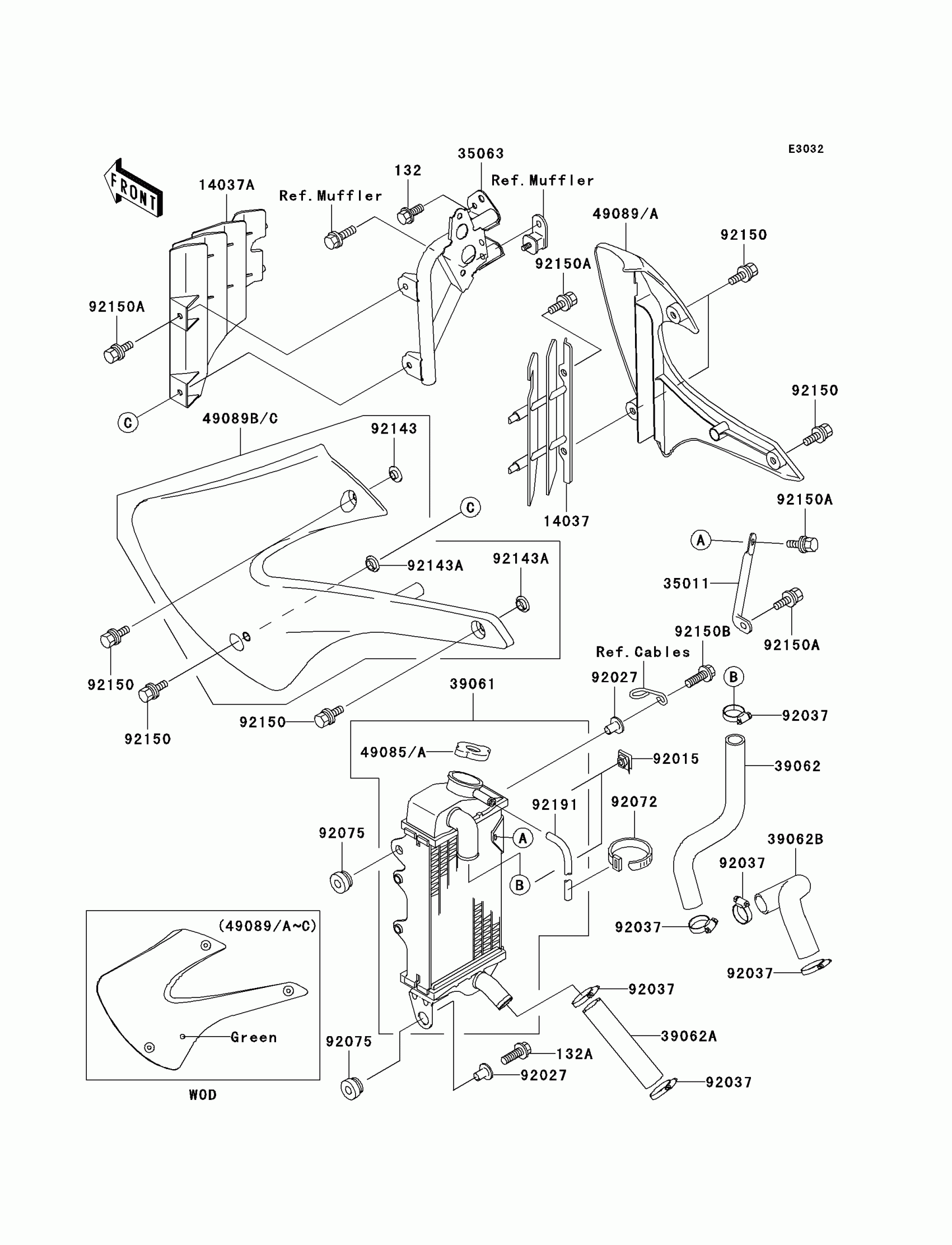

Kawasaki KX85 Radiator Diagram
#
Description
Price
14037A
SCREEN,RH,BLACK
14037-1249-6D
$41.86
14037C
SCREEN,LH,BLACK
14037-1282-6D
$41.86
35011
STAY
35011-1845
$14.44
35063
STAY
35063-1137
$71.81
39061
RADIATOR-ASSY
39061-1245
$488.97
39062
HOSE-COOLING,HEAD-RADIATOR
39062-1425
$34.20
39062A
HOSE-COOLING,RADIATOR-PUMP
39062-1711
$16.50
39062B
HOSE-COOLING,CYLINDER PUMP
39062-1712
$25.83
49085
CAP-ASSY-PRESSURE,P1.1
49085-1070
$50.52
49085A
CAP-ASSY-PRESSURE,P1.6
49085-1073
$50.52
49089
SHROUD-ENGINE,RH,L.GREEN
49089-1139-290
$47.76
49089B
SHROUD-ENGINE,LH,L.GREEN
49089-1146-290
$48.02
92015
NUT
92015-1487
$4.80
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92072
BAND,L=186
92072-056
$5.00
92075
DAMPER
92075-1352
$6.52
92143
COLLAR
92143-1087
$4.31
92143A
COLLAR
92143-1196
$4.69
92151
BOLT,6X12
92151-1133
Unavailable
92151A
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92152
COLLAR
92152-0666
$6.75
92153
BOLT,6X12
92153-0503
$2.80
92153A
BOLT,FLANGED,6X14
92153-0936
$2.97
92153B
BOLT,FLANGED WP,6X25
92153-1008
$2.63
92191
TUBE,6X9X700
92191-1211
$9.64
