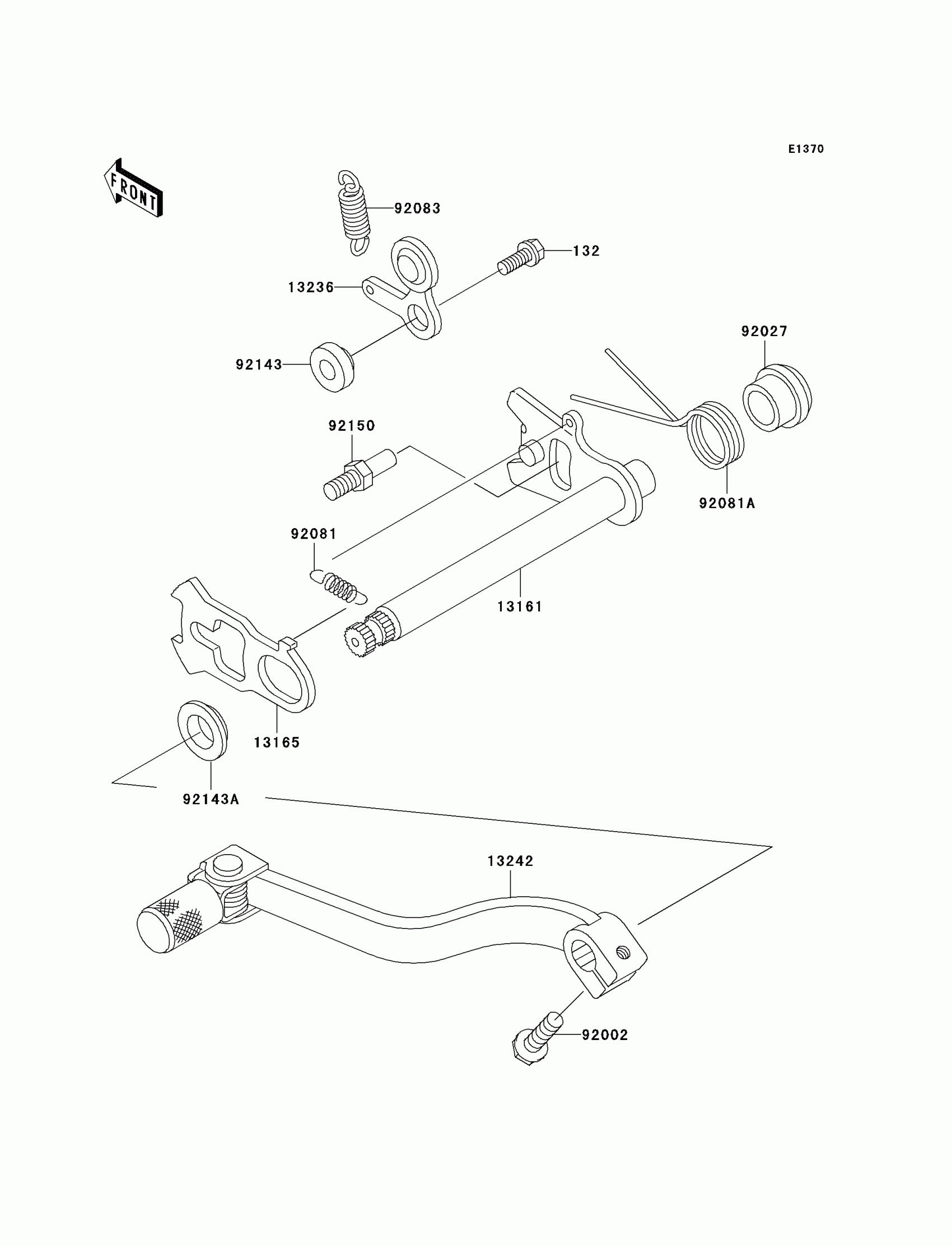

Kawasaki KX85 Gear Change Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-1126

$48.10

13165

PAWL,CHANGE LEVER

13165-1114

$11.12

13236

LEVER-COMP,POSITION

13236-1152

$7.36

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1286

$48.58

92002

BOLT,6X20

92002-1237

$3.29

92027

COLLAR

92027-1940

$7.54

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,CHANGE SHAFT RETURN

92081-1716

$7.48

92083

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

92143

COLLAR

92143-1055

$5.61

92143A

COLLAR

92143-1995

$3.75

92150

BOLT,RETURN SPRING

92150-1467

$5.69
