Description

Price

601

BEARING-BALL

601A6001

$8.88

13087

HUB-CLUTCH

13087-1170

$59.93

13088

PLATE-FRICTION

13088-1016

$10.56

13089

PLATE-CLUTCH

13089-1120

$6.36

13095

HOUSING-COMP-CLUTCH

13095-1406

$250.96

13187

PLATE-CLUTCH OPERATING

13187-1013

$44.43

13236

LEVER-COMP,RELEASE

13236-1298

$28.79

46102

ROD,CLUTCH RELEASE

46102-1409

$16.52

92025

SHIM

92025-1780

$1.76

92028

BUSHING,20X25X21.1

92028-1811

$13.06

92046

BEARING-NEEDLE,KT252910EG

92046-1254

$9.47

92081

SPRING,CLUTCH

92081-1492

$5.64

92150

BOLT,6X20,WASHER

92150-1715

$3.01

92200

WASHER,20.3X33X2.0

92200-1351

$1.89

92200A

WASHER,20X30X2.6

92200-1352

$2.99

92210

NUT,16MM

92210-1113

$12.62

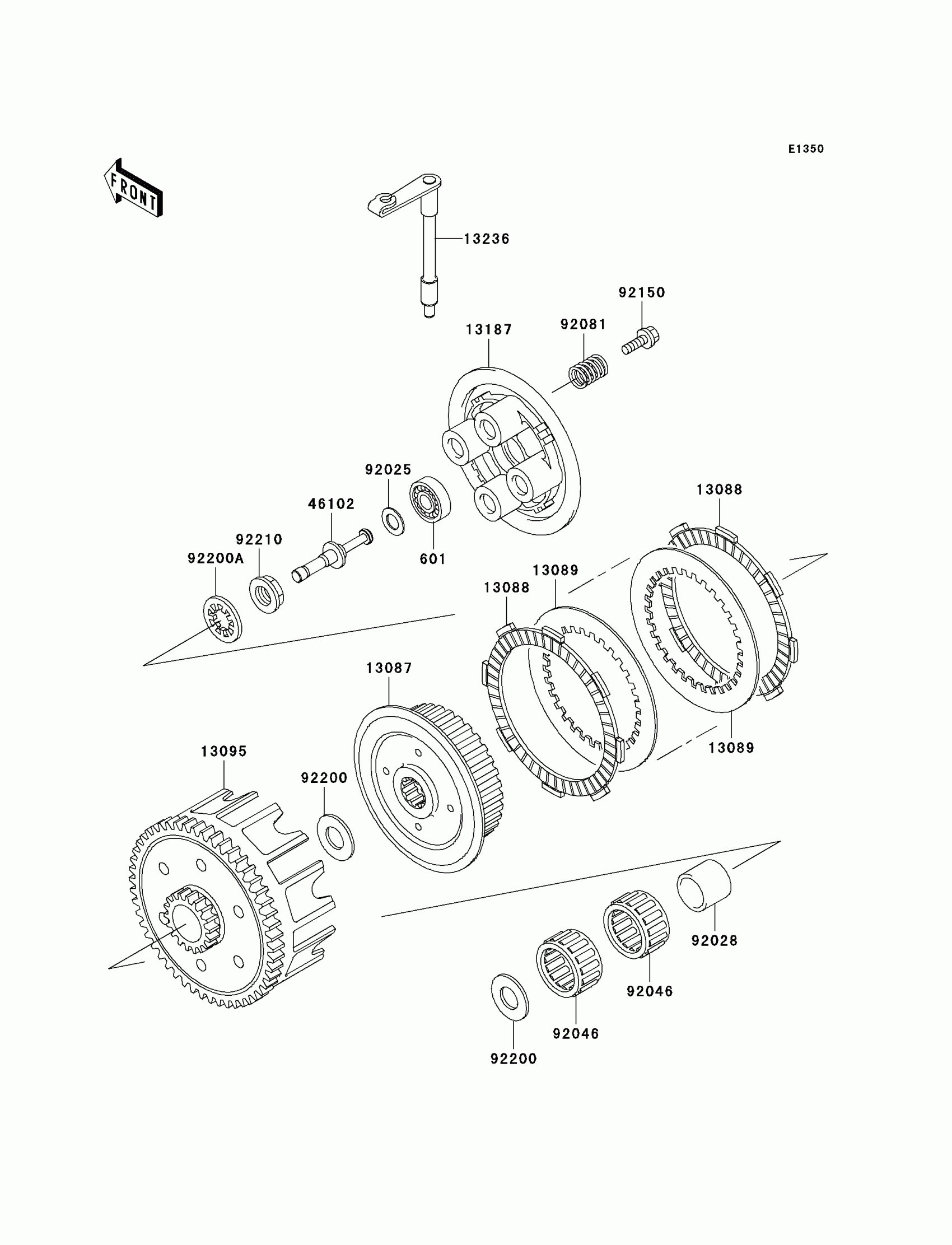

Kawasaki KX85 Clutch Diagram
