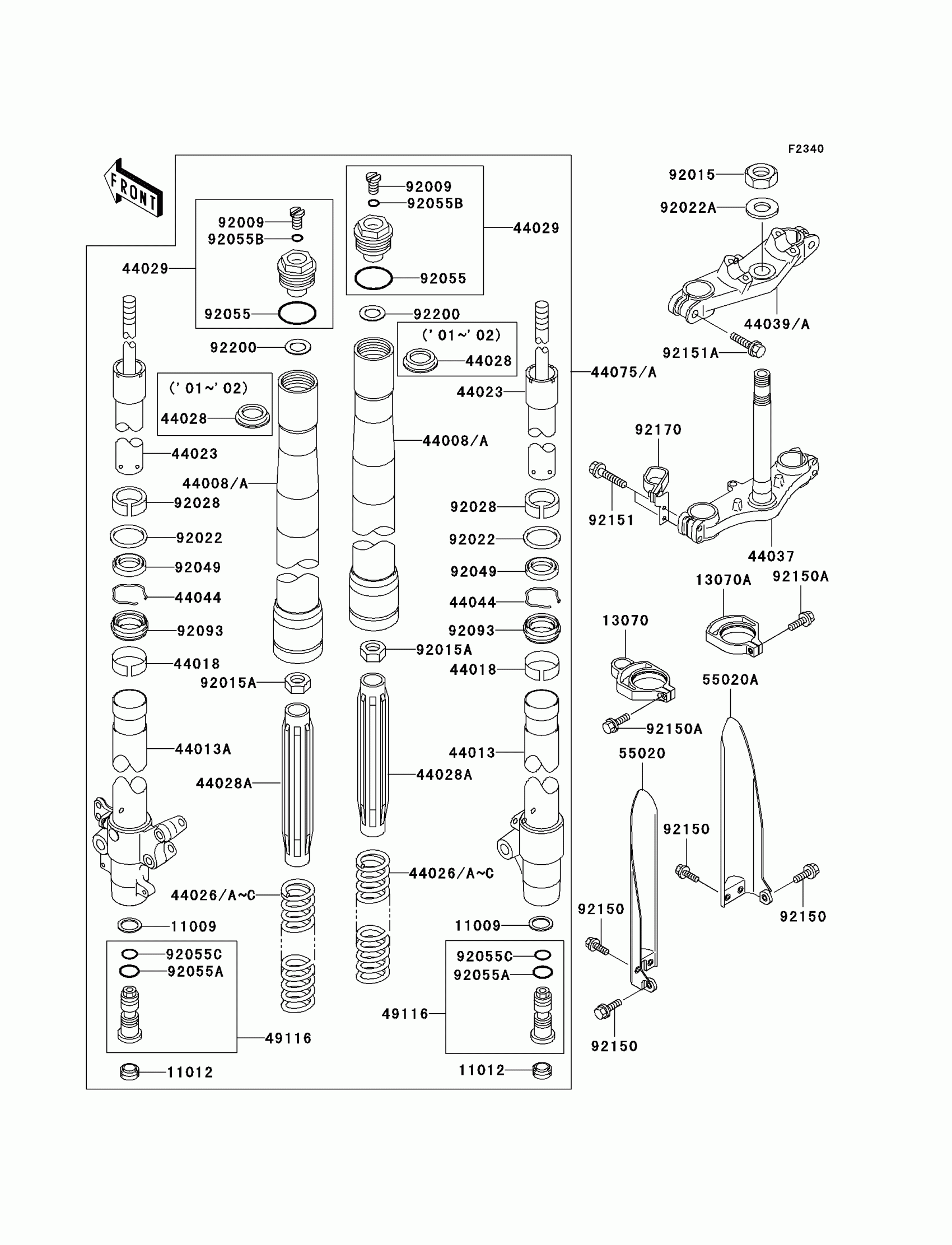

Kawasaki KX85 Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP
11012-1692
$6.16
13070
GUIDE,PROTECTOR,LH,WHITE
13070-1310-RZ
Unavailable
13070A
GUIDE,PROTECTOR,RH,WHITE
13070-1311-RZ
Unavailable
44008
PIPE-FORK OUTER,BRONZE
44008-1041-JS
$498.20
44013
PIPE-FORK INNER,RH
44013-1442
$305.25
44013A
PIPE-FORK INNER,LH
44013-1484
$270.31
44018
PISTON-FORK
44018-1058
$21.36
44023
CYLINDER-SET-FORK
44023-1119
$369.74
44026
SPRING-FRONT FORK,K=2.75N/MM
44026-1633
$60.49
44026A
SPRING-FRONT FORK,K=2.84N/MM
44026-1634
$60.49
44026B
SPRING-FRONT FORK,K=2.94N/MM
44026-1635
$60.49
44026C
SPRING-FRONT FORK,K=2.65N/MM
44026-1671
$64.63
44028A
GUIDE-FORK SPRING
44028-1090
$40.90
44029
SEAT-FORK SPRING
44029-1152
$67.65
44037
HOLDER-FORK UNDER
44037-1360
$324.88
44039
HOLDER-FORK UPPER,P.SILVER
44039-0023-458
$151.67
44044
RING-SNAP
44044-015
$14.94
44075
DAMPER-SET-FORK,BRONZE
44075-1130-JS
Unavailable
49116
VALVE-ASSY,FORK
49116-1153
$141.32
55020
GUARD,FORK,LH,WHITE
55020-1611-RZ
$30.07
55020A
GUARD,FORK,RH,WHITE
55020-1612-RZ
$30.07
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015A
NUT
92015-1839
$19.64
92022
WASHER,FRONT FORK
92022-1275
$7.34
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1656
$16.18
92049
SEAL-OIL,FORK OUTER TUBE
92049-1394
$19.64
92055
RING-O
92055-1123
$6.22
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O,FORK VALVE
92055-1502
$7.45
92093
SEAL,FORK OUTER TUBE
92093-1426
$22.90
92150
BOLT,6X14
92150-1340
$5.07
92150A
BOLT,5X16
92150-1802
$5.00
92151
BOLT,FLANGED,8X40
92151-1877
$5.05
92151A
BOLT,FLANGED,8X35
92151-1878
$4.76
92170
CLAMP
92170-1810
$9.49
92200
WASHER
92200-1655
$5.79
