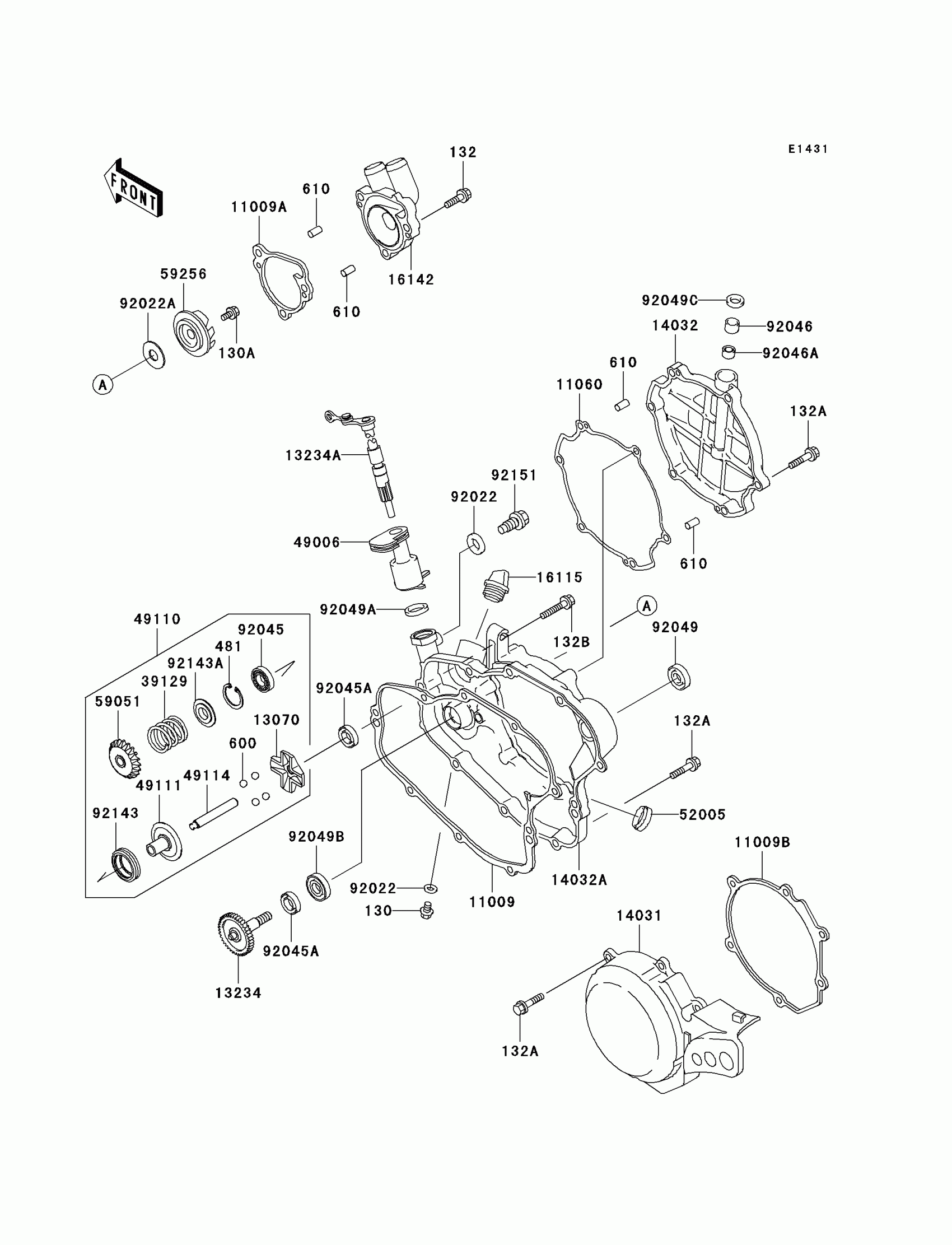

Kawasaki KX85 Engine Cover(s)(A1/A2) Diagram
#
130
BOLT-FLANGED,6X8
130B0608
$0.67
130A
BOLT-FLANGED
130P0510
$1.76
132
BOLT-FLANGED-SMALL
132G0620
$2.33
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
481
CIRCLIP-TYPE-C,24MM
481J2400
$3.40
600
BALL-STEEL,5/16
600A1000
$0.73
11009
GASKET,CLUTCH COVER
11009-1971
Unavailable
11009A
GASKET,PUMP COVER
11009-1972
$7.51
11009B
GASKET,GENERATOR COVER
11009-1973
$18.74
11060
GASKET,CLUTCH COVER
11060-1795
$17.39
13070
GUIDE,GOVERNOR
13070-1309
$53.37
13234
SHAFT-COMP,WATER PUMP
13234-1103
$71.47
13234A
SHAFT-COMP,GOVERNOR
13234-1104
Unavailable
14031
COVER-GENERATOR
14031-1241
$63.17
14032
COVER-CLUTCH,OUTSIDE
14032-1463
$83.56
14032A
COVER-CLUTCH,INSIDE
14032-1514
$213.14
16115
CAP-OIL FILLER
16115-018
$10.56
16142
COVER-PUMP,WATER
16142-1144
$77.97
39129
SPRING-GOVERNOR
39129-1022
$6.31
49006
BOOT,GOVERNOR
49006-1313
$9.40
49110
GOVERNOR-ASSY
49110-1101
$167.94
49111
HOLDER-GOVERNOR WEIGHT
49111-1064
$26.65
49114
SHAFT-GOVERNOR
49114-1101
Unavailable
52005
GAUGE,OIL LEVEL
52005-1055
$14.76
59051
GEAR-SPUR,GOVERNOR
59051-1331
$32.29
59256
IMPELLER
59256-1064
$36.12
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,5.2X13X1
92022-1380
$4.31
92045
BEARING-BALL,6901
92045-1246
$29.76
92045A
BEARING-BALL,608MC3
92045-1305
$12.37
92046
BEARING-NEEDLE,HK1010FM
92046-1160
$16.58
92046A
BEARING-NEEDLE,6BTM109
92046-1217
$17.17
92049
SEAL-OIL,SB16244
92049-002
$8.86
92049A
SEAL-OIL,AG0353-F0
92049-1262
$6.57
92049B
SEAL-OIL,MHSD8X18X10J-1
92049-1366
$17.95
92049C
SEAL-OIL,BG1408F0
92049-1414
$5.52
92143
COLLAR
92143-1932
$20.52
92143A
COLLAR
92143-1933
$9.27
92151
BOLT,FLANGED,6X11
92151-1180
$2.46
610
ROLLER,4X8
610A0408
$4.31
