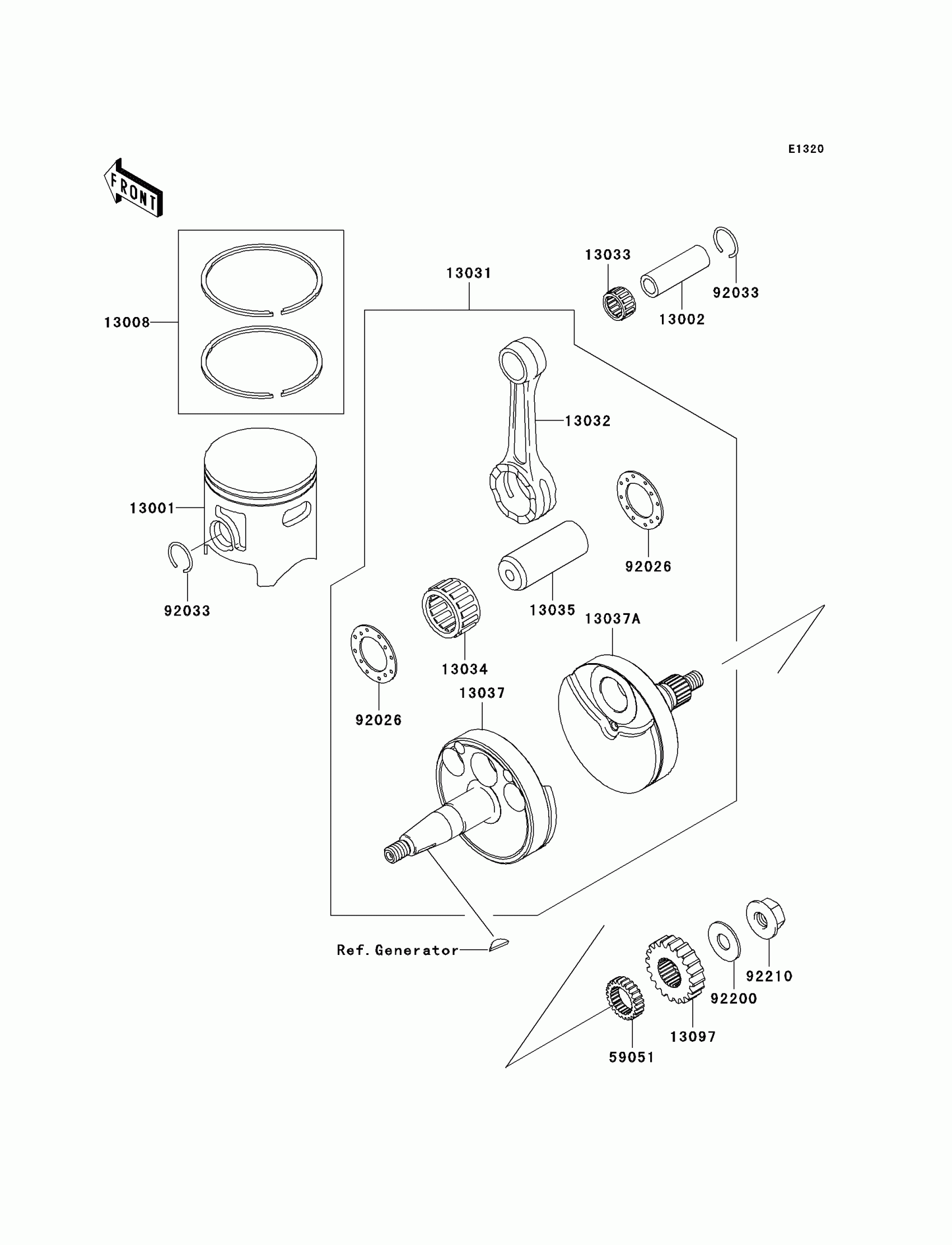

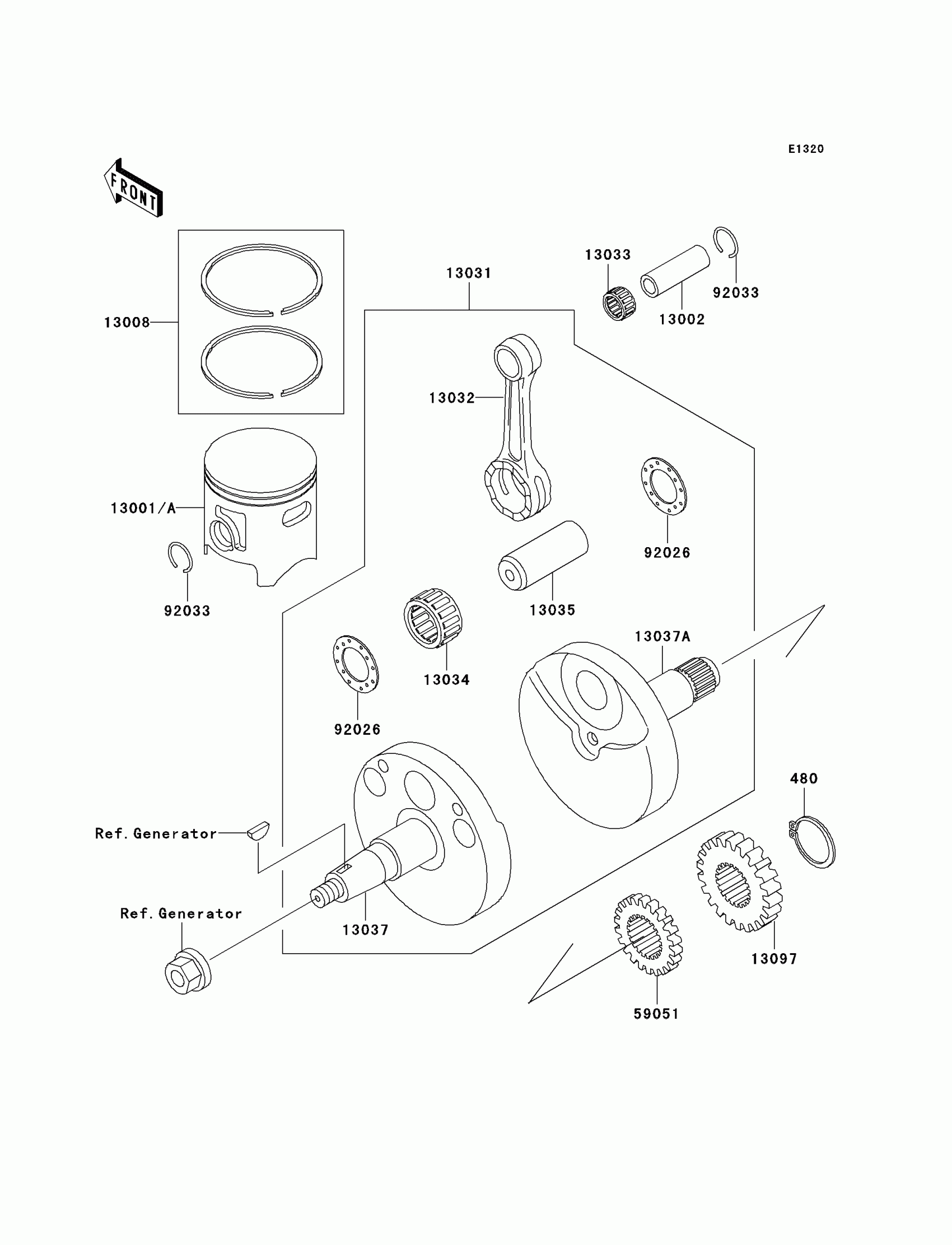

Kawasaki KX85 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,B

13001-0006

$104.50

13002

PIN-PISTON

13002-1079

$16.15

13008

RING-SET-PISTON

13008-1200

$54.29

13031

CRANKSHAFT-COMP

13031-0040

$359.10

13032

ROD-CONNECTING

13032-1230

$42.83

13033

BEARING-SMALL END

13033-1060

$21.85

13034

BEARING-BIG END,SKTZ 222916EGS

13034-0013

$35.67

13035

PIN-CRANK

13035-1054

Unavailable

13037

CRANKSHAFT,LH

13037-0050

$185.22

13037A

CRANKSHAFT,RH

13037-0051

$185.22

13097

GEAR-PRIMARY SPUR,20T

13097-1148

$78.57

59051

GEAR-SPUR,PUMP,23T

59051-1146

$30.38

92026

SPACER,22.2X37X1.0

92026-1136

$8.58

92033

RING-SNAP

92033-0005

$2.78

92200

WASHER,10.2X25X1.5

92200-0213

$3.90

92210

NUT,FLANGED,M10XL1.25

92210-0215

Unavailable
