1988 Kawasaki KX80 Rear Brake Diagram

← All diagrams

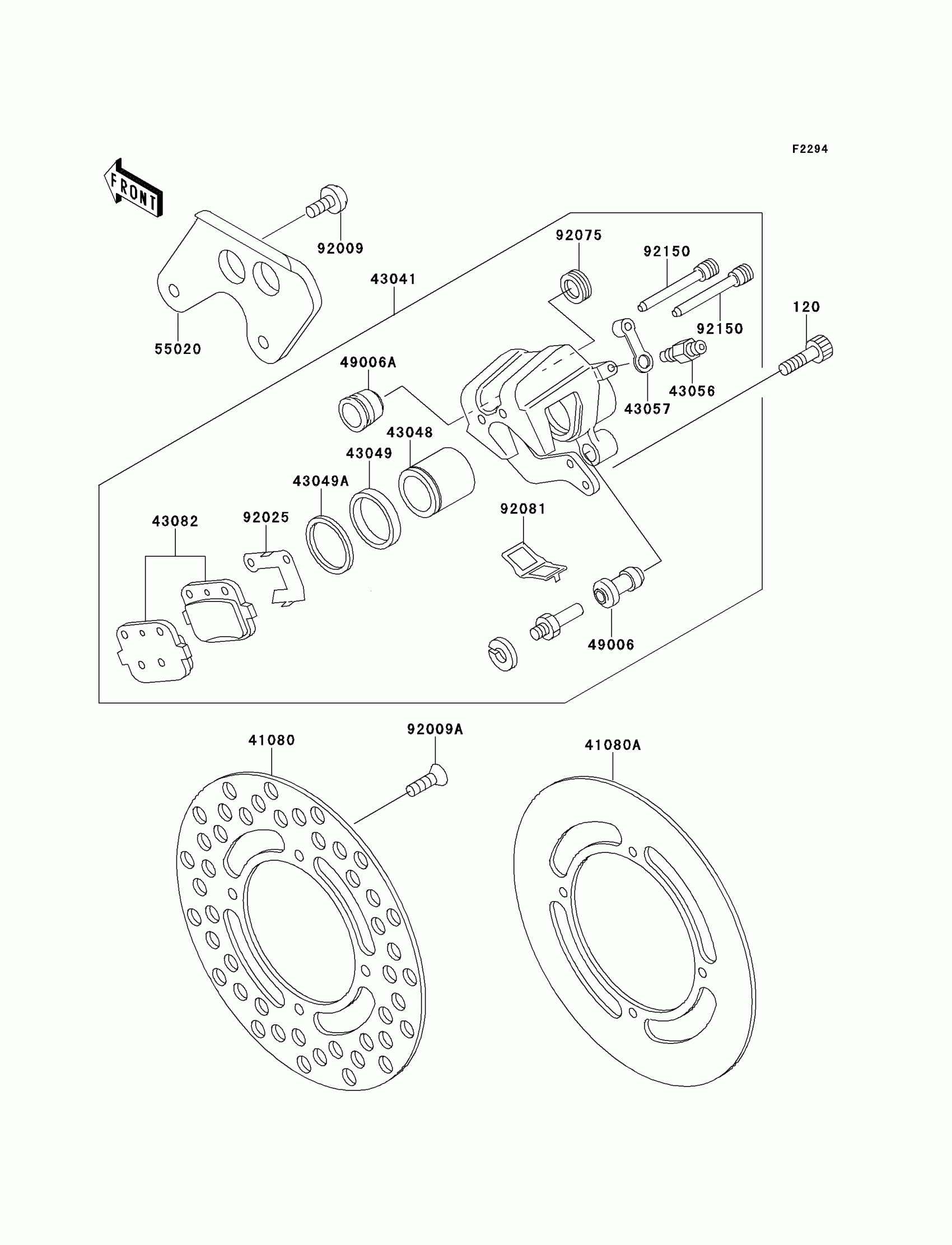

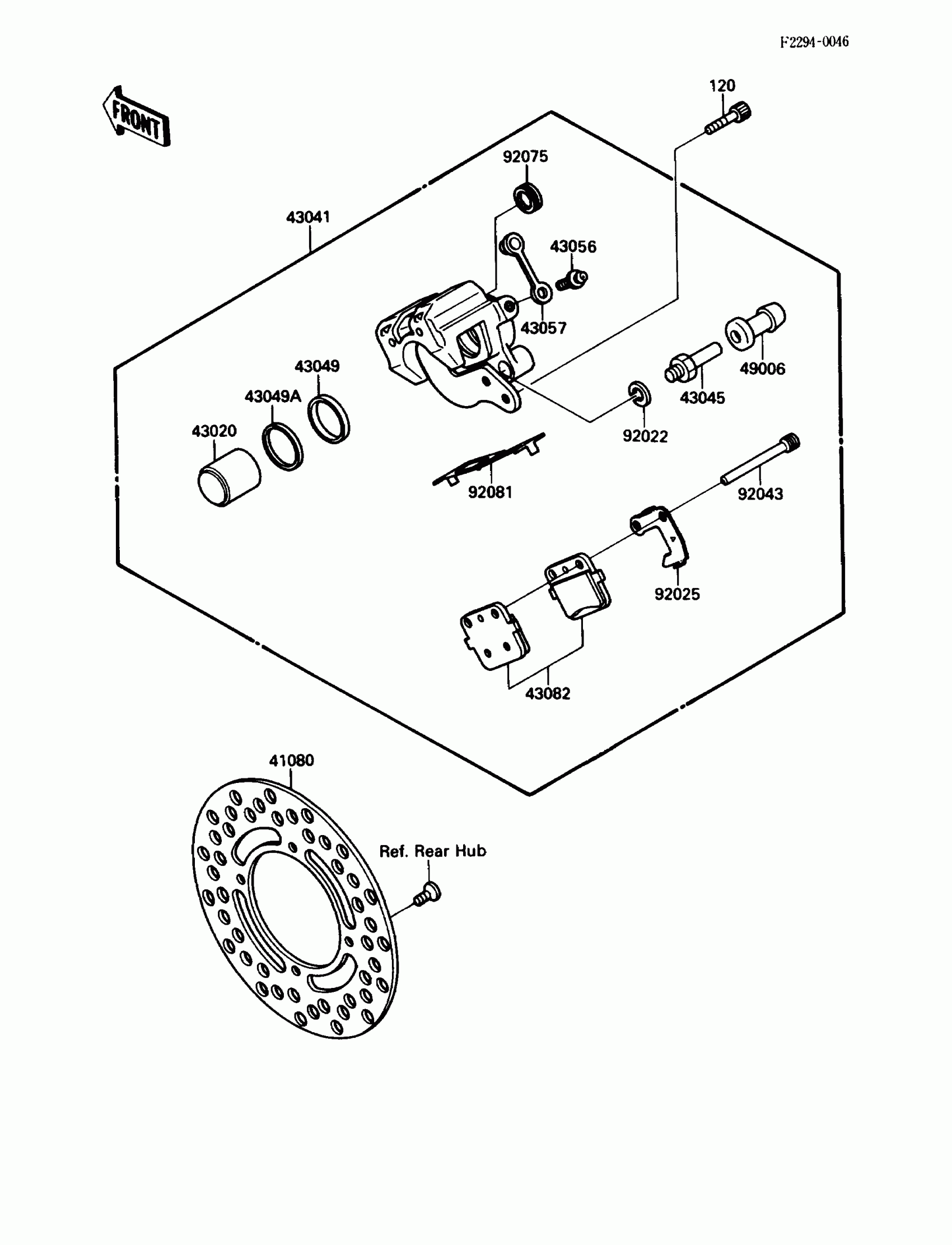

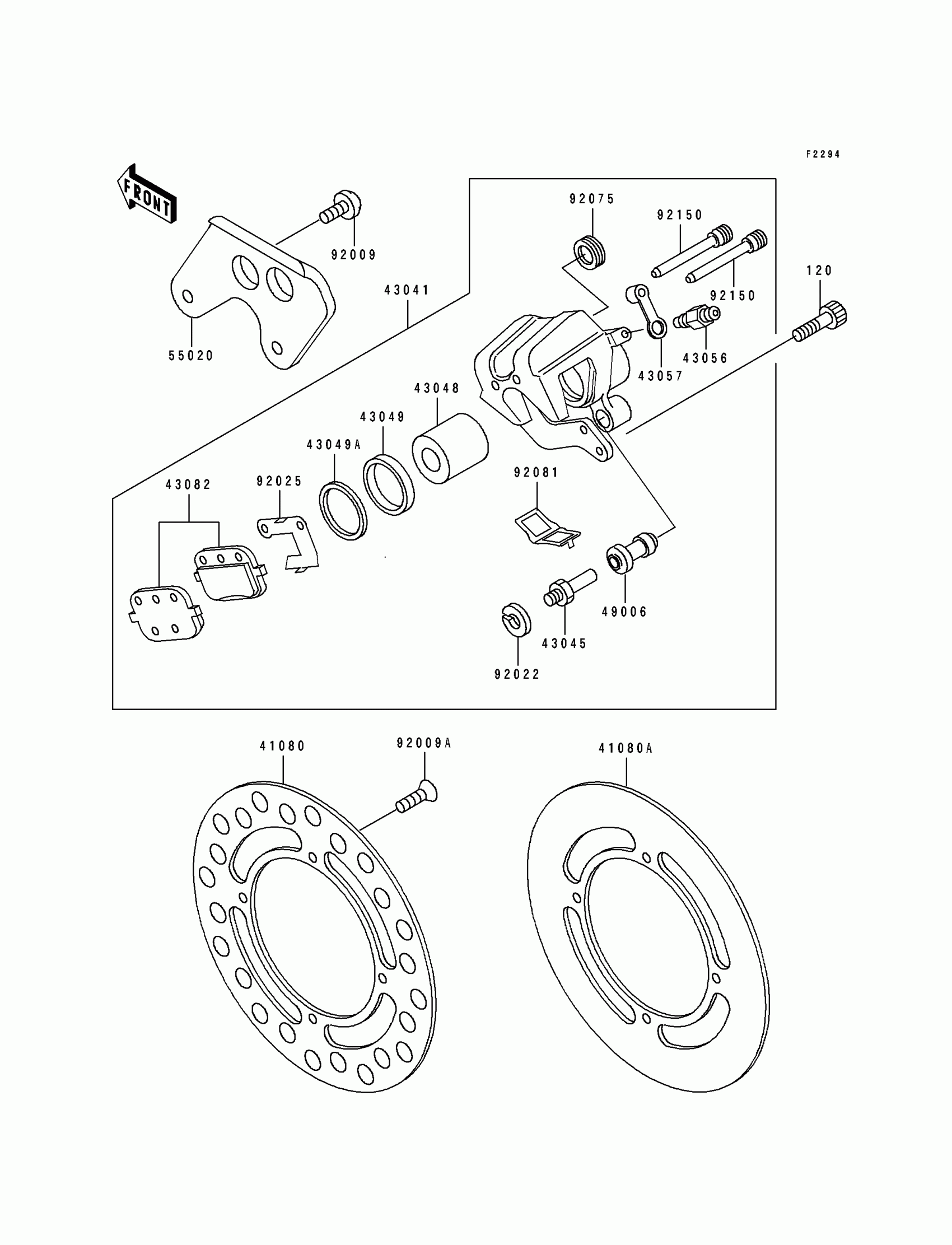

Find the part on the Rear Brake diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX80 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR

41080-1196

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1075

1

$61.70

In stock

43041

CALIPER-ASSY,RR

43041-1240

1

$345.38

In stock

43045

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER

43056-1052

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43082

PAD-ASSY-BRAKE

43082-1082

1

$46.05

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92025

SHIM,PAD

92025-1817

1
Out of stock

92043

PIN,PAD HOLDER

92043-1366

1

$7.86

In stock

92075

DAMPER

92075-1414

1

$7.25

In stock

92081

SPRING,PAD

92081-1502

1

$8.31

In stock

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock
