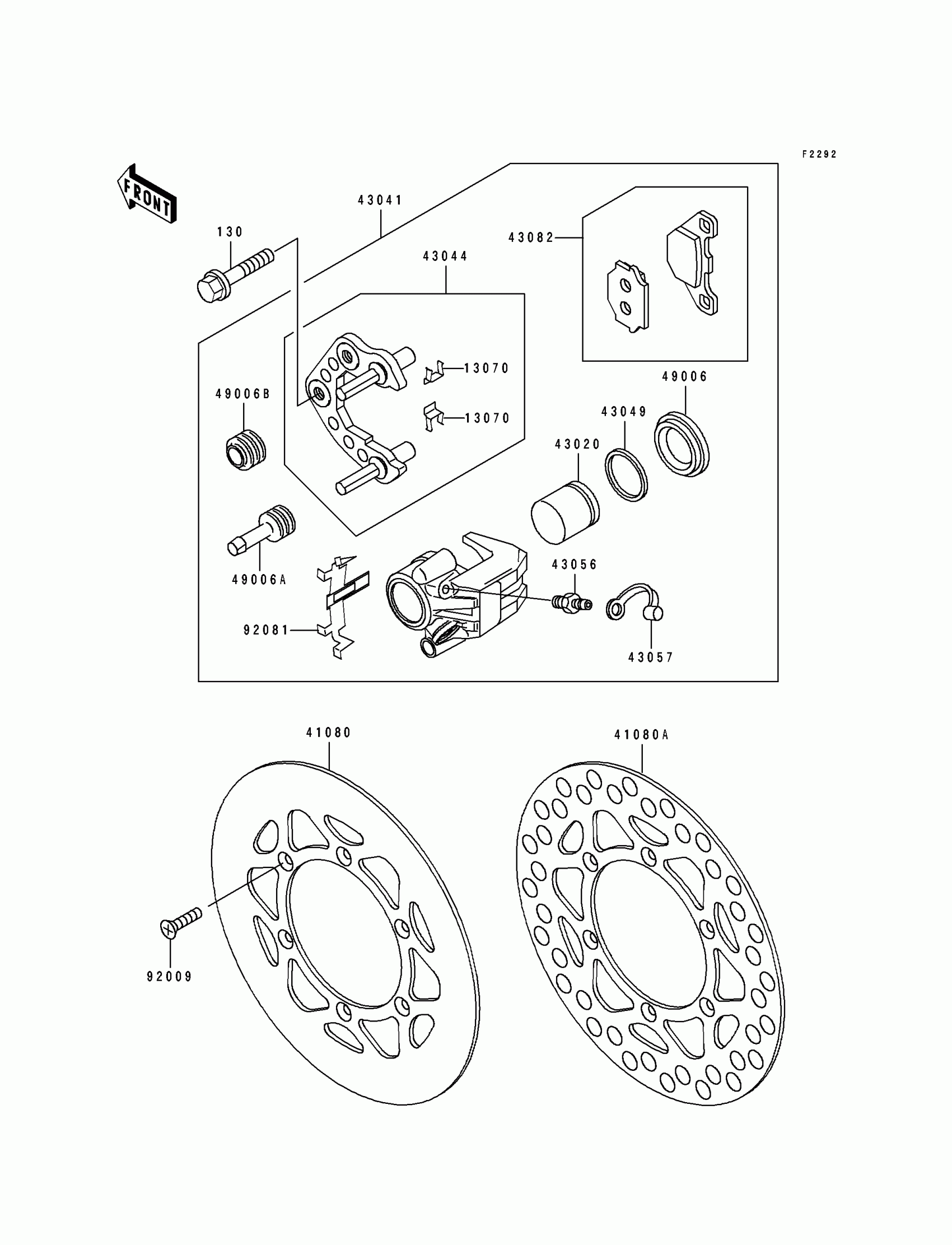

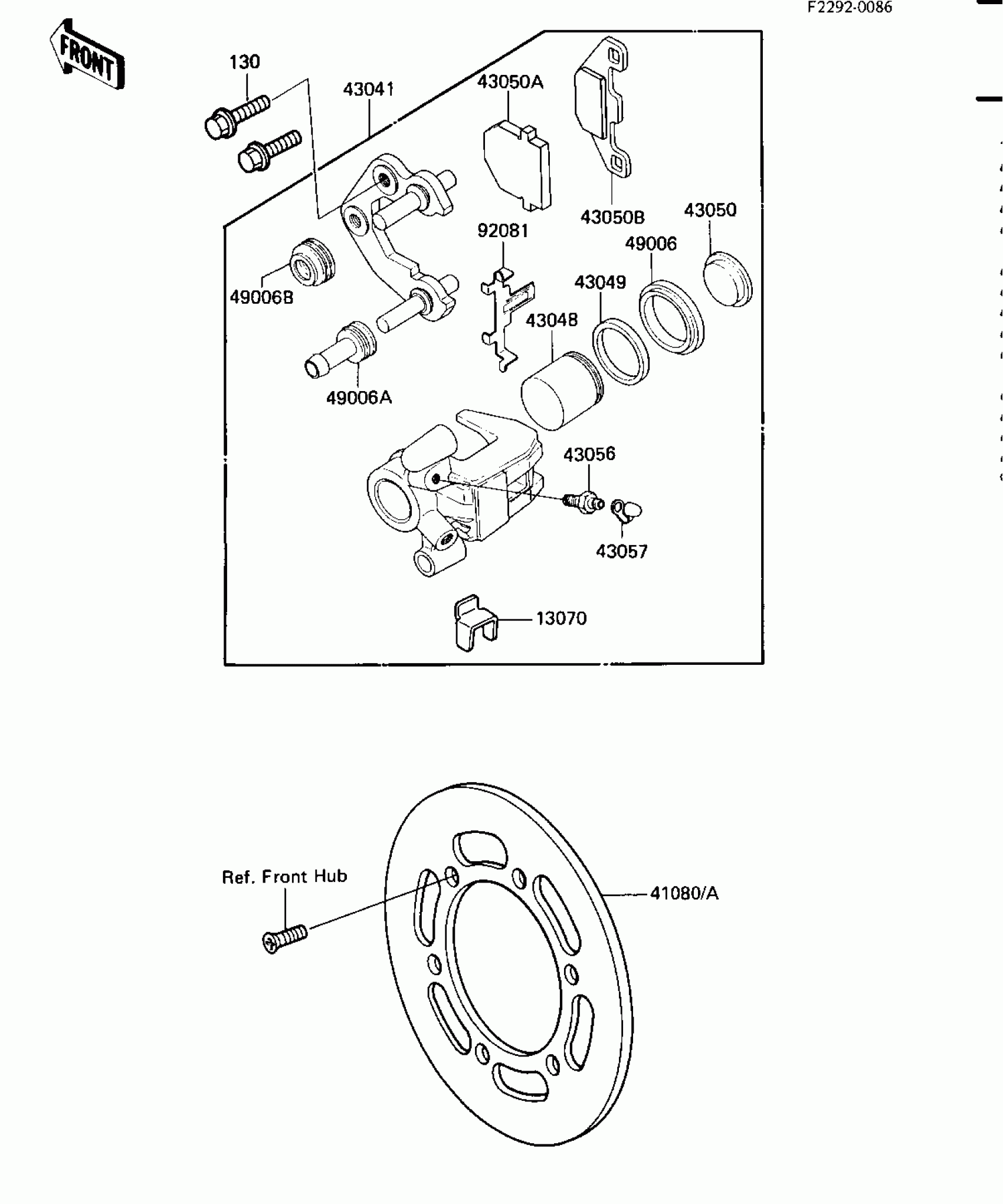

Kawasaki KX80 FRONT BRAKE Diagram

Description

Price

13070

GUIDE,PAD STOPPER

13070-1183

Unavailable

41080A

DISC,FR

41080-1160

$281.56

43041

CALIPER-ASSY

43041-1166

$422.89

43048

PISTON-CALIPER

43048-1008

$61.29

43049

PACKING

43049-1016

$7.91

43050

PAD-BRAKE

43050-1040

$13.54

43050A

PAD-BRAKE

43050-1043

$76.58

43050B

PAD-BRAKE

43050-1044

$76.58

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$8.83

49006B

BOOT,CALIPER

49006-1055

$5.55

92081

SPRING,PAD

92081-1341

$11.51

130

BOLT-FLANGED

130P0840

Unavailable
