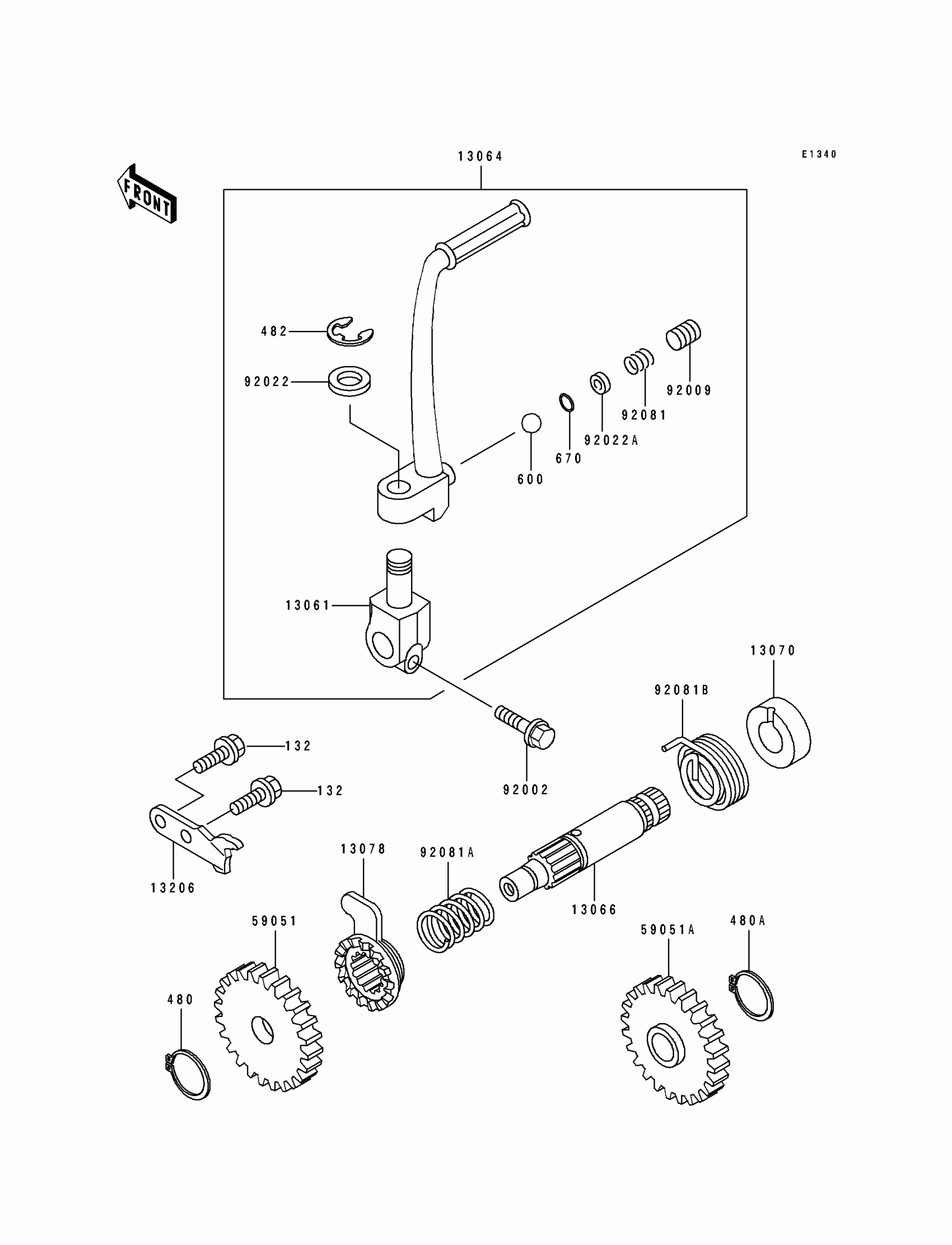

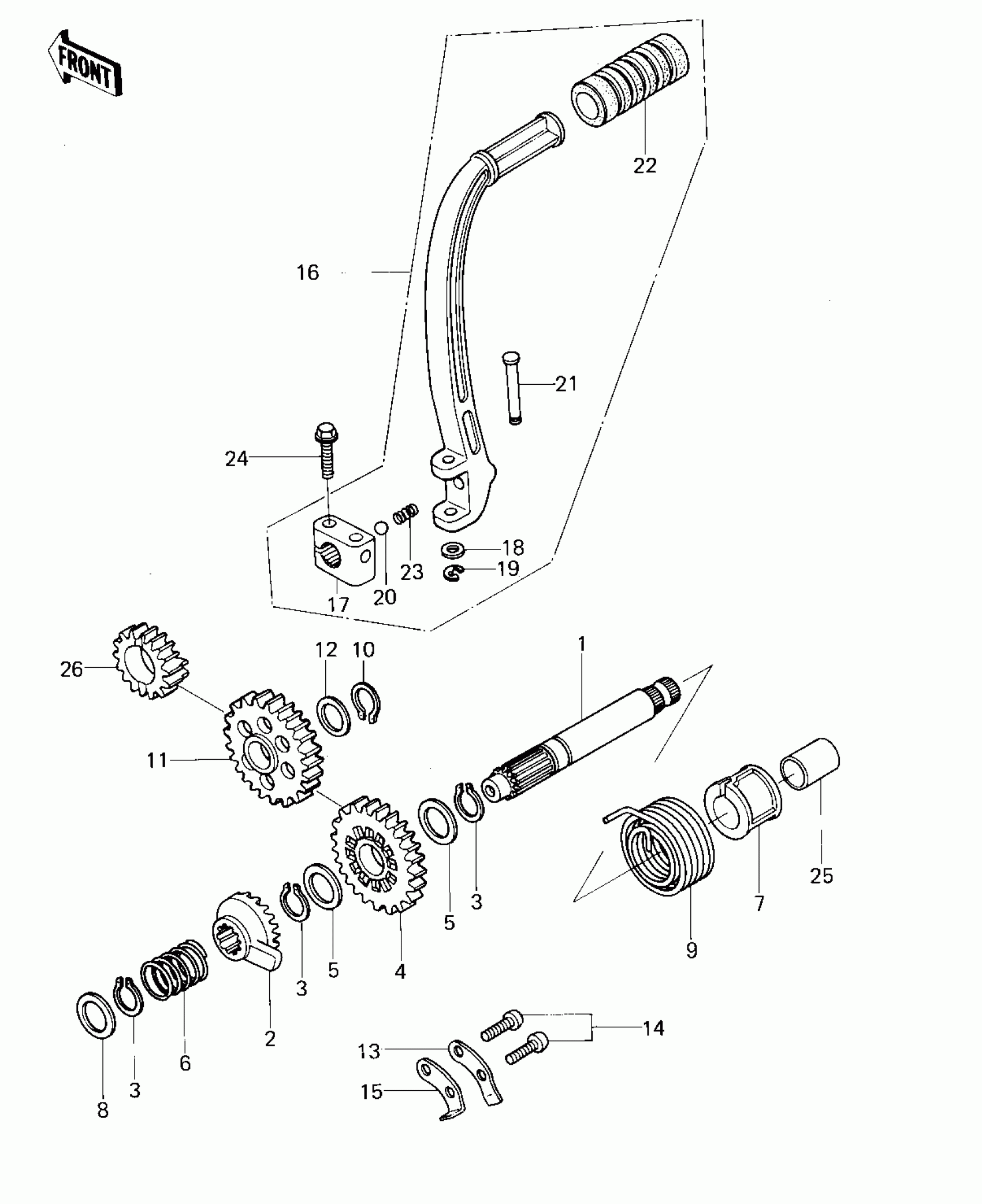

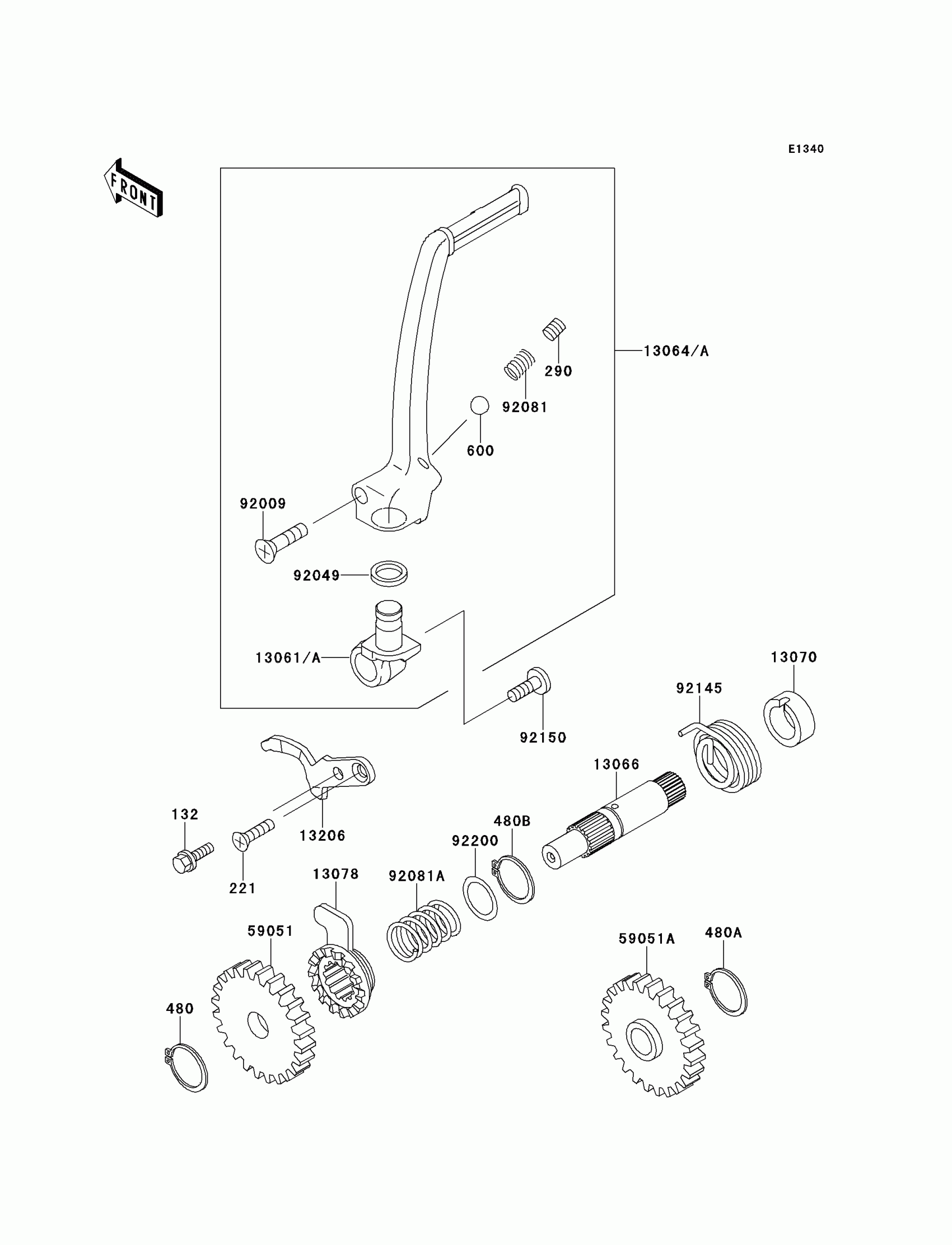

Kawasaki KX80 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
SHAFT,KICK
13066-1008
Unavailable
2
RATCHET
13078-1001
Unavailable
3
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
4
GEAR,KICK,31T
59051-1015
Unavailable
5
WASHER,16.8X22X0.5
92022-315
Unavailable
6
SPRING,RATCHET
92081-122
Unavailable
7
GUIDE,KICK
13070-1018
Unavailable
8
WASHER,12.3X20X0.5
92022-269
Unavailable
9
SPRING,KICK
92081-1108
Unavailable
10
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
10
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
11
GEAR,IDLE,31T
59051-1014
Unavailable
12
SPACER,15X21X0.5
92026-1035
Unavailable
13
GUIDE-KICK
13206-1002
Unavailable
14
SCREW-PAN-CROS,6X16
220B0616
Unavailable
15
STOPPER,KICKSTARTER
32085-1027
Unavailable
16
PEDAL ASSY,KICK
13064-1010
Unavailable
17
BOSS,KICK PEDAL
13061-1021
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
19
CIRCLIP 5MM
482K5000
Unavailable
20
BALL-STEEL,1/4
600A0800
Unavailable
21
PIN,KICK PEDAL
92043-1050
Unavailable
22
DAMPER RUBB,GEAR CHNG
92075-1021
Unavailable
23
SPRING,KICK PEDAL
92081-020
Unavailable
24
BOLT,FLANGED,6X22
92001-1352
Unavailable
25
BOOT,KICK SHAFT
49006-1023
Unavailable
26
GEAR,KICK PINION,18T
59051-1013
Unavailable
