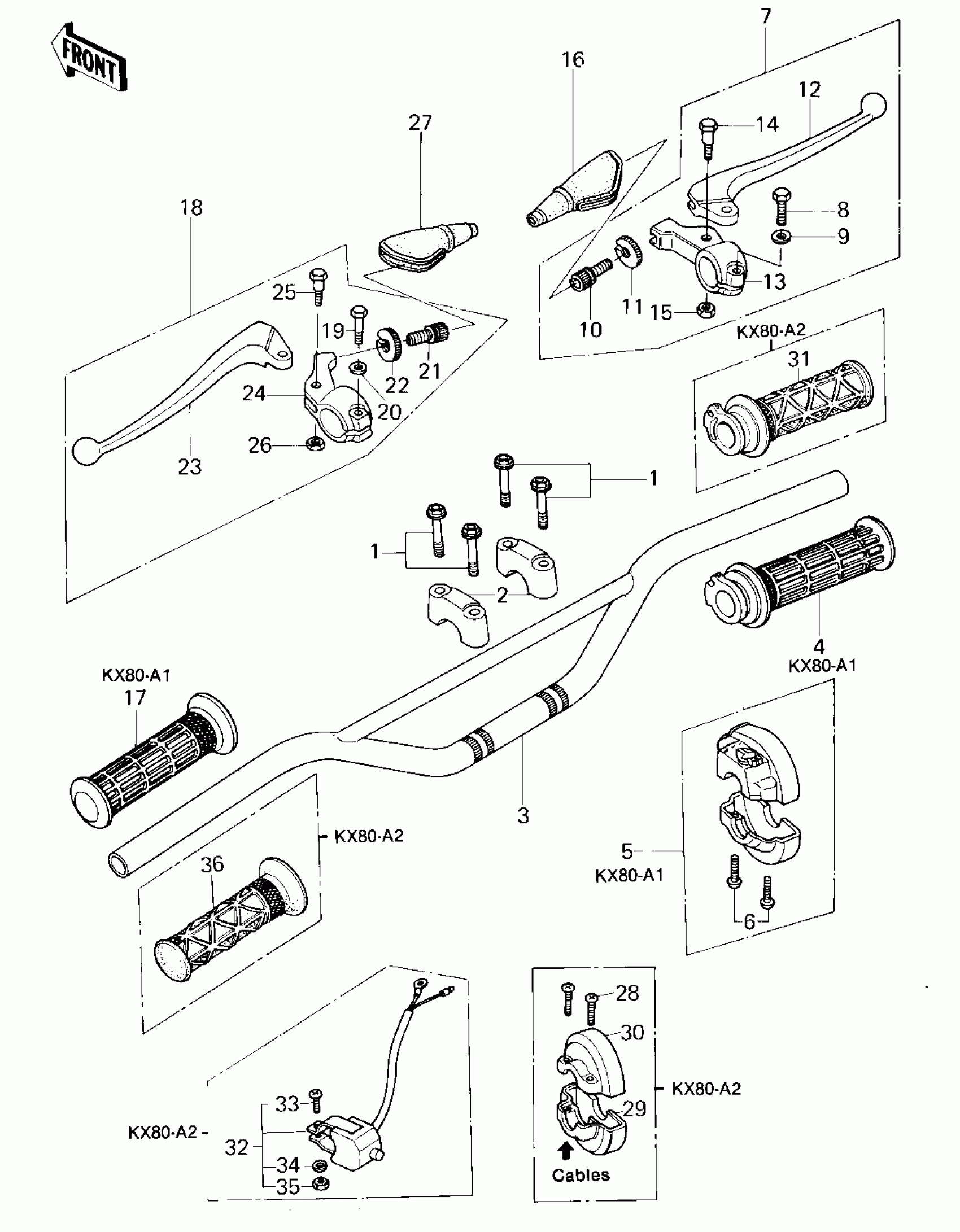

Kawasaki KX80 HANDLEBAR Diagram
#
1
BOLT-FLANGED,8X35
130G0835
Unavailable
2
HOLDER-HANDLE,UPP
46012-008
Unavailable
3
HANDLEBAR,FLAT BLACK
46003-1053
Unavailable
3
HANDLEBAR,FLAT BLACK
46003-1053
Unavailable
4
GRIP-ASSY,THROTTLE
46019-1005
Unavailable
5
HOUSING-ASSY-CONTROL,RH
46091-1041
Unavailable
6
SCREW, PAN HEAD, 5 X 18
220B0518A
Unavailable
7
LEVER ASSY,FRNT BRAKE
46021-025
Unavailable
8
BOLT HEX HEAD 6X25
110N0625
Unavailable
9
WASHER,PLAIN,6MM
410D0600
Unavailable
10
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
11
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
12
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
13
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-011-21
Unavailable
14
BOLT,5X22
92007-046
Unavailable
15
NUT,LOCK,5MM
92019-014
Unavailable
16
BOOT,LEVER HOLDER
49006-1017
Unavailable
17
GRIP,LH
46075-1004
Unavailable
18
LEVER ASSY,CLUTCH
46076-045
Unavailable
19
BOLT HEX HEAD 6X25
110N0625
Unavailable
20
WASHER,PLAIN,6MM
410D0600
Unavailable
21
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
22
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
23
LEVER-GRIP,CLUTCH
46092-015
Unavailable
24
HOLDER,CLUTCH LEVER,F.BLACK
46094-015-21
Unavailable
25
BOLT,5X22
92007-046
Unavailable
26
NUT,LOCK,5MM
92019-014
Unavailable
27
BOOT,LEVER HOLDER
49006-1017
Unavailable
28
SCREW PAN HEAD 5X20
220B0520A
Unavailable
29
HOUSING CONTROL,R.H.
32099-1011
Unavailable
30
CASE,R.H,GRIP,UPPER
32099-1014
Unavailable
31
GRIP-ASSY
46019-1012
Unavailable
32
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
33
SCREW PAN HEAD 3X14
220E0314A
Unavailable
34
WASHER SPRING 3MM
461F0300
Unavailable
35
NUT-HEX
311B0300
Unavailable
36
GRIP
46075-1015
Unavailable
