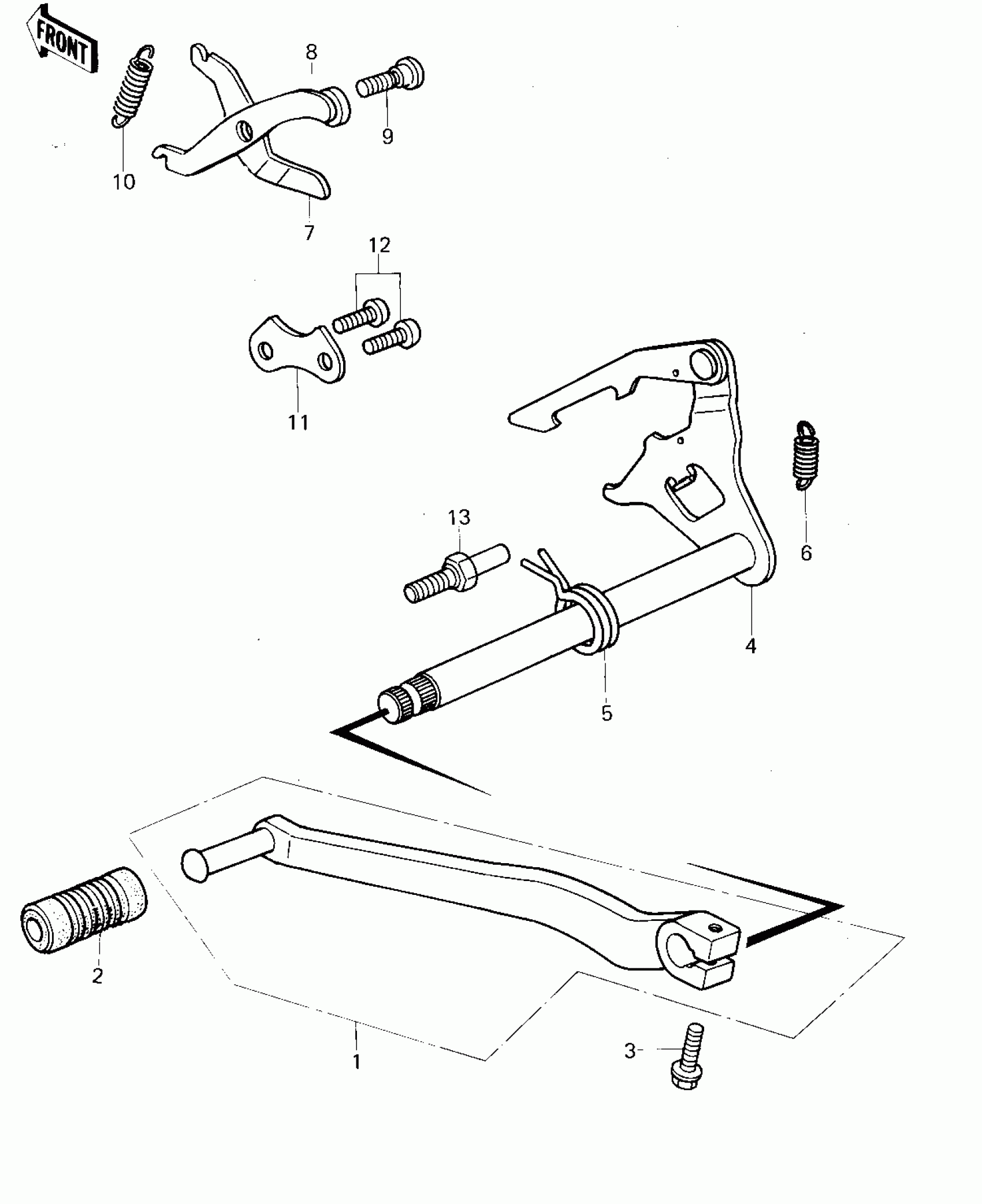

Kawasaki KX80 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

PEDAL ASSY,GEAR CHANG

13156-1018

Unavailable

2

DAMPER,CHANGE PEDAL

92160-1108

Unavailable

3

BOLT,FLANGED,6X22

92001-1352

Unavailable

4

LEVER ASSY,GEAR CHANG

13161-1010

Unavailable

5

SPRING,TENSION

92081-1129

Unavailable

6

SPRING,NEUTRAL POSITION

92081-156

Unavailable

7

LEVER,GEAR SET

13168-1038

Unavailable

8

LEVER,NEUTRAL

13236-1009

Unavailable

9

SCREW,6MM

92011-023

Unavailable

10

SPRING,CHANGE LEVER

92081-1109

Unavailable

11

PLATE,CHANGE DRUM

13169-1132

Unavailable

12

SCREW-PAN-CROS,6X14

220B0614

Unavailable

13

BOLT,RETURN SPRING

92001-1401

Unavailable
