1988 Kawasaki KX80 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

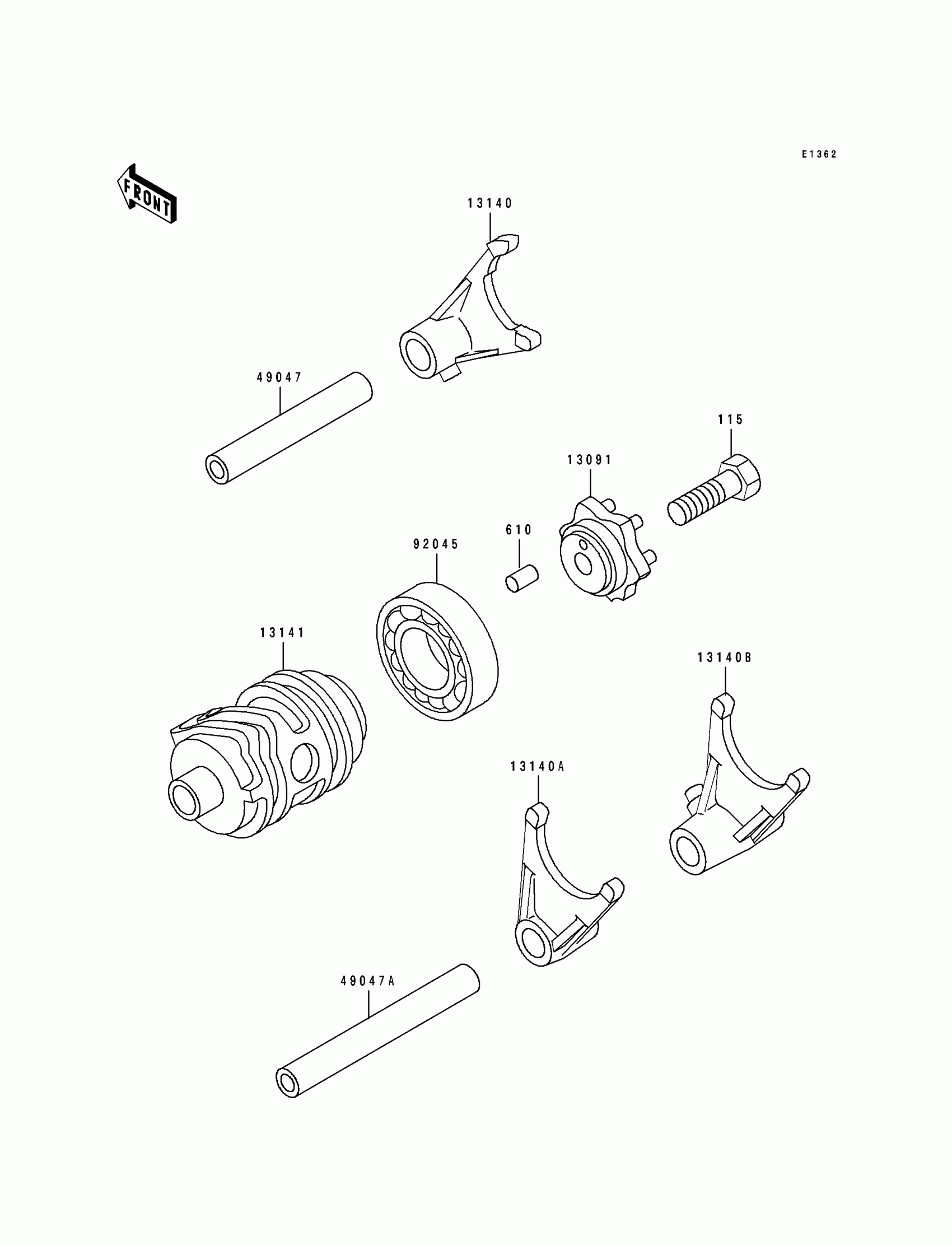

1988 Kawasaki KX80 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1390

1

$59.58

In stock

13140

FORK-SHIFT,5TH&6TH

13140-1139

1
Out of stock

13140A

FORK-SHIFT,2ND&3RD

13140-1140

1
Out of stock

13140B

FORK-SHIFT,LOW&4TH

13140-1141

1
Out of stock

13141

DRUM-CHANGE

13141-1120

1

$105.99

In stock

49047

1

$15.29

In stock

49047A

ROD-SHIFT,5.9X10X81

49047-1064

1

$16.34

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

115

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
