1980 Kawasaki KX80 Clutch Diagram

← All diagrams

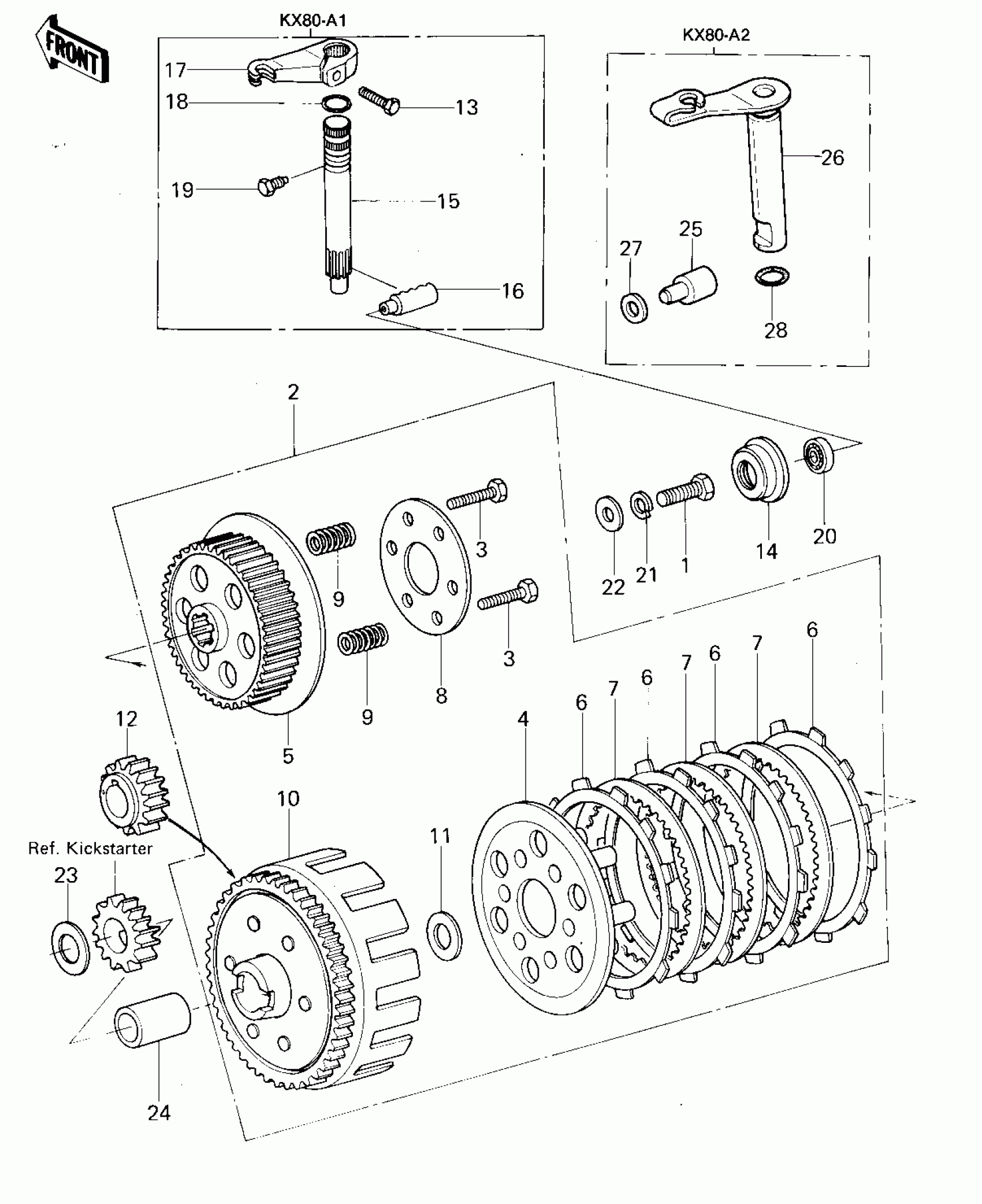

Find the part on the Clutch diagram for your 1980 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KX80 Clutch Diagram

#

Description
Price
Status
Order Qty

1

BOLT,8X20

115G0820

Out of stock

2

CLUTCH-ASSY

13081-1028

Out of stock

2

CLUTCH-ASSY

13081-1028

Out of stock

3

BOLT-UPSET

112G0516

Out of stock

3

BOLT

110G0520

Out of stock

4

WHEEL-CLUTCH

13086-1002

$45.84

In stock

5

HUB-CLUTCH

13087-1113

Out of stock

6

PLATE-FRICTION

13088-1010

$10.86

In stock

7

PLATE-CLUTCH,STEEL

13089-1009

$11.12

In stock

8

$17.20

In stock

9

SPRING,CLUTCH

92081-1143

$4.60

In stock

9

SPRING,CLUTCH

92081-1175

$4.88

In stock

10

HOUSING,CLUTCH

13095-1018

Out of stock

10

HOUSING,CLUTCH

13095-1018

Out of stock

11

SPACER,17X30X2

92026-1034

$1.56

In stock

12

GEAR,PRIMARY,22T

13097-1015

Out of stock

12

GEAR,PRIMARY

13097-1021

Out of stock

13

BOLT-UPSET

112G0618

Out of stock

14

HOLDER,CLUTCH PUSHER

13091-1038

Out of stock

15

SHAFT,CLUTCH RELEASE

13106-1003

Out of stock

16

PUSHER,CLUTCH

13114-1003

Out of stock

17

LEVER,CLUTCH RELEASE

13168-1023

Out of stock

18

O RING,9MM

670B1509

$2.92

In stock

19

BOLT,CLUTCH RELEASE

92003-130

Out of stock

20

BEARING-BALL

92045-1211

$9.41

In stock

21

WASHER SPRING 8MM

461F0800

Out of stock

22

WASHER,8.5X20X1.6

92022-1561

$3.43

In stock

23

WASHER,17.3X28X1

92022-255

Out of stock

24

BUSHING,CLUTCH

92028-1057

$17.46

In stock

25

PUSHER,CLUTCH

13114-1004

Out of stock

26

LEVER,CLUTCH RELEASE

13236-1019

Out of stock

27

$1.19

In stock

28

RING-O,8.8X1.9

92055-099

$3.72

In stock
