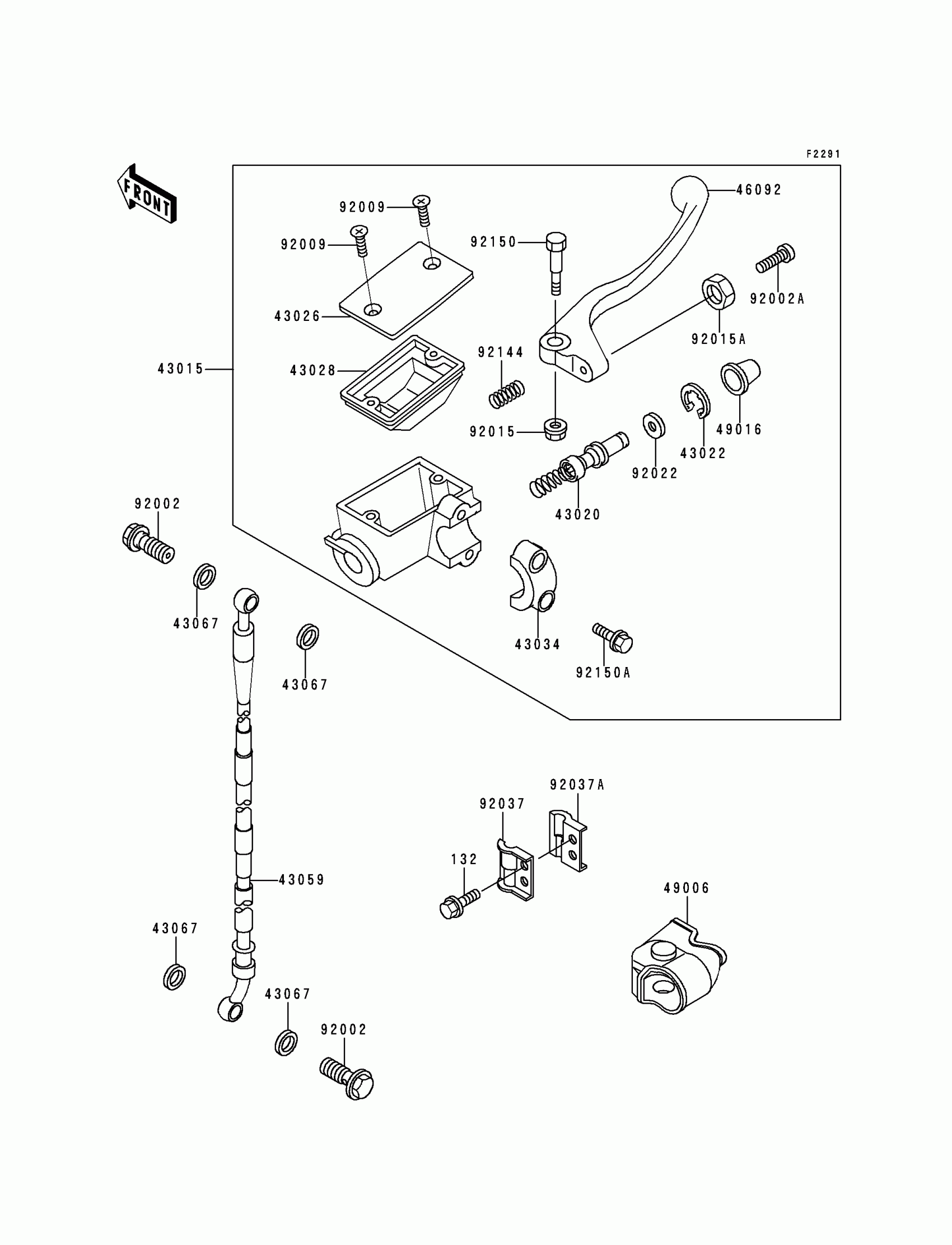

Kawasaki KX80 Front Master Cylinder(KX80-R6) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

43015

CYLINDER-ASSY-MASTER,FR

43015-1574

Unavailable

43020

PISTON-COMP-BRAKE

43020-1109

$57.35

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43034

HOLDER-BRAKE

43034-1110

$19.45

43059

HOSE-BRAKE,FR

43059-1672

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

46092

LEVER-GRIP,FRONT BRAKE

46092-1186

$24.35

49006

BOOT,FRONT BRAKE LEVER

49006-1286

$14.63

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,OIL,L=23

92002-1888

$5.48

92002A

BOLT,ADJUST

92002-1893

$7.45

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92015A

NUT,ADJUST

92015-1642

$3.92

92022

WASHER

92022-1814

$4.69

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$7.34

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$7.34

92144

SPRING,RETURN

92144-1725

$9.58

92150

BOLT,LEVER SET

92150-1451

$14.23

92150A

BOLT

92150-1452

$5.52
