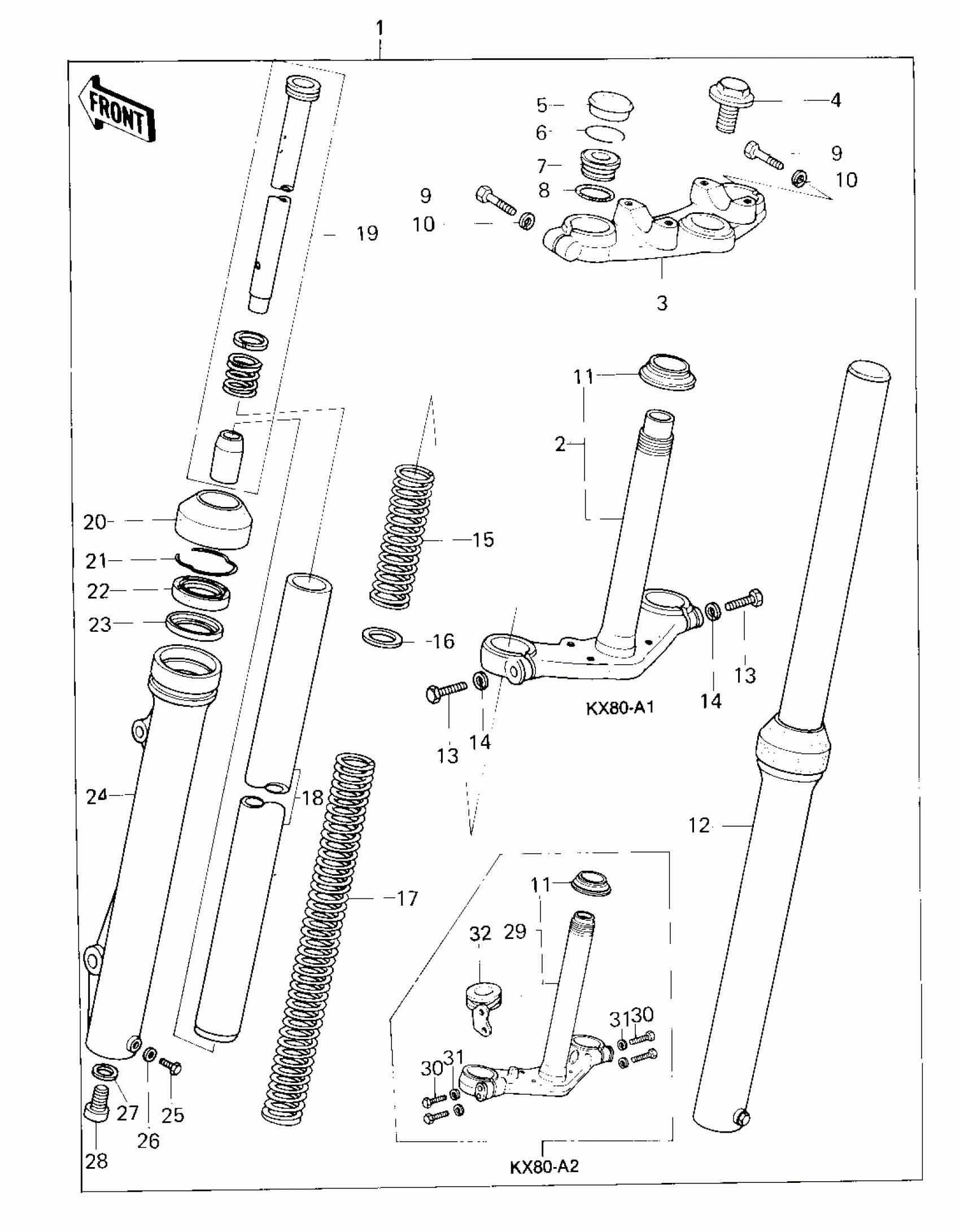

Kawasaki KX80 FRONT FORK Diagram
#
1
FORK-FRONT
44001-1043
Unavailable
1
FORK-FRONT
44001-1122
Unavailable
2
STEM,STEERING
44037-1011
Unavailable
3
HEAD,STEERING STEM
44039-1016
Unavailable
4
BOLT,STEERING STEM
92001-1318
Unavailable
5
CAP,RUBBER,FORK TOP
11012-1067
Unavailable
6
RING-SNAP
44044-023
Unavailable
7
SEAT-FORK SPRING
44029-022
Unavailable
8
RING-O
44046-025
Unavailable
9
BOLT,8X40
92001-1063
Unavailable
10
WASHER SPRING 8MM
461F0800
Unavailable
11
RACE,STEERING STEM BEARING
92047-010
Unavailable
12
TUBE,RH,FORK OUTER
44006-1019
Unavailable
12
TUBE,RH,FORK OUTER
44006-1040
Unavailable
13
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
14
WASHER SPRING 10MM
461F1000
Unavailable
15
SPRING,FORK INNER,UPP
44026-1025
Unavailable
15
SPRING,FORK INNER,UP
44026-1047
Unavailable
16
GUIDE,FORK SPRING
44028-1002
Unavailable
17
SPRING,FORK INNER,LOW
44026-1023
Unavailable
17
SPRING,FORK INNER,LOW
44026-1046
Unavailable
18
TUBE,FORK INNER
44013-1016
Unavailable
18
TUBE,FORK INNER
44013-1031
Unavailable
19
CYLINDER-FORK
44022-1017
Unavailable
19
CYLINDER-FORK
44022-1035
Unavailable
20
DUST SHIELD,FORK OUT
92093-1019
Unavailable
21
RING-SNAP,FORK OUTER TUBE
92033-1028
Unavailable
22
SEAL-OIL,FORK OUTER TUBE
92049-1069
Unavailable
23
SPACER,FORK OUTER
92026-1041
Unavailable
24
TUBE,LH,FORK OUTER
44005-1019
Unavailable
24
TUBE,LH,FORK OUTER
44005-1040
Unavailable
25
BOLT HEX HEAD 6X8
110B0608
Unavailable
26
GASKET,DRAIN PLUG
44045-047
Unavailable
27
GASKET,FORK CYLINDER BOLT
44045-051
Unavailable
28
BOLT,FORK CYLINDER
44041-078
Unavailable
29
STEM,STEERING
44037-1037
Unavailable
30
BOLT,8X40
92001-1063
Unavailable
31
WASHER SPRING 8MM
461F0800
Unavailable
32
CLAMP,CABLE
92072-1039
Unavailable
