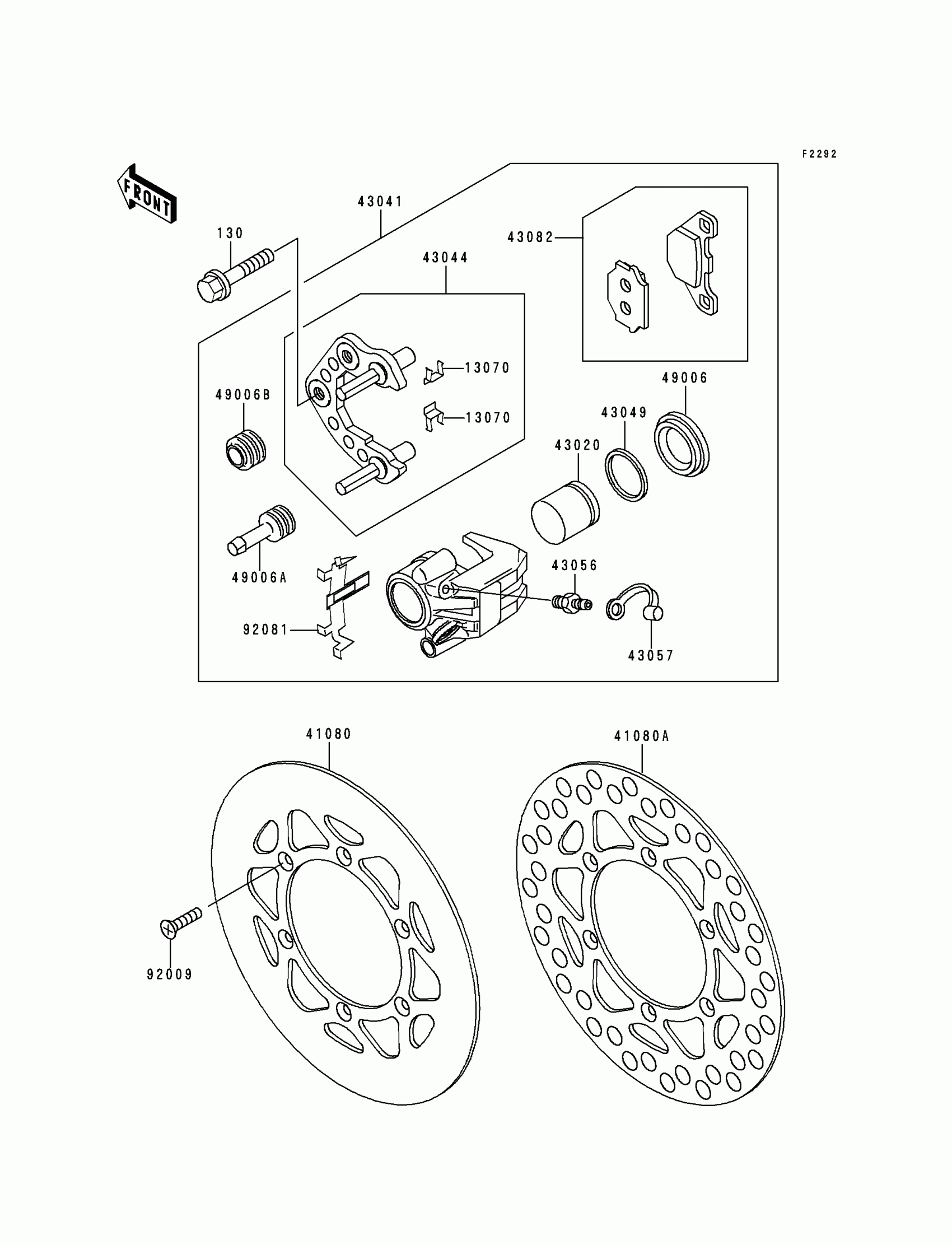

Kawasaki KX80 Front Brake(KX80-R6) Diagram

Description

Price

130

BOLT-FLANGED

130P0840

$1.44

13070

GUIDE,PAD STOPPER

13070-1183

Unavailable

41080

DISC,FR

41080-1330

Unavailable

41080A

DISC,FR

41080-1335

Unavailable

43020

PISTON-COMP-BRAKE

43020-1091

$61.19

43041

CALIPER-ASSY,FR

43041-1530

$335.83

43044

HOLDER-COMP-CALIPER,FR

43044-1051

$121.40

43049

PACKING

43049-1016

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1164

Unavailable

49006

BOOT,PISTON SEAL

49006-1053

$21.93

49006A

BOOT,CALIPER

49006-1054

$11.61

49006B

BOOT,CALIPER

49006-1055

$7.27

92009

SCREW,6X10

92009-1375

$3.92

92081

SPRING,PAD

92081-1341

$14.76
